Manual

Installation and Maintenance of

A.R.I.’s K-060

Combi

nation Air Valves

B. Basic, Periodic, Maintenance

B.1

Shut the isolating valve below the air valve.

B.2 Unscrew the bolts (2) that connect the

valve cover (3) to its body (9).

B.3 Wash the body , the screen and the cover in

clean water in order to remove coarse

grime or accumulated scale.

B.4 Check body & cover coating for rust points.

Recoat if necessary

A. Installation

B.5 Reinstall

in reverse order and fasten and

tighten all bolts.

A.1 The air valve will be

mounted on a riser,

connected to the top of the

pipe.

B.6

Open the isolating valve beneath the air

valve.

A.2 An isolating valve will be

installed below the air

valve.

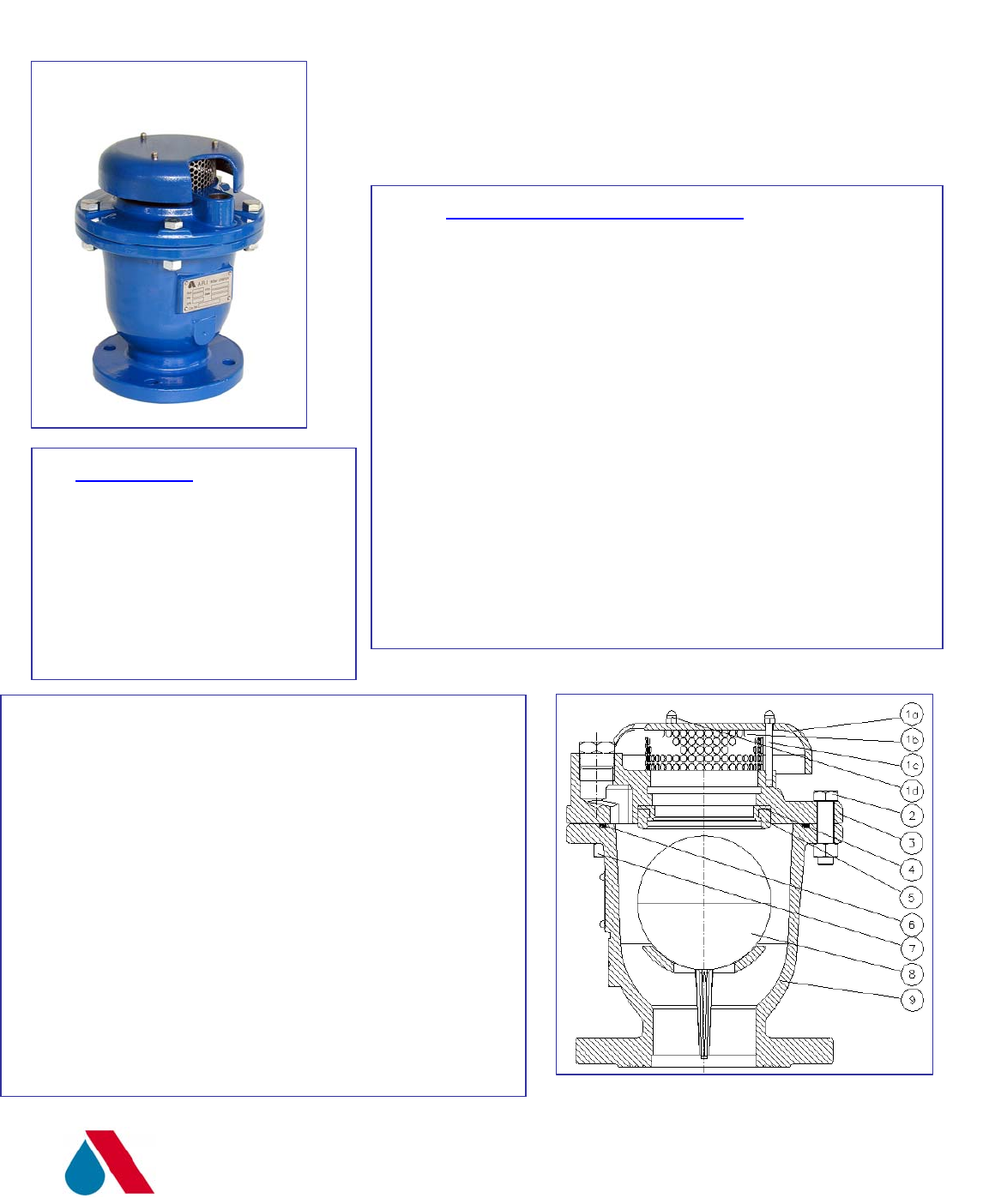

Parts Specification

1a. Protective Cover Cast Iron

1b. Filter Stainless Steel SAE 304

1c. Bolt & Nut Galvenized Steel

1d. Crown Nut Galvenized Steel

2. Bolt Galvenized Steel

3. Cover Cast Iron ASTM A48

4. Nozzle Seat St.St. SAE 403 or 316

5. Nozzle Seal E.P.D.M.

6. O-ring Buna- N

7. Nut Galvenized Steel

8. Float Stainless Steel SAE 316L

9. Body Cast Iron ASTM A48

A.R.I FLOW CONTROL ACCESSORIES

PAGE 1
