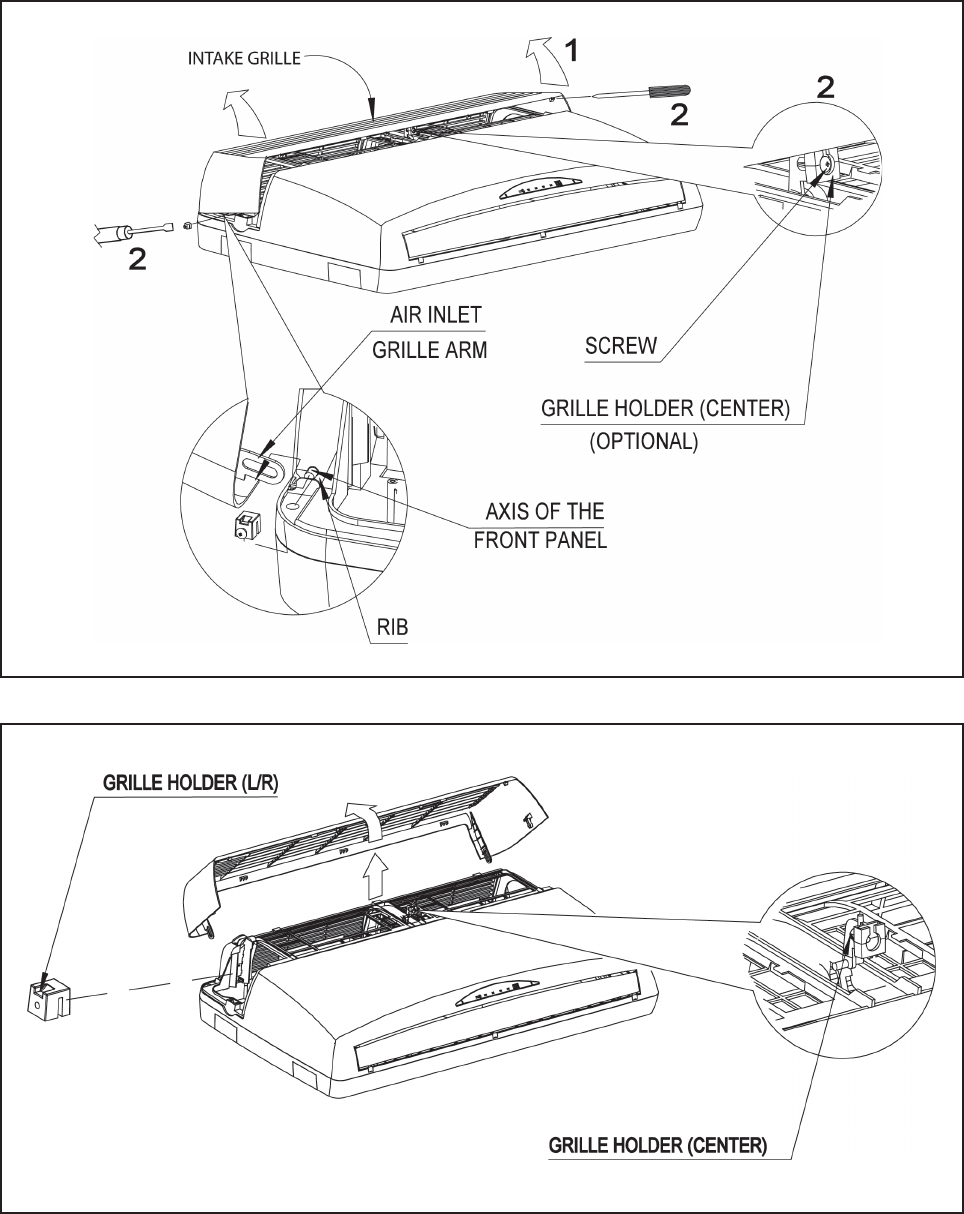

How to Remove the Air Inlet Grille
1. Remove the air inlet grille by both hands as the direction shown.
2. Loosen the screws for fixing the panel arm (3 screws - Left, Right and Center). Do not remove the
screws at this time.
3. Move the air inlet grille upward, and then turn it backwards. (Do not use too much force).
4. Remove the grille holder (both left and right side). After that, remove the air intake grille.
5. Remove the grille holder (center) from the panel.
