PULL-DOWN KITCHEN FAUCET
Installation Instructions

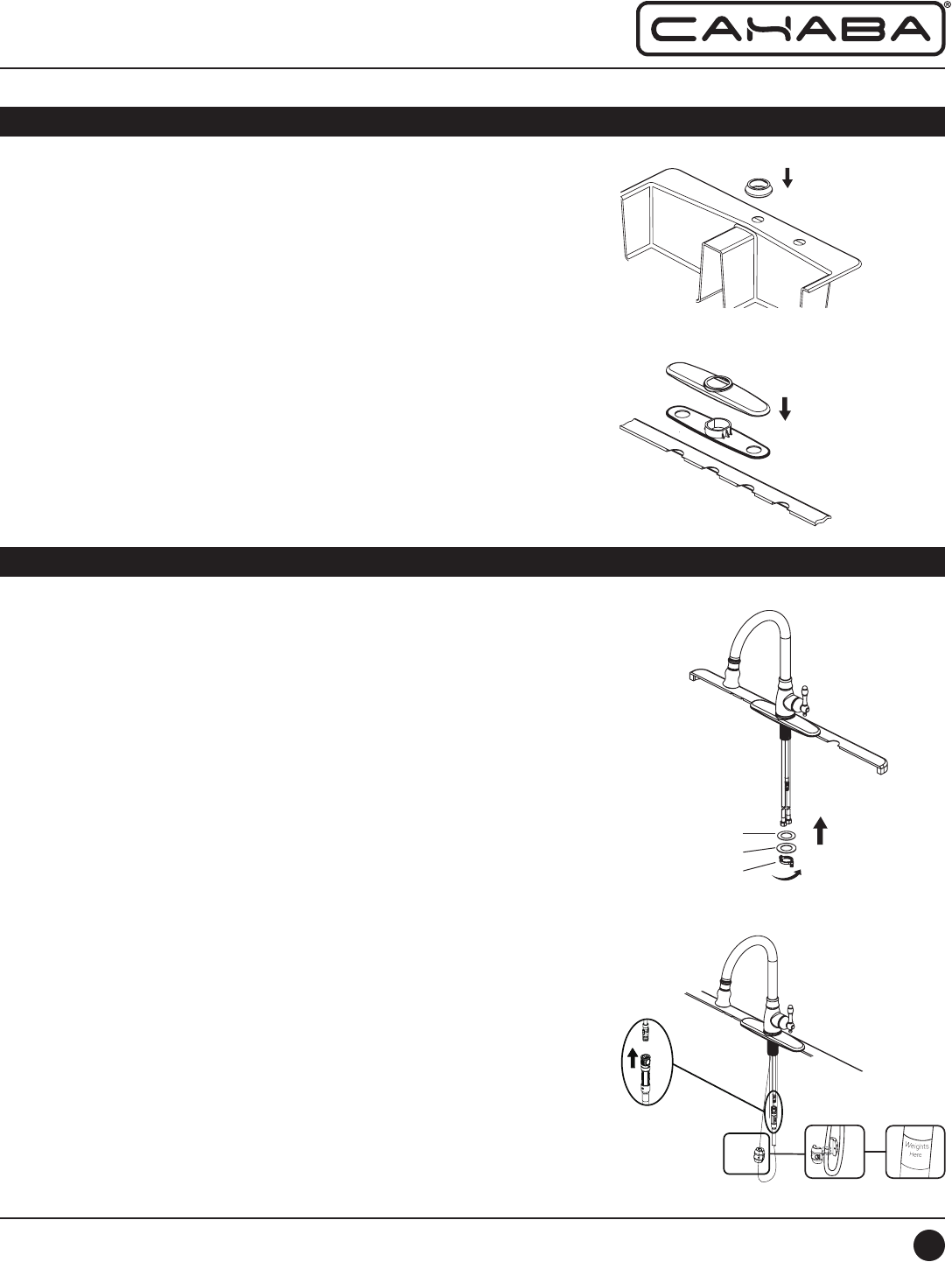

DETERMINE INSTALLATION PREFERENCES
This faucet can be installed as 4 hole installation with the escutcheon or
as 2 hole installation with ange.
FLANGE INSTALLATION:
1. Shut off water supplies & remove old faucet.
2. Place ange on the sink.
3. Insert faucet body through the hole in the ange.
ESCUTCHEON INSTALLATION:
1. Shut off water supplies & remove old faucet.
2. Place the escutcheon over the three holes in the sink.
3. Insert faucet body through the hole in escutcheon.
INSTALL THE FAUCET
1. Install the plastic washer (a) and metal washer (b) onto the threaded
mounting shank (c). Thread the nut onto the mounting shank. Lock the
nut into position by tightening the screws. Do not overtighten.
2. Push the quick connector rmly upward and attach it to the receiving
block (d). Pull down moderately to ensure the connection has been
made. If it is necessary to remove the quick connector, squeeze the tabs
on the quick connector and then pull down to disconnect.
3. After connecting the hose, install the weights at the point of the hose
marking “weights here” (e).
FLANGE INSTALLATION OPTION
ESCUTCHEON INSTALLATION OPTION
SECURE THE FAUCET
(a) Plastic washer
(b) Metal washer
(c) Mounting shank
(d) Push up
to attach
the quick
connector
(e) Attach the weights
ATTACH CONNECTORS AND WEIGHTS
