Installation Sheet

5. Note: Refer to the style of
assembly that matches the style
of your fixture.
If your fixture has shades,
STYLE #1A - Place shade on
tube, then install bulb.
STYLE #1B - Install bulb, shade
then finial.
STYLE #2 - Remove spinner nut
from socket. Position glass on
lamp and secure with spinner
nut.
Note: Glass may face up or
down.
Note: If your fixture has candle-
style lights, slide the tubes over
the uplight sockets
STYLE #3 - Install proper bulb
type and wattage before
assembling the glass. Remove
ball screw from the curved stem.
Position glass on lamp with the
curved stem being inserted
through the hole in the glass.
Hand tighten the ball screw to
secure the glass in place.
STYLE #4 - Snap“pop off”head
or glass onto fixture (push, or
push and turn (it depends on the
style of your fixture).
6. If not already done,install
proper bulb type and wattage.
INSTALLATION:
Glass
Fixture
Socket
C-9
05/12
Spinner
Nut
CHANDELIER
Glass
Hole
For Stem
Ball Screw
STYLE #2
STYLE #3
STYLE #1A
STYLE #1B
Finial
Shade
Bulb
Tube
Shade
Tube
Bulb
QUESTIONS OR CONCERNS CONTACT CANARM AT:
1-800-265-1833 (English) 1-800-567-2513 (French)
Monday through Friday 8:00 AM to 5:00 PM E.S.T.
SAFETY PRECAUTIONS:
Downrod
Nut
(Optional)
Fixture
Wire
Downrod
Set Sc
(Optional)
rew(s)
Canopy
“ A”
“ B”
Studs
Star
Washer
Fixture
Stud
Or
Nipple
Cap
Nut
STYLE#2
Studs
“ B”
STYLE#1
“Pop Off”
Head Or
Glass
Fixture
Socket
STYLE #4

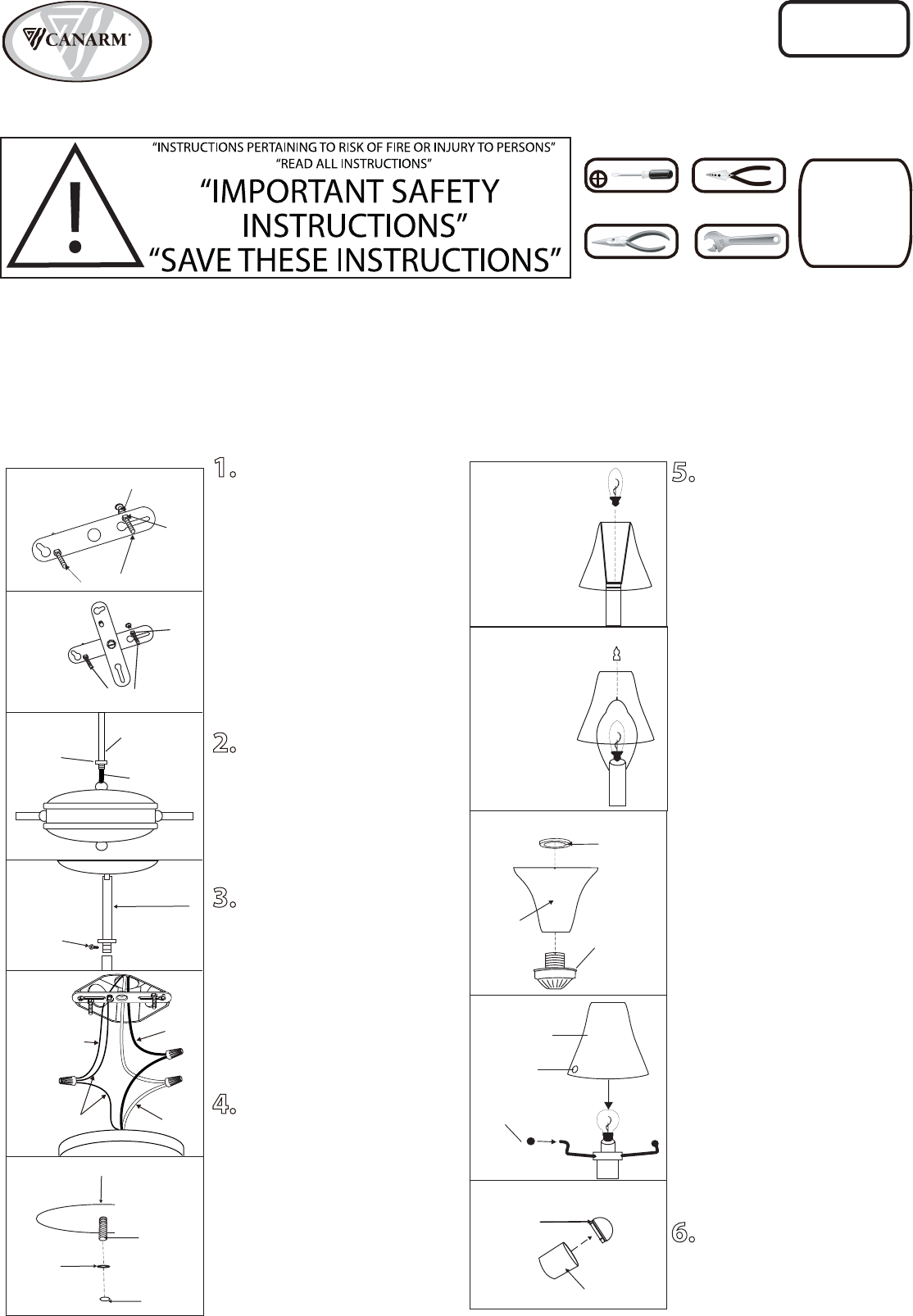

1. Refer to the mounting
bracket style that matches the
bracket that is included with your
fixture. Attach the mounting
bracket to the outlet box using
electrical box screws (not
included).
Style#1 - Loosen hex nut “A”and
“B”.Adjust stud so it clears the
fixture once assembled.Hold in
place with“A”and lock in place
with“B”.
Style#2 (Threaded holes)
Loosen“B”.Adjust stud to desired
length and lock in place with“B”
2. Screw lower downrod into
the fixture. Use the nut to tighten
and lock the downrod into place.
(optional)
NOTE: Determine your downrod
length. Lock in place by tightening
the set screws (optional).
3. Connect the ground wires
(bare copper or green) from your
fixture to the ground wire (bare
copper or green) or ground screw
in the electrical outlet box.
Connect the black wire (or wire
with marking) from the fixture to
the black wire in the electrical box
and connect the white wire from
the fixture to the white wire in the
electrical box.
4. Once connections of wires
are completed, carefully tuck
wires and wire nuts into the
outlet box making sure no bare
wire (on the black and white) is
visible at the wire nuts. Install
the light fixture to the wall by
aligning the hole(s) in the
fixture with the studs or nipple
on the mounting bracket.
Secure in place with cap nut(s)
and star washer (s).
(not included)
White
Black
House supply
Ground wire
Fixture
Ground wire
TOOLS AND MATERIALS REQUIRED:
Phillips
Screwdriver
Wire Cutters
Pliers Wrench
Wiring supplies
as required by
the Canadian
Electrical Code
and/or the
Quebec
Electrical code
1. TURN OFF ELECTRICAL POWER BEFORE STARTING INSTALLATION OF LIGHT FIXTURE.
2. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON
FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED.
3. CONNECT THE GROUND WIRES (BARE COPPER OR GREEN) FROM YOUR FIXTURE TO THE GROUND
WIRE (BARE COPPER OR GREEN) OR GROUND SCREW IN THE ELECTRICAL OUTLET BOX.
4. CLEAN GLASS WITH WATER ONLY.
NOTE: Product May Not Look Exactly As Shown In Figures.
