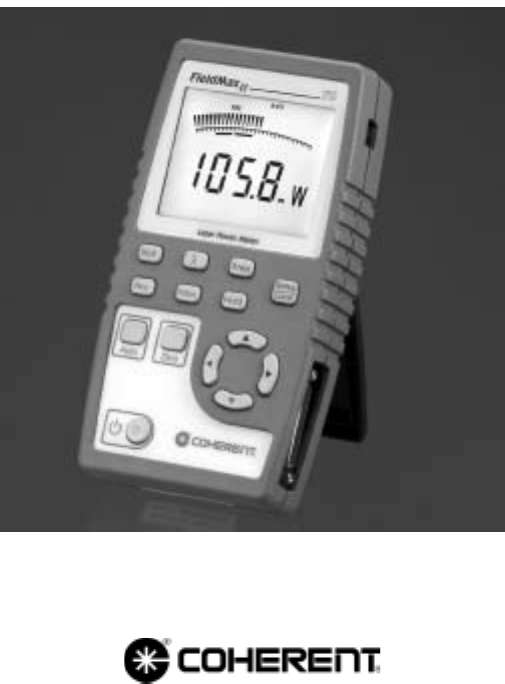

User Manual FieldMaxII-TO™ Laser Power Meter
User Manual FieldMaxII-TO Laser Power Meter 7470 SW Bridgeport Rd.
FieldMaxII-TO User Manual This document is copyrighted with all rights reserved. Under the copyright laws, this document may not be copied in whole or in part or reproduced in any other media without the express written permission of Coherent, Inc. Permitted copies must carry the same proprietary and copyright notices as were affixed to the original. This exception does not allow copies to be made for others, whether or not sold, but all the material purchased may be sold, given or loaned to another person.
description of the problem and the corrective steps attempted. When communicating with our Technical Support Department, via the web or telephone, the model and serial number of the product will be required by the Support Engineer responding to your request. Outside the U.S.: If you are located outside the U.S., visit our website for technical assistance, or telephone our local Service Representative. Representative phone numbers and addresses can be found on the Coherent website, www.coherent.com.
FieldMaxII-TO User Manual iv
Table of Contents TABLE OF CONTENTS Preface .......................................................................................................... xi Software Installation ..................................................................................... xi U.S. Export Control Laws Compliance ........................................................ xi Publication Updates ..................................................................................... xii Symbols Used in This Document ..........
FieldMaxII-TO User Manual Temperature .........................................................................................22 AUTO ..................................................................................................22 Range Hint ...........................................................................................23 AVG .....................................................................................................23 ATTEN..........................................................
Table of Contents Special Topics ...............................................................................................41 Negative Power Display ...............................................................................41 Digital Tuning Feature Use in Statistics Mode .............................................41 ActiveX Installation ......................................................................................42 USB Driver Installation ...............................................
FieldMaxII-TO User Manual Product Shipping Instructions.......................................................................77 Appendix A: Specifications..................................................................79 Index ..................................................................................................................83 LIST OF TABLES 1. 2. 3. 4. Fault Codes ................................................................................................
Table of Contents 10. 11. 12. Comparison of Zone Indicator Bars to Full Scale Measurement...............21 Tuning Mode Example - Full Scale ...........................................................22 Auto Ranging .............................................................................................
FieldMaxII-TO User Manual x
Preface Preface This manual contains user information for the FieldMaxII-TO™ laser power meter. Software Installation For complete software installation instructions, refer to the FieldMaxII Software Installation Quick Start Guide (1096359) that shipped with your product. If that document is unavailable, insert the FieldMaxII-TO CD into your CD-ROM drive. If Autorun is enabled on your system, installation will start automatically; otherwise, select Run from the Start menu and then type D:\Setup.
FieldMaxII-TO User Manual Publication Updates To view information that may have been added or changed since this publication went to print, connect to www.Coherent.com. Symbols Used in This Document This symbol is intended to alert the operator to the presence of dangerous voltages associated with the product that may be of sufficient magnitude to constitute a risk of electrical shock. This symbol is intended to alert the operator to the danger of exposure to hazardous visible and invisible radiation.
Safety SAFETY Carefully review the following safety information to avoid personal injury and to prevent damage to this meter or any sensor connected to it. Except for replaceable batteries (discussed under “Battery Replacement” on page 15), there are no user-serviceable parts in the FieldMaxII-TO meter. For service information, refer to “Obtaining Service” on page 75. Use only the power cord specified for the meter. The grounding conductor of the cord must be connected to earth ground.
FieldMaxII-TO User Manual Operate the meter only within the specified voltage range. Do not apply a voltage outside the specified range of the input connections. Do not operate the meter if there are suspected failures. Refer damaged units to qualified Coherent service personnel.
Safety Declaration of Conformity 3
FieldMaxII-TO User Manual 4
Quick Start QUICK START This section presents a “mini-tutorial” that explains how to connect a sensor to your FieldMaxII-TO meter and begin taking measurements within minutes. For in-depth information about the procedure introduced in this section, refer to “Operation” on page 17. Follow all laser safety procedures. The laser must be blocked or switched OFF before beginning the procedure described in this section.
FieldMaxII-TO User Manual Measuring Power With a Thermopile or Optical Sensor The following figure describes how to take a power measurement using a thermopile or optical sensor. ! Connect a thermopile or optical sensor to the 25-pin connector. " Press the Auto button to turn on Auto Ranging. #Block the beam and then press the Zero button to set the baseline for your new measurement. $Unblock the beam, take the measurement, and observe the result on the display. Figure 1.
Description DESCRIPTION Thank you for purchasing the FieldMaxII-TO™—a versatile, easy-to-use digital power meter designed for field service and production applications. This section discusses the following topics: • Front panel (page 9) • Right side panel (page 13) • Left side panel (page 14) There are also instructions on how to replace the alkaline batteries (page 15) and a brief overview of the AC adapter (page 16).
FieldMaxII-TO User Manual The versatile FieldMaxII-TO measures: • Power: W, W/cm2 • Full statistics: max, min, and mean 8
Description Front Panel The front panel (shown in Figure 2) includes a liquid crystal display (LCD) and buttons that are used to enter parameters, select modes, and change ranges. Figure 2.
FieldMaxII-TO User Manual Buttons The following buttons are on the front panel of the FieldMaxII-TO: • Setup/Local—starts or ends a parameter edit cycle. This button is also used to cancel the front panel lockout when Remote Control is active.
Description Display The LCD display provides visual measurement information. Figure 3 shows all the possible segments that may appear on the display. Figure 3.
FieldMaxII-TO User Manual The type of sensor being used and the individually-selected settings determine what type of information will actually appear on the display Information that appears on the display is divided into the groups described in the following list (Figure 3 on page 11 shows the general location of each group).
Description Right Side Panel The right side panel contains the USB and Sensor connectors (refer to Figure 4). Figure 4. Right Side Panel USB Connector Attaching the cable—shipped with the meter—to this standard USB connector allows communication between FieldMaxII-TO and a computer with a USB interface. Sensor Connector Use this connection to attach a DB-25 SmartProbe connector or adapter.
FieldMaxII-TO User Manual Left Side Panel The left side panel contains the Analog Out and Power Jack connectors (refer to Figure 5). Analog Out Connector Power Jack Connector Figure 5. Left Side Panel Analog Out Connector When power is on, the Analog Out connector outputs a voltage proportional to the current laser measurement. The output voltage is zero (0) volts when the measured power is zero (0) or less.
Description Battery Replacement FieldMaxII-TO uses six 1.5V alkaline batteries, or a 90-to-260 VAC, 50/60 Hz AC adapter (refer to “AC Adapter” on page 16 for more information). Figure 6 illustrates how to replace the batteries. An optional rechargeable battery pack is also available for FieldMaxII-TO. Visit our website (www.Coherent.com), or contact a Coherent representative for more information (see Table 3, “Coherent Service Centers,” on page 76 for contact information). Figure 6.
FieldMaxII-TO User Manual AC Adapter Using an AC adapter prolongs battery life. FieldMaxII-TO automatically senses when an adapter is used. When batteries rather than an adapter, are used, the Battery annunciator flashes if the battery charge is low. While in battery operation, if a sensor is not connected to the meter, power is automatically turned off after ten minutes.
Operation OPERATION This section discusses the following topics: • Tuning mode (page 18) • Annunciators (page 22) • Fault displays (page 25) • Invalid and not available data conditions (page 26) • Setup parameters (page 27) • Button functions (page 33) • Statistics mode (page 35) • Measurement (page 36) 17 display and range selection
FieldMaxII-TO User Manual Tuning Mode This mode only works in Manual Ranging mode. For more information about ranging, refer to “Auto vs. Manual Ranging Mode” on page 39. As shown in Figure 7, tuning is visually displayed on the LCD using tuning needles and zone indicator bars. Tuning Needles Zone Indicator Bars Figure 7.
Operation Tuning Needles Tuning needles—which divide a given tuning zone into thirty “increments”—are used to peak a laser output. As the top or bottom of a zone is reached, the tuning needles automatically move to the center of the next zone (see Figure 8). Zone indicator bars let you know when this happens (refer to “Zone Indicator Bars” on page 20 for more information). Mid-Range of Current Scale Figure 8.
FieldMaxII-TO User Manual Zone Indicator Bars Zone indicator bars are a series of six segments, as shown in Figure 9: Zone Indicator Bars Figure 9. Zone Indicator Bars These bars act as visual indicators while the tuning needles automatically move through zones, and also provide a relative indication of where the measurement falls within the active range.
Operation Zone indicator bars always appear in pairs, with each overlapping zone representing 1/3 of full scale. Figure 10 shows how the five zone indicator bars correlate to full scale measurement on the tuning meter scale. Figure 10.
FieldMaxII-TO User Manual Figure 11 shows an example of how the zone indicator bars overlap on a 30-watt scale: Figure 11. Tuning Mode Example - Full Scale Annunciators Annunciators refers to the icon-type symbols that appear on the LCD (Figure 3 on page 11 shows all the annunciators on the FieldMaxII-TO meter). The update rate for all annunciators is 3 times per second.
Operation Range Hint The Range Hint annunciator—towards the top of the LCD, just above the tuning needles—displays “3,” “30,” or “300.” These numbers represent the full-scale range currently selected by the user. Range Hint is discussed in more detail under “Measurement Display and Range Selection” on page 36. AVG When AVG (display smoothing) is active, display values are averaged by time. “AVG” displays when averaging is active. Nothing displays in this position if averaging is not active.
FieldMaxII-TO User Manual Hold The Hold annunciator toggles between freezing the power reading and associated indicators on the LCD, and displaying live measurements.
Operation Fault Displays FieldMaxII-TO is capable of detecting internal and userinduced faults. When a fault is detected, the letters “Er”—followed by a numeric fault code (see Table 1)—appear on the display. You can dismiss a fault code by pressing any button, or by correcting the cause of the fault. Table 1.
FieldMaxII-TO User Manual As an example, “Er 4” appears on the display if there is a sensor error. You can dismiss the fault by removing the sensor from the meter, or by pressing any button. Attaching an unrecognized sensor to the meter creates a special fault condition. This condition is characterized by displaying a sensor fault (1 through 5). Invalid and Not Available Data Conditions The update rate for invalid or not available data conditions is three times per second.
Operation Setup Parameters This section explains how to select and set user-definable parameters. Setup/Local The Setup/Local button serves several purposes: 1. If an edit cycle is not in progress, pressing the Setup/Local button initiates an edit cycle. If the next button pressed represents an edit parameter (STAT, WAVE, AREA, ATTEN, or AVG button), Edit mode is entered and the parameter for the applicable button may be edited using the edit buttons.
FieldMaxII-TO User Manual 4. Setup/Local is used to cancel the front panel lockout when Remote Control is active. Remote Control is active when the instrument is connected to a host computer via a USB connection and is communicating with a host application program. While the instrument is in Remote Control mode, all front panel buttons—except Power/Backlight and Setup/Local—are disabled.
Operation Stat Wave Pressing the Stat button will: • Enter Statistics mode—if Statistics mode is not active and the button is pressed for less than two seconds. • Exit Statistics mode. • Enter Edit mode and select the statistics parameters to be edited (Batch Size and Restart mode) after edit cycle initiation (if Setup/Local is pressed beforehand). Batch size is 1 to 99,999 seconds. • View the statistics parameters if the button is pressed for two seconds or more.
FieldMaxII-TO User Manual display the wavelength value. The available wavelength range is 1.00 to 99,999 nm. The actual range is sensordependent. If Wavelength compensation information is not programmed into the sensor, you will not be able to change the wavelength data value. Area This mode allows the measurement of laser power in terms of average power density. Area calculation returns an average power density reading for both Flat and Gaussian profiles.
Operation Area Correction and Zeroing It is important that you zero the sensor before using Area Correction, as explained in the following procedure. 1. Enter Area Correction by pressing the Area button for less than one second. 2. Set Auto Ranging by pressing the Auto button. 3. Block the sensor beam. 4. Allow the sensor to enter a steady (cool-down) state. If you are using a thermopile sensor, this steady state can be determined by watching the display numbers on the LCD.
FieldMaxII-TO User Manual The FieldMaxII-TO uses a boxcar averaging method, with a boxcar length of 32 samples. Pressing the Avg button toggles the state of Average mode. Atten Attenuation mode allows you to get true measurements using an attenuator that has a known attenuation factor. When Attenuation Correction mode is enabled, the measured value is adjusted to indicate the measurement at the attenuator and not the sensor. The range for this mode is 0.01 to 999.99.
Operation Hold Pressing the Hold button toggles between freezing the power reading and associated indicators on the LCD, and displaying live measurements. Button Functions Auto Pressing the Auto button instructs the FieldMaxII-TO to select the best measurement range for the incoming signal. Zero Pressing the Zero button causes the analog circuitry to zero its internal settings by running a zero cycle. If Auto Ranging is not active, the meter will zero the currentlyselected range.
FieldMaxII-TO User Manual • Select a new range • Press the Zero button The secondary function of the Zero button is to manually start a batch while in Statistics mode. Power Switch and Backlight Toggle Button Up and Down Arrows The combination Power Switch and Backlight Toggle button serves the dual purpose of turning power on/off to the meter, and toggling the backlight. • When the meter is off, the power-on state is activated by pressing the button for one second.
Operation Left and Right Arrows This button pair has a dual purpose. When the Edit mode is active, the buttons allow you to select the edit field of the currently-selected edit parameter. When the Edit mode is not active and Statistics mode is active, the buttons are used to select the statistical parameter of interest (MAX, MIN, or MEAN). These buttons are nonfunctional when Edit mode and Statistics mode are not active.
FieldMaxII-TO User Manual result computed. If the Restart mode is Auto, a new batch is immediately restarted. The error that caused the contaminated batch is displayed. Measurement Display and Range Selection The display update rate for numeric measurement is three times per second. Measurement range is selected in decade steps. Range selection (shown in Table 2 on page 37) is dependent on the sensor type and characteristics, as well as user-determined measurement settings.
Operation Over-ranging refers to a meter setup condition in which the sensor output signal is greater than the maximum allowable level for the selected range. An “OL” (overload) appearing on the display signifies an over-range condition. Over-ranging generates invalid data. When area correction is enabled in Watts mode, a “/cm2” will be appended to the units. Table 2 indicates the display format for different fullscale range settings. Table 2.
FieldMaxII-TO User Manual Table 2. Full Scale Range Settings (Continued) FULL SCALE MEASUREMENT DISPLAY FORMAT 300 W XXX.Y W 3 kW X.YYY kW 300 kW XX.YY kW The Range Hint annunciator displays the full-scale range value with the engineering prefix and units omitted. For example, when the range is 30 kW, the Range Hint annunciator displays “30.” Note that it also displays “30” when the selected range is 30 W, 30 mW, 30 µW, or 30 nW.
Operation Auto vs. Manual Ranging Mode Auto Ranging (Auto) enables FieldMaxII-TO to automatically select the range (gain). While in Auto Ranging mode, the tuning needles represent a zero-to-full scale movement (as compared to Tuning mode, where the zones overlap). Refer to Figure 12. Tuning Needles Figure 12. Auto Ranging Manual ranging requires the range to be selected by the user. For more information, refer to “Up and Down Arrows” on page 34.
FieldMaxII-TO User Manual active, the sensor is zeroed at the current range only. Under typical operating conditions, the zero procedure takes about one second for each range. When starting the zeroing procedure, the large numerals on the LCD are replaced by an animated set of dashes. Unless there is an error, the normal measurement mode resumes once the zeroing procedure ends.
Special Topics SPECIAL TOPICS This section discusses the following topics: Negative Power Display • Negative power display (this page) • Digital tuning feature use in Statistics mode (this page) • ActiveX installation (page 42) • USB driver installation (page 42) A negative power reading indicates the sensor needs to be zeroed. Two areas of the display are affected by a negative power reading: the digital tuning feature and the numeric measurement display.
FieldMaxII-TO User Manual ActiveX Installation Included with the software is an ActiveX server DLL that enables a programmer to quickly and efficiently communicate with FieldMaxII. This ActiveX server DLL—and its accompanying tutorial—are shipped with every FieldMaxII-TO. View the Readme file on the accompanying CD for ActiveX installation instructions. USB Driver Installation When first connecting the meter to a PC with the USB cable, you will be prompted through an installation process.
Host Interface HOST INTERFACE This section presents the following topics: • Introduction (this page) • ActiveX usage guidelines (this page) Introduction The interface is implemented as an ActiveX DLL server called FieldMax2DLLServer.dll. The DLL is COM-compliant and serves to transport data between the FieldMaxII and a host application program. This DLL has no GUI elements.
FieldMaxII-TO User Manual cFM2Listener class and IFM2Listener interface—An object class that dispatches meter USB connect/disconnect and data event notifications to the application code. Notifications are permitted by means of a user-implemented callback object that is passed to this object. It implements the IFM2Listener interface. One cFM2Listener object is needed to manage all meters with which the program will communicate.
Host Interface is accessed by reading any of the numerous cFM2Device. properties. It implements the IFM2Device interface. The cFM2Listener object creates a cFM2Device object with every meter USB connect event. cFM2Devices class—An object class that manages a collection of cFM2Device objects for application code indexing. The collection is managed internally within the cFM2Listener object. cFM2Device objects are added to the collection with every meter USB connect event.
FieldMaxII-TO User Manual 4. Pass the callback object to the cFM2Listener object. 5. Start the cFM2ScanUSBForChange object status change engine. The following Visual Basic 6.
Host Interface The Callback Object The callback object code—supplied by the application code—must completely conform to the cFM2Notify class definition and must implement the IFM2DeviceEvents interface. All status change events and data transmissions are channeled through this object to the application code. The code within this object will steer data and events as required by the designer. The following Visual Basic 6.
FieldMaxII-TO User Manual Private Sub IFM2DeviceEvents_DisplayZeroDeviceProgressToClient() ‘Steer the m_CallbackMessage string and ‘m_ZeroDeviceTimeoutCounter integer to the appropriate ‘application code error handler End Sub ‘Read/write properties Private Property Let IFM2DeviceEvents_CallbackEvent( _ ByVal RHS As String) m_CallbackEvent = RHS End Property Private Property Get IFM2DeviceEvents_CallbackEvent() As String IFM2DeviceEvents_CallbackEvent = m_CallbackEvent End Property Private Property Let IFM2D
Host Interface Private Property Let IFM2DeviceEvents_ZeroDeviceTimeoutCounter( _ ByVal RHS As Integer) m_ZeroDeviceTimeoutCounter = RHS End Property Status Change Notifications Status change notifications are dispatched to the application code through the IFM2DeviceEvents_NotifyDeviceStatus callback method. The CallbackData and DevicesList objects are passed to the application. Status change event types are steered by testing the CallbackData.CallbackEvent string.
FieldMaxII-TO User Manual ‘Start the data check timer ScanForData.CheckTimer m_DevicesList The device and device collection object may be persisted to extend the lifetime of these objects beyond the scope of the callback. When a meter is removed, the DevicesList will be current but the CallbackData.DeviceIndex search key will not be valid since the device is gone.
Host Interface DeviceStatus callback method) through the DevicesList.Item search method using the string version of CallbackData.DeviceIndex as the search key. The following Visual Basic 6.0 code shows how to obtain reference to the cFM2Device object and start the data check timer when a data transmission is notified: ‘Declaration: Dim ThisDevice As IFM2Device ‘Executable code: ‘Get the current device from the collection Set ThisDevice = m_DevicesList.Item(CallbackData.
FieldMaxII-TO User Manual Case Else ‘Unknown event End Select A Fault event indicates a meter malfunction. The fault code may be queried by reading the cFM2Device.LastFault property. The fault code may be dismissed by calling the cFM2Device.DismissFault() method. A Probe Removed event indicates that a probe was removed from the meter. Data transmission will cease when the probe is removed.
Host Interface An Overrange packet event indicates that the current reading is overranged. An Overtemperature event indicates that the probe is in an overtemperature condition. If the probe is in an overtemperature condition, one Overtemperature event will accompany every measurement data event. A Measurement Data Lost event indicates that the meter communication system has dropped data and is not processing data fast enough.
FieldMaxII-TO User Manual is a countdown value that starts at 60 and decrements by one for each event. The terminal value for ZeroDeviceTimeoutCounter will be 0 or -1 when zero completes. 0 indicates a successful completion. -1 indicates a failure. Teardown Devices connected to the application must be closed. The cFM2Notify object passes a reference to the cFM2Devices collection with every callback to the application code via the IFM2DeviceEvents_ NotifyDeviceStatus callback method.
Host Interface In the application code: 1. Stop all engine timers. 2. Destroy the cFM2Notify callback object. 3. Destroy the cFM2ScanUSBForChange cFM2ScanForData objects. 4. Destroy the cFM2Listener object and the reference to the IFM2Listener interface to it. and The following Visual Basic 6.0 code shows the steps: ‘Stop all engine timers ScanUSBForChange.StopTimer ScanForData.
FieldMaxII-TO User Manual Interface IFM2Listener method GetUSBDeviceStatusChange(); (serves internal processing purposes only) propget DeviceIndex([out, retval] short* ); (serves internal processing purposes only) propget SerialNumber([out, retval] BSTR* ); Read only property to identify the serial number that pertains to a meter USB connect/disconnect event.
Host Interface method NotifyData([in] IFM2DeviceEvents* Callback Data); The data event callback method. Notification details are found in the CallbackData properties passed into the method. method NotifyDeviceStatus([in] IFM2DeviceEvents* CallbackData, [in] cFM2Devices* DevicesList); The meter USB connect/disconnect event callback method. Notification details are found in the CallbackData properties passed into the method.
FieldMaxII-TO User Manual propput DeviceIndex([in] short ); propget DeviceIndex([out, retval] short* ); The device index property that is used to index into the DevicesList collection to locate device objects. propput SerialNumber([in] BSTR ); propget SerialNumber([out, retval] BSTR* ); The property to identify the serial number that pertains to an event. propput ZeroDeviceTimeoutCounter([in] short rhs); A write only property used to enable the application to store the zero countdown timer.
Host Interface Interface IFM2Device method CloseAllUSBDeviceDrivers([in] long DeviceHandle); The method call to close a connection. Use the DeviceHandle property as the argument. method DismissFault(); The method used to dismiss any active fault. Query the LastFault property to obtain the fault code before it is dismissed. method GetUSBDeviceData([in] long DeviceHandle); (serves internal processing purposes only) method RestartBatch(); The method to restart a statistics batch.
FieldMaxII-TO User Manual method AreaCorrectionDiameterCommand([in] double CommandOption); The method to set the area correction aperture diameter in millimeters. Valid CommandOption values range from 0.01 to 999.99. method AreaCorrectionEnabledCommand([in] VARIANT_BOOL CommandOption); The method to enable or disable area correction mode. Valid CommandOption values are 0 for disabled and non-zero for enabled.
Host Interface method AverageWindowSizePulsesCommand([in] short CommandOption); The method to set the display smoothing window size in pulses. This parameter has effect only when a pyroelectric probe is attached to a TOP meter. Valid CommandOption values range from 2 to 1000. method AverageWindowSizeSecondsCommand([in] short CommandOption); The method to set the display smoothing window size in seconds. This parameter has effect only when a thermopile or optical probe is attached to a TOP meter.
FieldMaxII-TO User Manual method BatchSizeSecondsCommand([in] long CommandOption); The method to set the statistics batch size in seconds. This parameter has effect only when a thermopile or optical probe is attached. Valid CommandOption values range from 1 to 99999. method HertzModeCommand([in] VARIANT_BOOL CommandOption); The method to enable or disable frequency display mode. This parameter has effect only when a pyroelectric probe is attached.
Host Interface method PowerStateCommand([in] VARIANT_BOOL CommandOption); The method to turn on or off the meter. Valid CommandOption values are 0 for off and non-zero for on. All device properties except PowerState are not valid (hence not meaningful) when meter power is off. method RangeCommand([in] double CommandOption); The method to set the meter fullscale range. Valid CommandOption values must not exceed the MaxRange property.
FieldMaxII-TO User Manual method SpeedupHostDataCommand([in] VARIANT_BOOL CommandOption); The method to enable or disable application of thermopile speedup to the host data output channel. Valid CommandOption values are 0 for disabled and non-zero for enabled. method SpeedupMeterCommand([in] VARIANT_BOOL CommandOption); The method to enable or disable application of thermopile speedup to the simulated analog meter. Valid CommandOption values are 0 for disabled and non-zero for enabled.
Host Interface method WavelengthCommand([in] long Command Option); The method to set the wavelength of operation for wavelength correction. Valid CommandOption values range from the MinRange property to the MaxRange property. propget AnalogOutFullscaleVoltage([out, retval] short* ); The read only property indicating the analog out fullscale voltage. propget AreaCorrectionDiameter([out, retval] double* ); The read only property indicating the area correction diameter.
FieldMaxII-TO User Manual propget AverageModeEnabled([out, retval] VARIANT_BOOL* ); The read only property indicating display smoothing mode. propget AverageWindowSizePulses([out, retval] short* ); The read only property indicating display smoothing window size in pulses. This property is meaningful only when a pyroelectric probe is attached to a TOP meter. propget AverageWindowSizeSeconds([out, retval] short* ); The read only property indicating display smoothing window size in seconds.
Host Interface propget HoldMode([out, retval] VARIANT_BOOL* ); The read only property indicating hold mode state. This parameter has effect only with a TO meter. propget LastData([out, retval] double* ); The read only property indicating the last measurement value. This property is read in response to a “MeasurementData” event. propget LastFault([out, retval] short* ); The read only property indicating the fault code of the last fault event. This property is read in response to a “Fault” event.
FieldMaxII-TO User Manual propget MeterType([out, retval] short* ); The read only property indicating the meter type (TOP, TO, or P). This property follows the Visual Basic 6.0 enumeration of: Public Enum MeterType mtTOP = 1 mtTO = 2 mtP = 3 End Enum propget MinRange([out, retval] double* ); The read only property indicating the minimum full scale range that the meter will accommodate. This property automatically varies as different probes are attached.
Host Interface propget SpeedupAnalogOutput([out, retval] VARIANT_BOOL* ); The read only property indicating mode of application of thermopile speedup to the analog output channel (enabled or disabled). propget SpeedupDigitalDisplay([out, retval] VARIANT_BOOL* ); The read only property indicating mode of application of thermopile speedup to the digital display (enabled or disabled).
FieldMaxII-TO User Manual propput DeviceHandle([in] long ); propget DeviceHandle([out, retval] long* ); The property to be used as the argument to the CloseAllUSBDeviceDrivers() method. propput DeviceIndex([in] short ); propget DeviceIndex([out, retval] short* ); The property to be used as the key to searches in the device list. propput SerialNumber([in] BSTR ); propget SerialNumber([out, retval] BSTR* ); The property to be used to identify the meter serial number.
Calibration and Warranty CALIBRATION AND WARRANTY This section discusses the following topics: Calibration • Calibration (this page) • Coherent calibration facilities and capabilities (page 72) • Limited warranty (page 73) • Extended lifetime warranty (page 73) • Warranty limitations (page 74) • Obtaining service (page 75) • Product shipping instructions (page 77) Coherent laser power and energy meters are precision instruments, capable of delivering very accurate measurements, as well as
FieldMaxII-TO User Manual Coherent Calibration Facilities and Capabilities As the largest laser manufacturer in the world, Coherent has been able to build state-of-the-art calibration facilities containing the widest possible range of laser types and technologies. This enables us to perform instrument and sensor calibration under virtually any combination of wavelength, power, and operating characteristics.
Calibration and Warranty Limited Warranty Coherent, Inc. (the “Company”) warrants its laser power and energy meters and sensors products (“Products”) to the original purchaser (the “Customer”) that the product is free from defects in materials and workmanship and complies with all specifications, active at the time of purchase, for a period of twelve (12) months. Coherent, Inc. will, at its option, repair or replace any product or component found to be defective during the warranty period.
FieldMaxII-TO User Manual If the Product is not returned for recalibration or service prior to the one-year anniversary, the lifetime warranty program expires. The lifetime warranty program may be reinstated, at Coherent's option, after completion of a fee-based product evaluation and repair, and subsequent recalibration and recertification service.
Calibration and Warranty THE COMPANY BE LIABLE FOR ANY INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES IN CONNECTION WITH ITS PRODUCTS. Obtaining Service In order to obtain service under this warranty, Customer must notify the Company of the defect before the expiration of the warranty period and make suitable arrangements for the performance of service.
FieldMaxII-TO User Manual Detailed instructions on how to prepare a product for shipping are shown under “Product Shipping Instructions” on page 77. Table 3. Coherent Service Centers LOCATION PHONE FAX E-MAIL USA 1.800.343.4912 971.327.2777 info_service@coherent.com Europe +49 (6071) 9680 971.327.2777 info_service@coherent.com International 971.327.2700 971.327.2777 info_service@coherent.
Calibration and Warranty Product Shipping Instructions To prepare the product for shipping to Coherent: 1. Contact Coherent Customer Service (refer to Table 3 on page 76) for a Return Material Authorization number. 2. Attach a tag to the product that includes the name and address of the owner, the person to contact, the serial number, and the RMA number you received from Coherent Customer Service. 3. Wrap the product with polyethylene sheeting or equivalent material. 4.
FieldMaxII-TO User Manual 78
Appendix A: Specifications APPENDIX A: SPECIFICATIONS Table 4 lists specifications for the FieldMaxII-TO. Table 4. Specifications PARAMETER DESCRIPTION ELECTRICAL/MECHANICAL Analog Output 1, 2, or 5V full-scale (user-adjustable) 100 ohm source impedance Battery Operating Timea (approx) (Six 1.5V AA alkaline batteries) Continuous measurements in Pyroelectric mode 24 hr. Continuous measurements in Thermopile or Optical mode with passive sensor 36 hr. Shelf life when not used 8 yr.
FieldMaxII-TO User Manual Table 4. Specifications (Continued) PARAMETER DESCRIPTION ENVIRONMENTAL Altitude <4,500 m (operating) <12,000 m (storage) Relative Humidity <90% (5 to 40° C) (operating) <95% (0 to 70° C) (storage) Temperature 5 to 40° C (operating) -20 to 70° C (storage) RANGES Area Parameter (entered as a diameter) 0.01 to 999.99 mm Attenuation (Attenuation parameter) 0.01 to 999.
Appendix A: Specifications Table 4. Specifications (Continued) PARAMETER DESCRIPTION MISCELLANEOUS Regulations Met CE a. Coherent recommends a Panasonic AM-3PI AA battery.
FieldMaxII-TO User Manual 82
Index INDEX A Connector Power jack 14 Sensor 13 USB 13 AC adapter 16 Annunciator display functions 22 Area button function 30 Area correction and zeroing 31 ATTEN annunciator 23 Atten button function 32 AUTO annunciator 22 Auto button function 33 AVG annunciator 23 Avg button function 31 D Digital tuning feature in statistics mode Display functions Annunciators 22 Fault displays 25 Invalid and not available data conditions 26 Measurement display and range selection 36 B Bad zero 33 BATTERY annunciator
FieldMaxII-TO User Manual M Setup/Local 27 Stat 29 Wave 29 Setup/Local button function 27 Specifications 79 Stat button function 29 Statistics mode 35 and digital tuning feature 41 and invalid data 35 Measurement display and range selection display 36 N Negative power display Not available data 26 41 O Overview AC adapter 16 Battery replacement 15 Front panel 9 Left side panel 14 Right side panel 13 T Temperature annunciator Tuning Mode 18 Needles 19 P Power Jack connector 14 Switch and backlight tog
