RECIRCULATING CHARCOAL FILTERS
Installing Recirculating Filters (For Ductless Model Only)
1. Remove the Baffle Filters
2. Locate the Motor
3. Place a Carbon Filter on one side of the motor and align with the center.
4. Press the center of the filter, twist and lock into place.
5. Repeat steps 2-4 for the other side of the motor.
6. Place the Baffle Filters back into place.
12
Skip this page if you are installing a Ducted Range Hood.
Charcoal Filters are only included with Ductless Models
Note: Chimney Vent Holes located on the sides of the chimney must be
exposed to let the filtered air recirculate.
1111
10

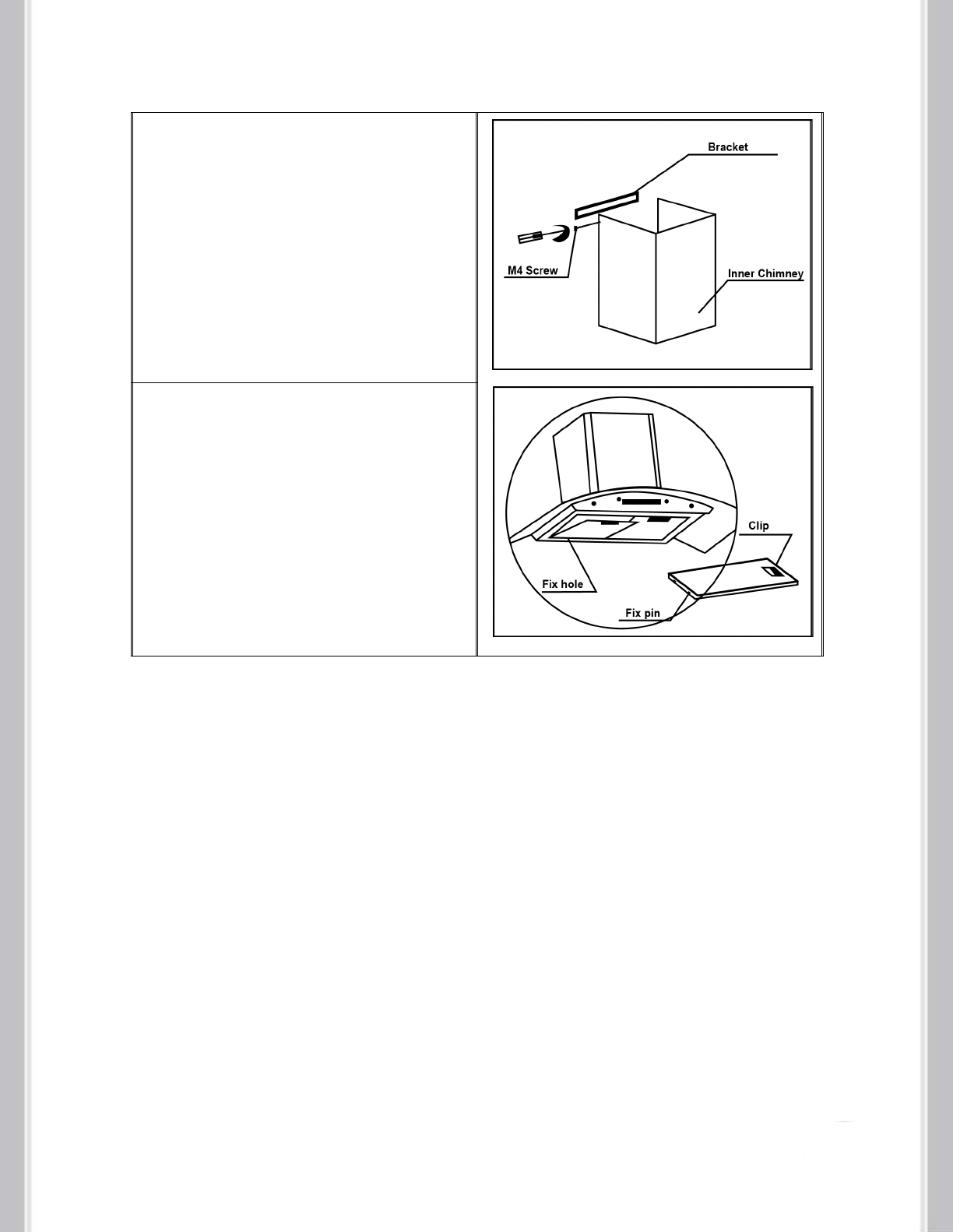

Insert and install filters
according to the diagram.
Extend Inner Chimney to the Ceiling.
Align sides with Mounting Bracket.
Firmly screw sides of Inner Chimney into bracket
with with BB screws screws (shown in parts list).
Step 7:
Step 8:
