User's Guide Keyboard Amplifier KXB15

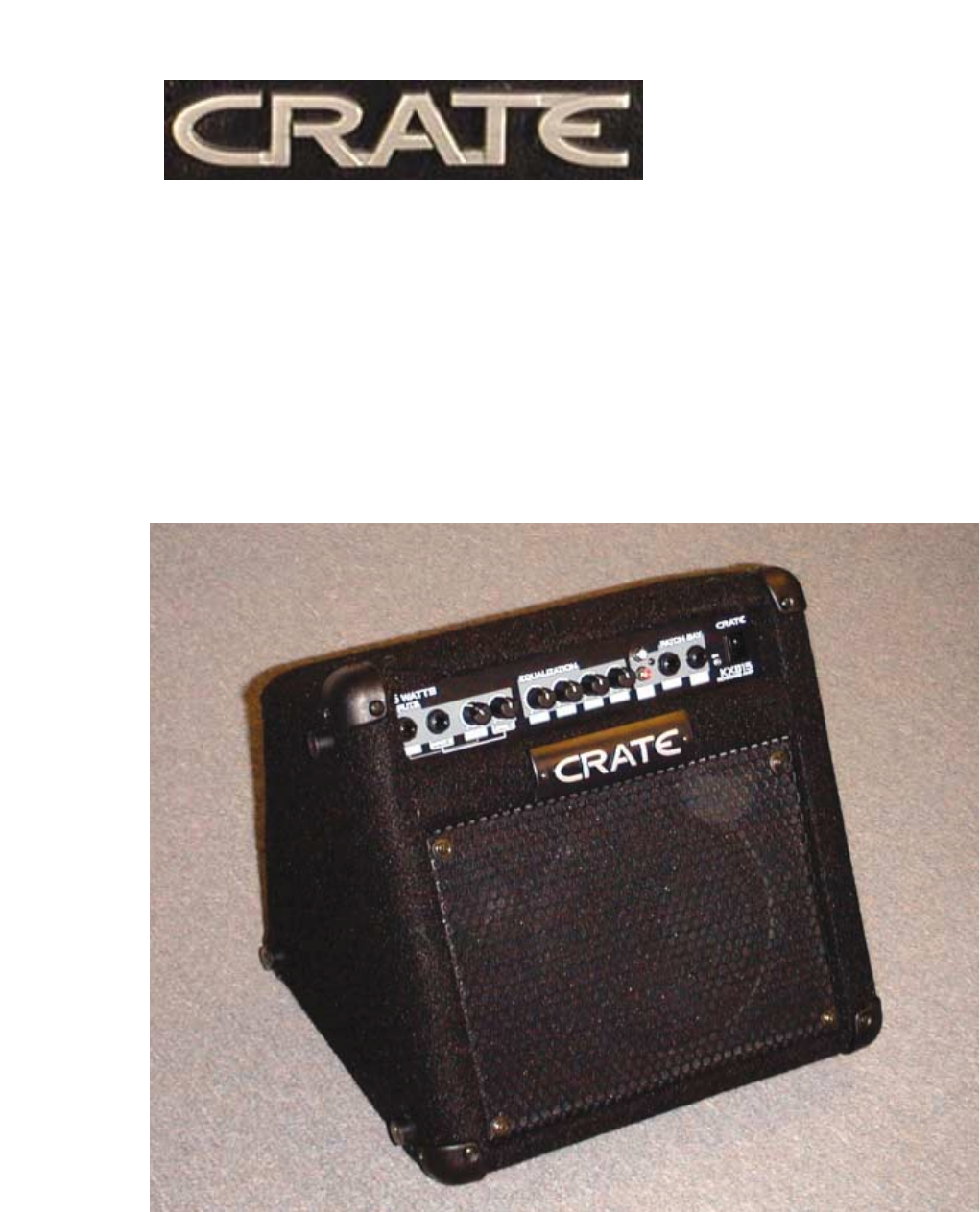

KXB15 Keyboard

Amplifier

User’s Guide

PAGE 1
KXB15 Keyboard Amplifier User’s Guide
PAGE 2
KXB15 Keyboard Amplifier Congratulations! You are now the proud owner of the Crate KXB15 keyboard amplifier. This compact powerhouse offers warm clean tones and easy-to-use equalization. Each of the two input jacks has its own level control so you can mix your keyboard with another instrument or a Hi-Z vocal mic. The CD input also allows you to play along with your favorite music.
PAGE 3
KXB15 Keyboard Amplifier 1 2 3 4 5 6 1. INPUT 1: Use this 1/4” jack to connect your keyboard or other line level signal to the amplifier by means of a shielded instrument cable. The signal level at this jack is controlled by the Level 1 knob (#3). 2. INPUT 2: Use this 1/4” jack to connect your keyboard or other line level signal to the amplifier by means of a shielded instrument cable. The signal level at this jack is controlled by the Level 2 knob (#4). 3.
PAGE 4
KXB15 Keyboard Amplifier KXB15 TECHNICAL SPECIFICATIONS: Maximum Input Signal Level Accepted 15 volts peak to peak load – 120 VAC line Low Control 15dB Range @ 50Hz Low Mid Control 12dB Range @ 250Hz High Mid Control 13dB Range @ 1kHz High Control 27dB Range @ 10kHz Input Power Requirements 120 VAC, 60Hz, 30VA 100/110 VAC, 50/60Hz, 30VA 230 VAC, 50/60Hz, 30VA Speaker Size and Rating Crate Custom Design 8”, 15 watts Cabinet Size and Weight 14” H x 15” W x 12-1/2” D, 19 lbs.
