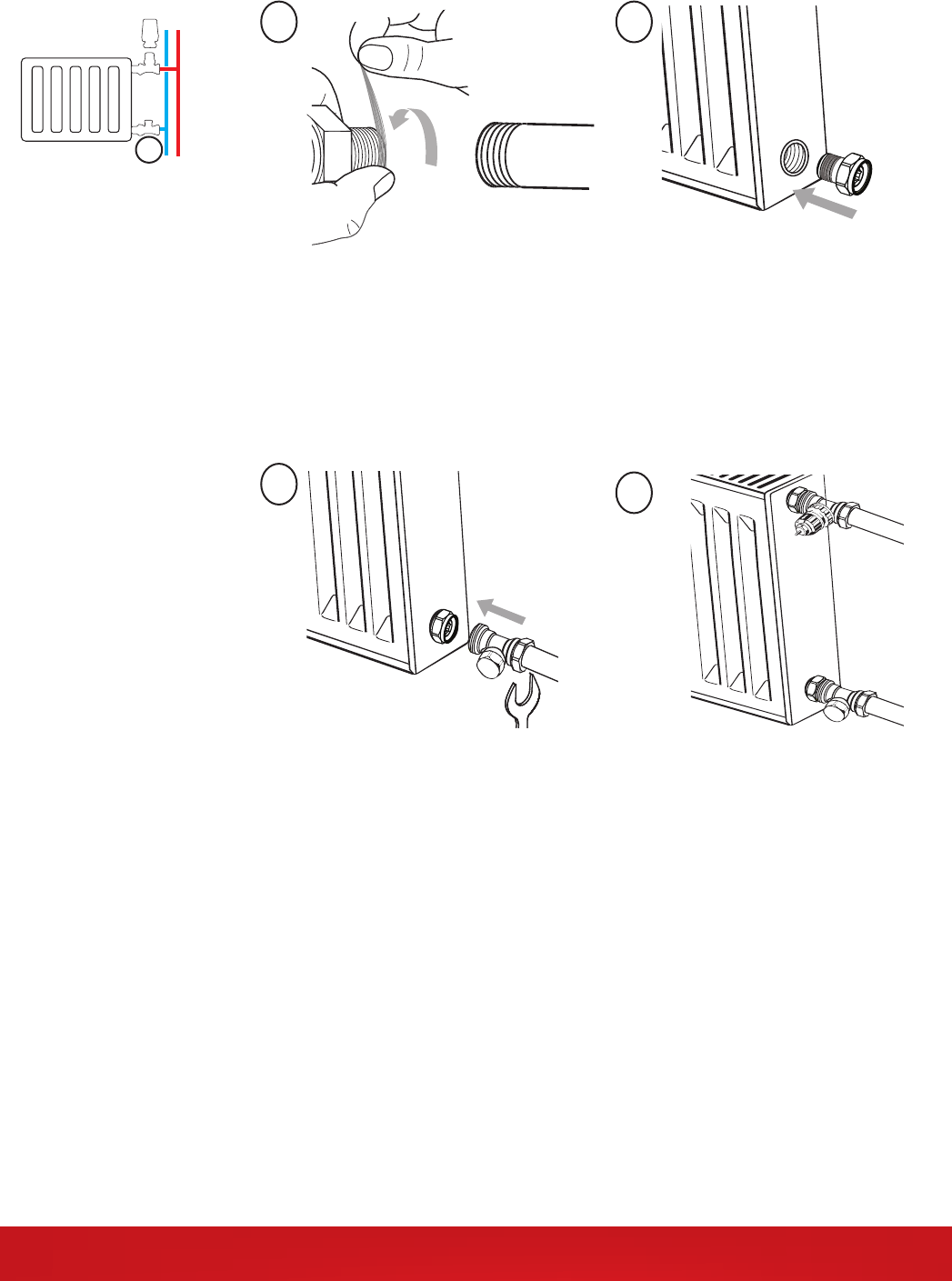

Fitting the lock shield

(Straight or Angled)

1 2

Fit the lock shield to the pipe; tighten

the union nut with a spanner. Next,

t the lock shield to the tail piece and

tighten the union nuts.

3

4

Separate the lock shield and the tail

piece. Apply the PTFE tape to the lock

shield and pipe

Fit the tail piece to the radiator and

tighten with a 10mm Allen key

Once installed take o the lock shield

cover.

Ensure the RLV is open using a 8mm

Allen key, then put the cover back on.
