Technical data

7
VMIFI102
2 Heat pump information
2.1
Components

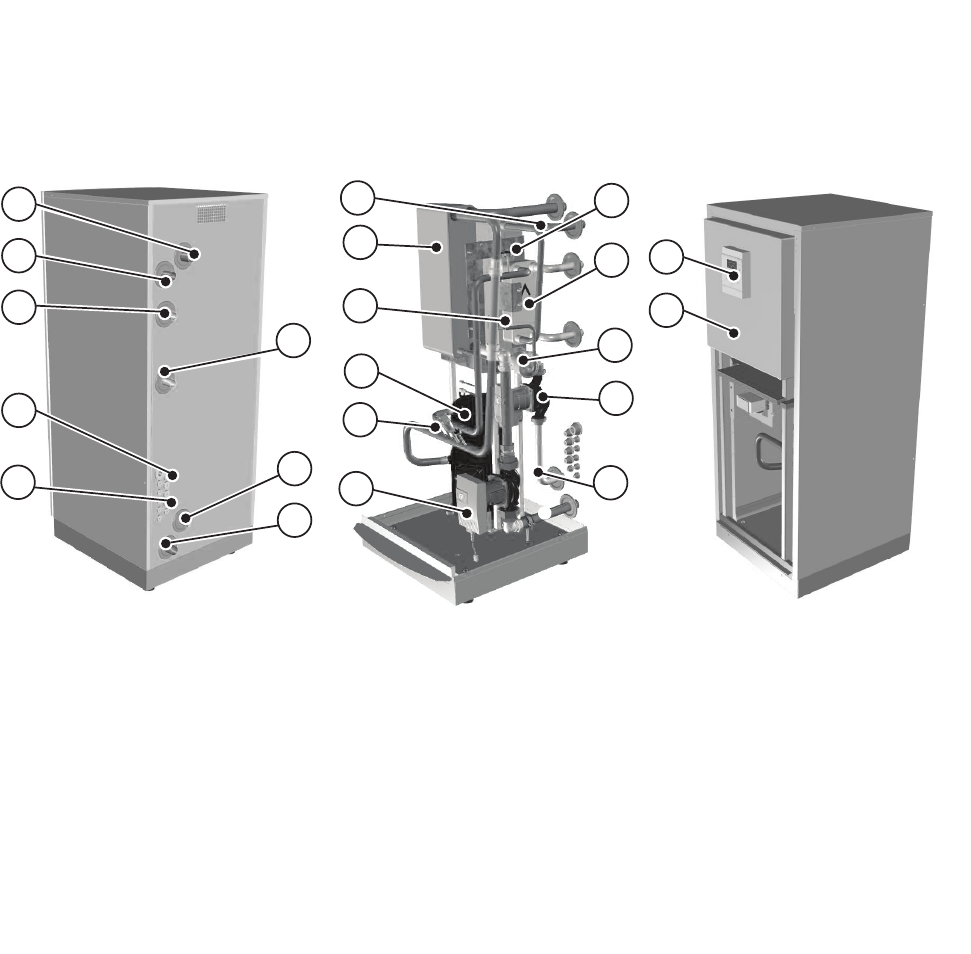

1 Coolant out (from HP)
2 Heat return (return line)
3 Return line hot-gas exchanger
4 Supply line hot-gas exchanger
5 Heat supply (supply line)
6 Coolant in (to HP)
7 Lead-in for communication cable
8 Lead-in for incoming supply and sensor
9 Supply pipe sensor
10 Condenser with draining for prim. side.
11
Return sensor
13 Compressor
14 Instrument panel
15 Electrical cabinet
16 De-superheater
17 Drying filter
18 Expansion valve
19 Condenser circulation pump
20 Coolant pump
10
Evaporator
12
12
7
4
3
5
8
2
10
14
15
17
18
21
16
11
1
6
9
12
19
2
21
13
21 Low pressure transmitter
