Network Link and Activity IndicationNetXtreme-E User’s Manual
September 4, 2019 • NetXtreme-E-UG103 Page 17
BCM957404AXXXX/BCM957414AXXXX
The SFP28 port has two LEDs to indicate traffic activities and link speed. The LEDs are shown in Figure 11 and
described Tab le 7.

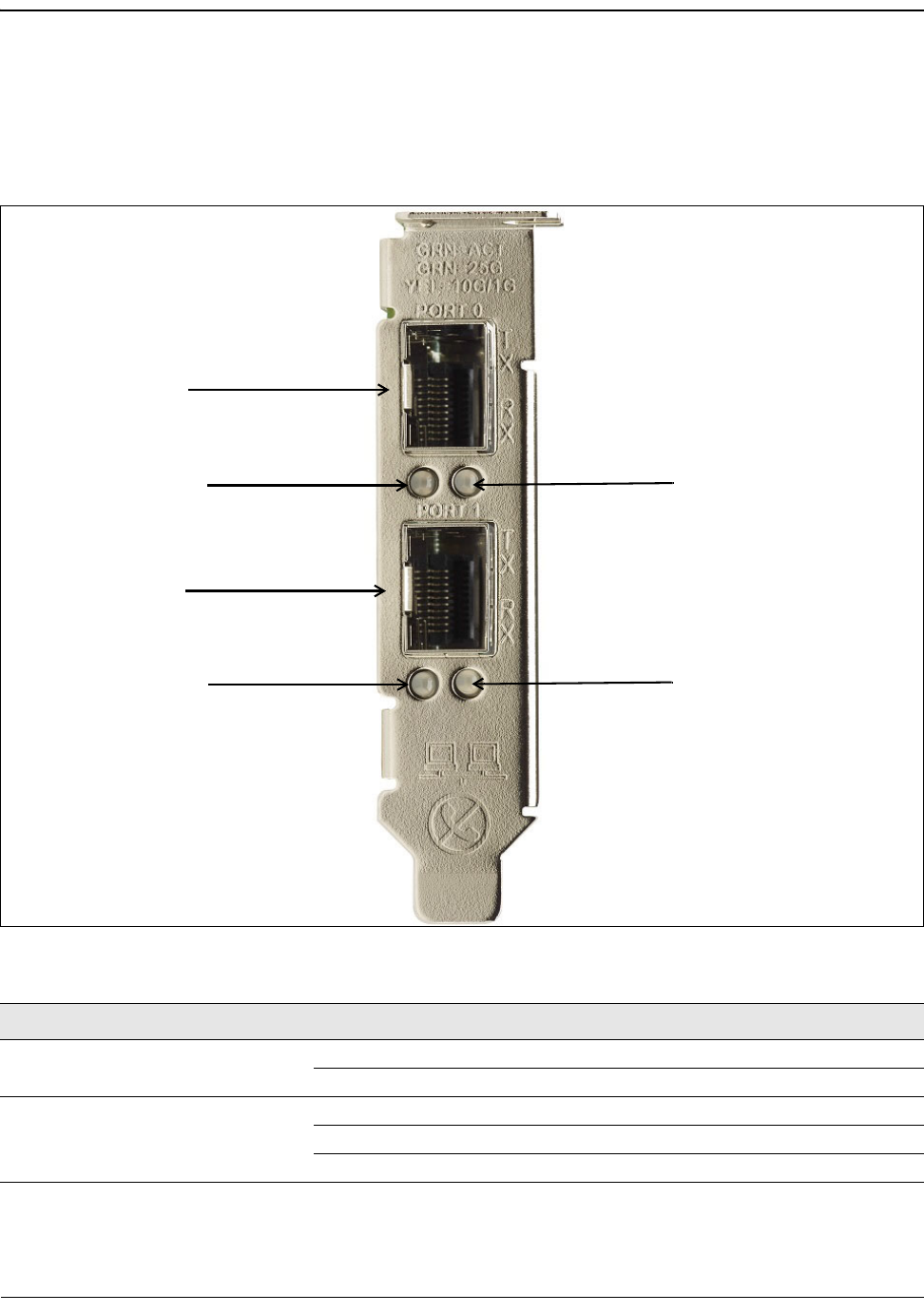

Figure 11: BCM957404AXXXX/BCM957414AXXXX Activity and Link LED Locations
Table 7: BCM957404AXXXX/BCM957414AXXXX Activity and Link LED Locations
LED Type Color/Behavior Note
Activity Off No Activity
Green blinking Traffic Flowing Activity
Link Off No Link
Green Linked at 25 Gbps
Yellow Linked at 10 Gbps
Port 1 SFP28 Cage
Port 2 SFP28 Cage
Port 1 Activity LED Port 1 Link LED
Port 2 Activity LED Port 2 Link LED
