Network Link and Activity IndicationNetXtreme-E User’s Manual
September 4, 2019 • NetXtreme-E-UG103 Page 22
BCM957412N4120DC
The SFP+ port supports two LEDs to indicate traffic activities and link speed. The LEDs are shown in Figure 16
and described Tab le 13. Its locations and form factors conform to the OCP 3.0 Design Specification.

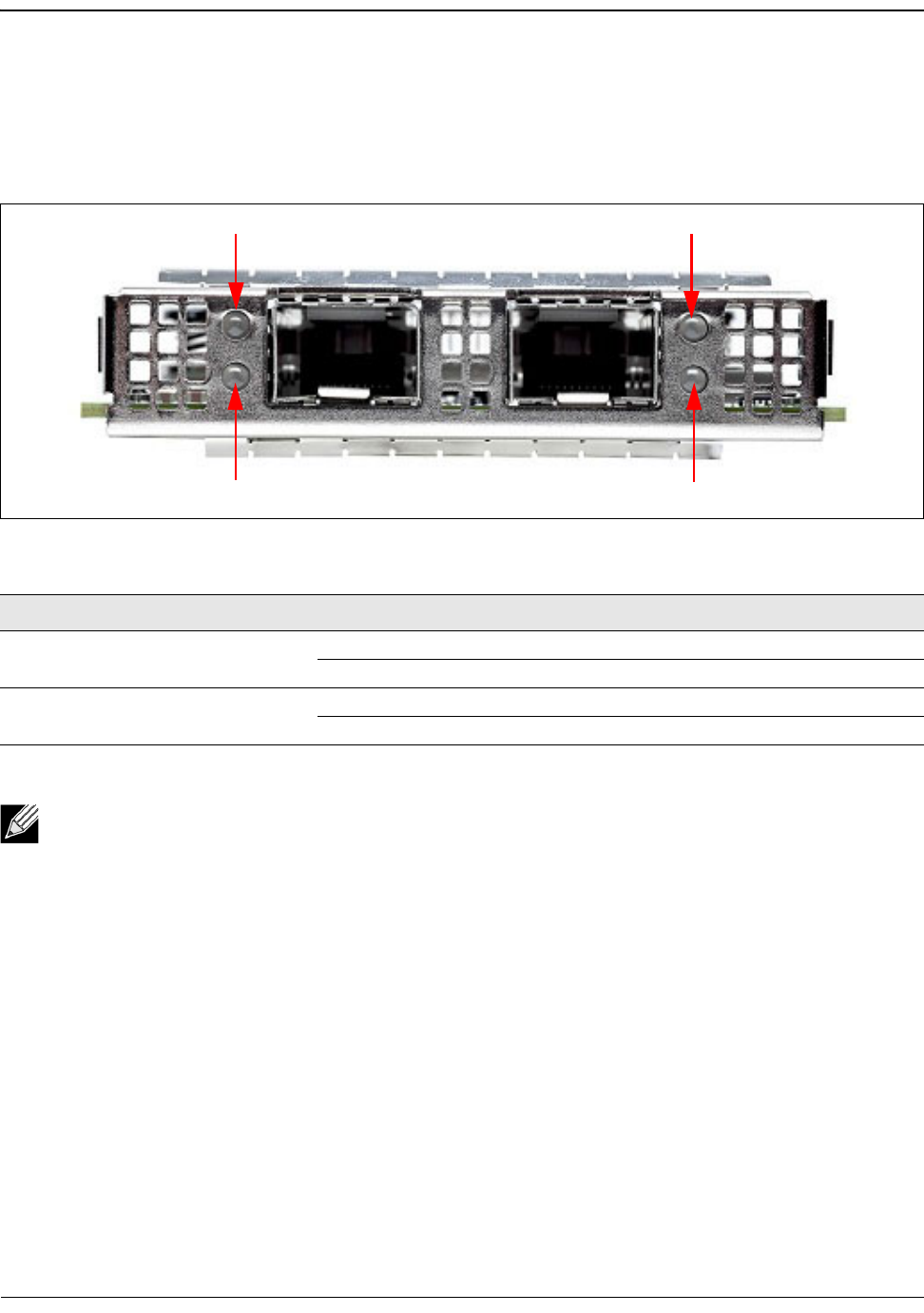

Figure 16: BCM957412N4120DC Network Adapter Activity and Link LED Locations
Table 13: BCM957412N4120DC Network Adapter Activity and Link LED Locations
LED Type Color/Behavior Notes
Activity Off No Activity
Green blinking Traffic Flowing Activity
Link Off No Link
Green Linked at 10 Gbps
Note: When a XTY28 transceiver is connected to a 10 Gbps controller and if the link establishes at
1 Gbps, the link LED is off and the activity LED will blink.
Port 1 Link LED Port 2 Link LED
Port 1 Activity LED Port 2 Activity LED
