Network Link and Activity IndicationNetXtreme-E User’s Manual
September 4, 2019 • NetXtreme-E-UG103 Page 23
BCM957414N4140DC
The SFP+ port supports two LEDs to indicate traffic activities and link speed. The LEDs are shown in Figure 17
and described Tab le 14. Its locations and form factors conform to the OCP 3.0 Design Specification.

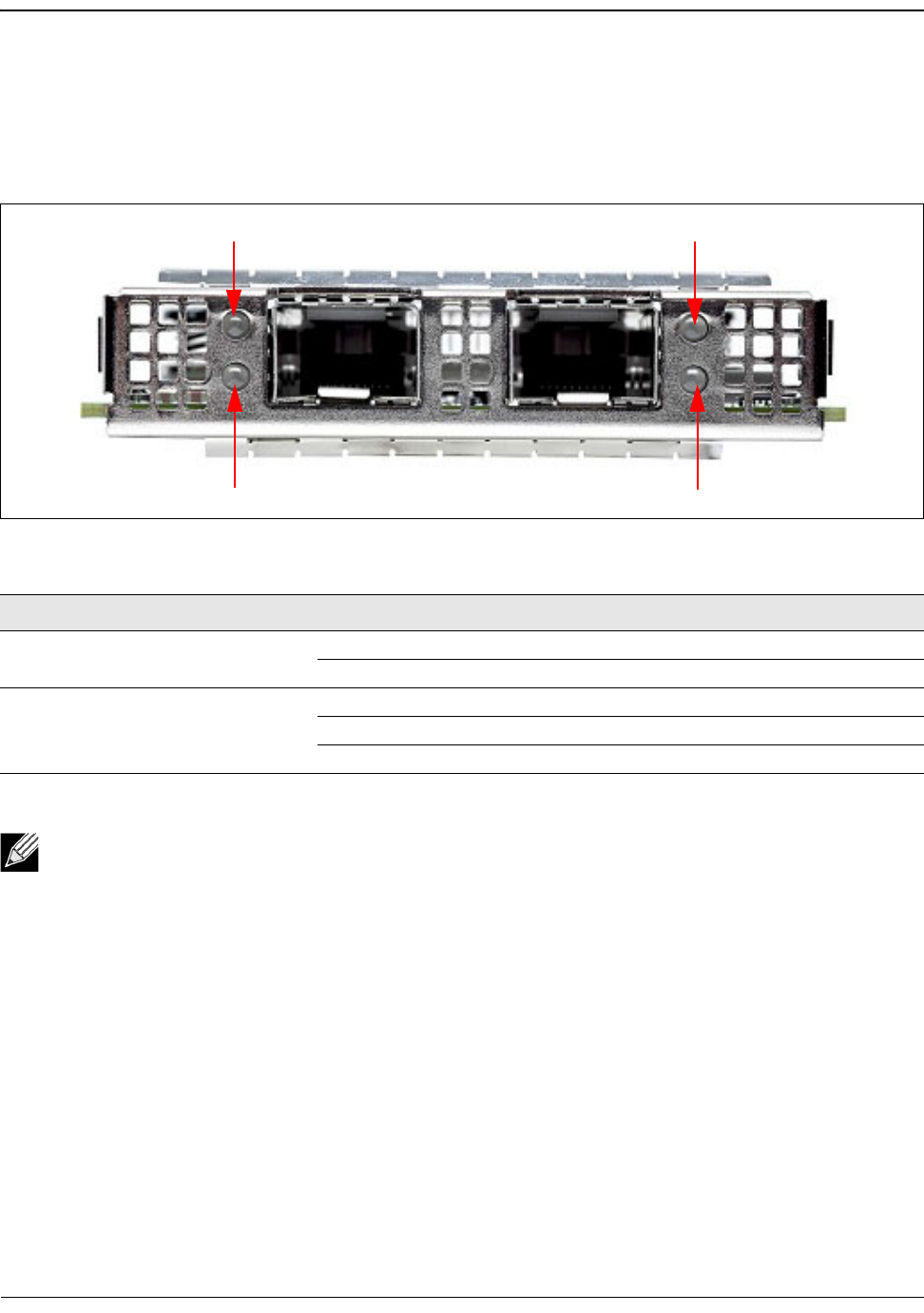

Figure 17: BCM957414N4140DC Network Adapter Activity and Link LED Locations
Table 14: BCM957414N4140DC Network Adapter Activity and Link LED Locations
LED Type Color/Behavior Notes
Activity Off No Activity
Green blinking Traffic Flowing Activity
Link Off No Link
Green Linked at 25 Gbps
Amber Linked at 10 Gbps
Note: When a XTY28 transceiver is connected to a 25 Gbps controller and if the link establishes at
1 Gbps, the link LED is off and the activity LED will blink.
Port 1 Link LED Port 2 Link LED
Port 1 Activity LED Port 2 Activity LED
