Installation Guide

ManualsBrandsDelta ManualsBar & Prep Faucets28716LF-SS

Model/Modelo/Modèle

28716LF

Series/Series/Seria

TWO HANDLE BAR FAUCETS

LLAVES DE DOS MANIJAS (MANERALES)

PARA BARES

ROBINETS À DEUX MANETTES POUR

ÉVIER DE BAR

Write purchased model number here.

Escriba aquí el número del modelo comprado.

Inscrivez le numéro de modèle ici.

You may need / Usted puede necesitar / Articles dont vous pouvez avoir besoin:

For easy installation of your Delta faucet

you will need:

・

READ ALL

the instructions completely before

beginning.

・

READ ALL

warnings, care and maintenance

information.

・

To purchase the correct

water supply hook-up.

Para instalación fácil de su llave Delta

usted necesitará:

・

LEER TODAS

las instrucciones completamente

antes de empezar.

・

LEER TODAS

los avisos, cuidados, e información

de mantenimiento.

・

Comprar las conexiones correctas para el

suministro de agua.

Pour installer votre robinet Delta

facilement, vous devez:

・

LIRE TOUTES

les instructions avant de débuter.

・

LIRE TOUE LES

les avertissements ainsi que toutes

les instructions de nettoyage et d’entretien.

・

Acheter le bon

nécessaire de raccordement.

www.deltafaucet.com

4/27/15 Rev. A

87654

1/8" (3.2 mm)

Summary of content (6 pages)

PAGE 1

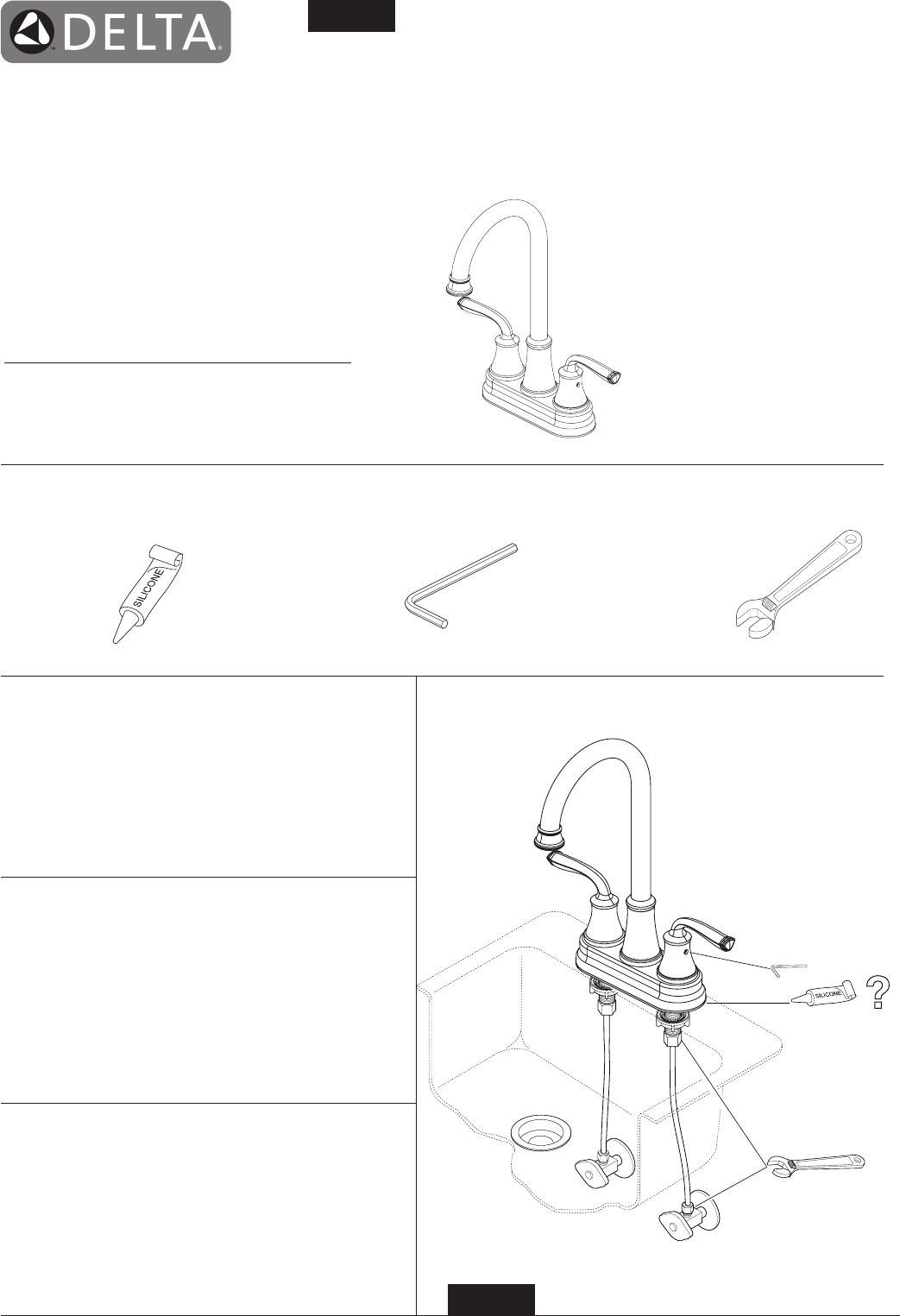

TWO HANDLE BAR FAUCETS 87654 LLAVES DE DOS MANIJAS (MANERALES) PARA BARES Model/Modelo/Modèle 28716LF Series/Series/Seria ROBINETS À DEUX MANETTES POUR ÉVIER DE BAR Write purchased model number here. Escriba aquí el número del modelo comprado. Inscrivez le numéro de modèle ici. You may need / Usted puede necesitar / Articles dont vous pouvez avoir besoin: 1/8" (3.2 mm) For easy installation of your Delta faucet you will need: ・To READ ALL the instructions completely before beginning.
PAGE 2
1 2 1 1 2 A B SHUT OFF WATER SUPPLIES. Remove old faucet. Place gasket (1) on bottom of new faucet. Place faucet through mounting holes in sink. Option: If sink is uneven, use silicone under the gasket (1). Secure faucet to sink using locknuts (2) provided. Make connnections to water lines. Use 1/2" IPS faucet connections (A) or use the coupling nuts (1) (not supplied) with 3/8" O.D. ball-nose risers (B). CIERRE LOS SUMINISTROS DE AGUA. Quite la llave vieja.
PAGE 3
2 1 2 3 Remove aerator (1) and turn faucet handles (2) all the way on. Turn on hot and cold water supplies (3) and flush water lines for one minute. Important: This flushes away any debris that could cause damage to internal parts. Check all connections at arrows for leaks. Re-tighten if necessary, but do not overtighten. Quite el aireador (1) y gire las manijas de la llave (2) completamente a la posición abierta.
PAGE 4
6 3 1 2 Maintenance SHUT OFFWATER SUPPLIES If faucet leaks from spout: Replace Stem Unit (1)* and Seats and Springs (2), Repair Kit RP81854. If faucet leaks from around spout bonnet: Replace O-Rings (4), Repair Kit RP81851 ( page 5). If faucet exhibits very low flow: A. Remove and clean Aerator (5) RP81850 (page 5), or B. Clean Seats and Springs (2) of any debris *Install stems (1) correctly for proper handle rotation.
PAGE 5
▲ Specify Finish Especifíque el Acabado Précisez le Fini RP81853▲ Handle Assembly Conjunto de manija Montage de la manette 5 RP81850▲ Aerator Aireador Aérateur 6 RP20547 4 Retention Screws Note: These screws must be installed into the hole in the top of the stem unit assemblies (1) when using handles mounted from the sides.
PAGE 6
CLEANING AND CARE Care should be given to the cleaning of this product. Although its finish is extremely durable, it can be damaged by harsh abrasives or polish. To clean, simply wipe gently with a damp cloth and blot dry with a soft towel.
