Displays
5-8
6700-A2-GY31-70
July 1999
H Define User View
Choose Define User View from the Action pull-down menu to assign the
current view as one of the six user-defined views, or to delete an existing
user view. Follow the procedure below.
" Procedure
1. Ensure that the current view is the one desired to be defined as one of the
user views. See the
Zoom In
and
Zoom Out
sections of this chapter for
additional information on changing the view.

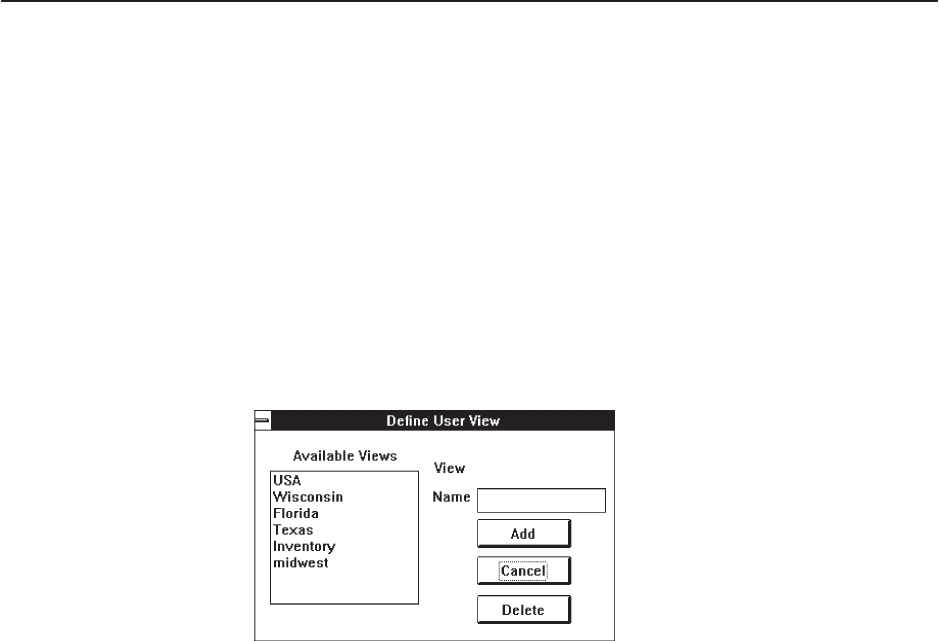

2. Choose Define User View from the Action pull-down menu. A Define User
View dialog box appears.
3. Select one of the Available Views listed.
4. Type the name in the Name field if different from the one selected.
5. Choose Add.
Once a view is assigned as a user-defined view, it can be redefined or removed.
Use the View command to display a new view.
To delete an existing user view:
" Procedure
1. Choose Define User View from the Action pull-down menu. A Define User
View dialog box appears.
2. Select the view you wish to delete.
3. Choose Delete.
