Unplaced
Select Unplaced from the Network Map menu bar to access the Unplaced
pull-down menu. The Unplaced commands allow you to select unplaced sites,
hunt groups, or devices and locate them on the Geographic Map. The Unplaced
menu is inactive (gray) if all the sites, hunt groups, and devices have locations in
the network configuration.
Choose Place Site from the Unplaced pull-down menu to place a site or hunt
group on the current view. The Place Site command is inactive (gray) if all sites
are placed. Before placing a site, be sure the view currently displayed shows the
desired resolution and location. Use the View command to change the view and
the Action command to zoom in or out. The Update Coordinates command
allows you to enter or change the geographic coordinates, including country,
area/exchange city code, latitude, and longitude for a device.
To place a site:
Procedure

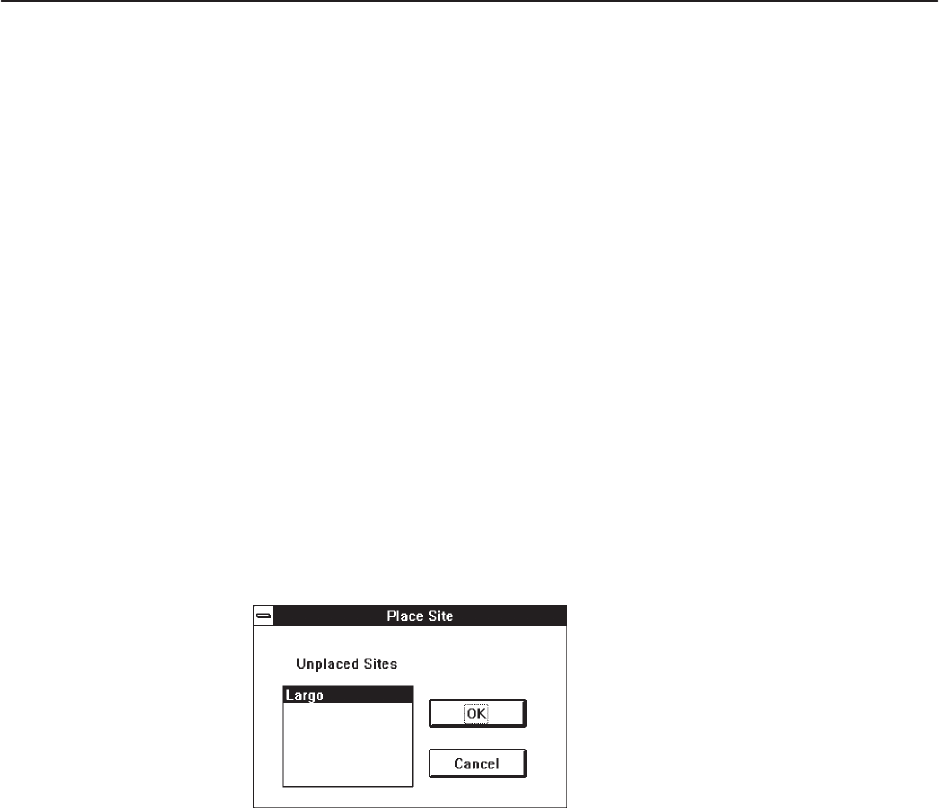

1. Choose Place Site from the Unplaced pull-down menu. A Place Site dialog
box appears with a list box containing the unplaced sites and hunt groups.
2. Select a site or hunt group from the list box.
3. Choose OK.
4. The dialog box closes and the mouse pointer changes to a site icon. Move
the icon to the desired view location.
5. Click the left mouse button. The site is now placed and the site’s name is
removed from the Unplaced Sites list box.
Choose Place Device from the Unplaced pull-down menu to place a device on
the currently displayed view. The Place Device command is inactive (gray) if all
devices are placed. Before placing a device, be sure the view currently displayed
shows the desired resolution and location. Use the View command to change the
view currently displayed and the Action command to zoom in or out.
