Displays
5-11
6700-A2-GY31-70
July 1999
To place a device:
Procedure

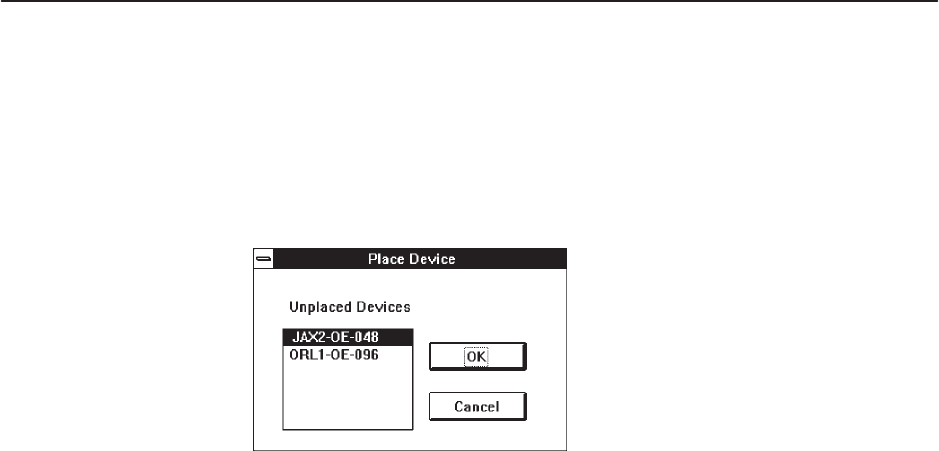

1. Choose Place Device from the Unplaced pull-down menu. A Place Device
dialog box appears with a list box containing the unplaced devices.
2. Select a device from the list box.
3. Choose OK.
4. The dialog box closes and the mouse pointer changes to a device icon. Move
the icon to the desired view location.
5. Click the left mouse button. The device is now placed and the device’s name
is removed from the Unplaced Devices list box.
Devices and sites may also be placed using the network configuration portion of
NMS. See
Configuring a Network Site
and
Configuring a Device
in Chapter 4,
Configuration
.
The Update Coordinates menu item is only enabled after performing Move
Selection, Place Device, or Place Site function.
