Carrier Monitor
The Carrier Monitor commands allow you to view the status of all
carrier-mounted devices, acknowledge and clear alerts, display information about
a specific carrier or device, place a device into (or remove a device from) a busy
state, and change a device’s connection to a service line.

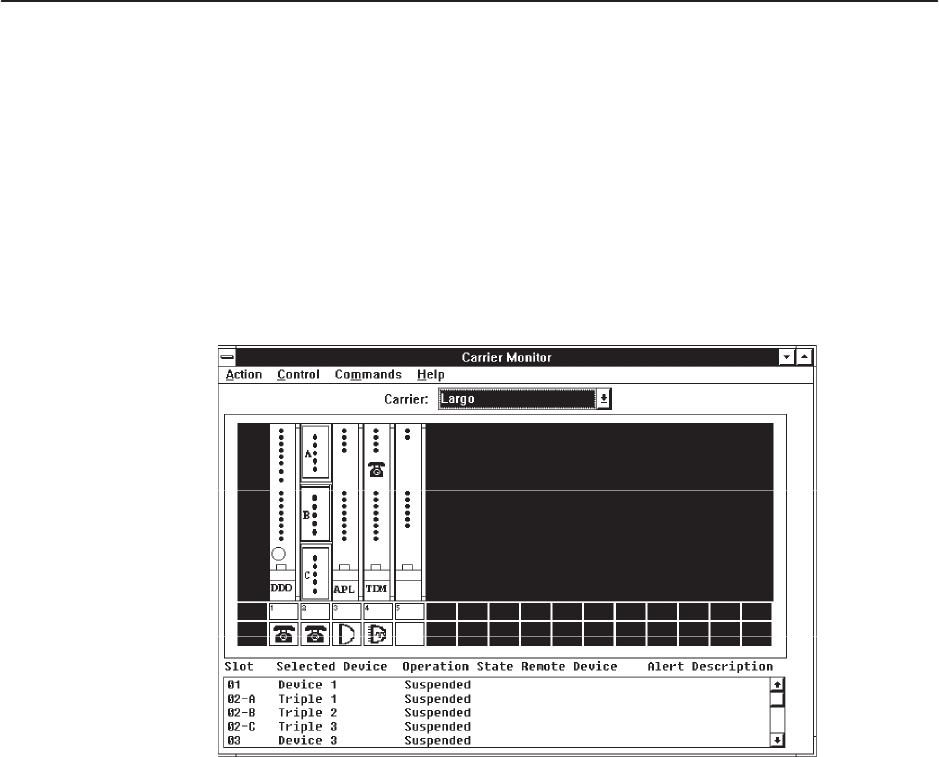

Select Carrier Monitor from the Displays pull-down menu, or select the Carrier
Monitor icon in the toolbar; the Carrier Monitor window displays information about
a device’s operational state, device configuration, and device status.
The Carrier Monitor window is a split window. The upper portion displays the
menus Action, Control, and Commands, and a pictorial diagram of the carrier.
The lower portion displays a listing of information on all the devices.
Each device uses the appropriate alert color. If the device is either suspended or
in inventory, the appropriate color will be used. See
System Colors
on page 5-4.
Empty slots use the empty carrier slot color and unsupported devices use the
unsupported device color.
Changing the Carrier Name
The Carrier field displays the name of the current carrier.
Procedure
1. Choose the arrow to the right of the Carrier field. The drop-down list box
containing the names of all the carriers in the network appears.
2. Select a carrier name. The selected name appears in the Carrier field.
