Displays
5-22
6700-A2-GY31-70
July 1999
Commands
Select Commands from the Alert Monitor menu bar to access the Device
Management window or a device information dialog box.
Device Management (DevMgt)
Select DevMgt from the commands menu to access the Device Management
window. This menu is inactive (gray) unless an alert(s) is selected. All
selected devices appear in the device selection list. See Chapter 7,
Device
Management
, for additional information.
Information (Info)
Select Info from the Commands menu to open a device information dialog
box. This menu is inactive (gray) unless a single alert is selected.

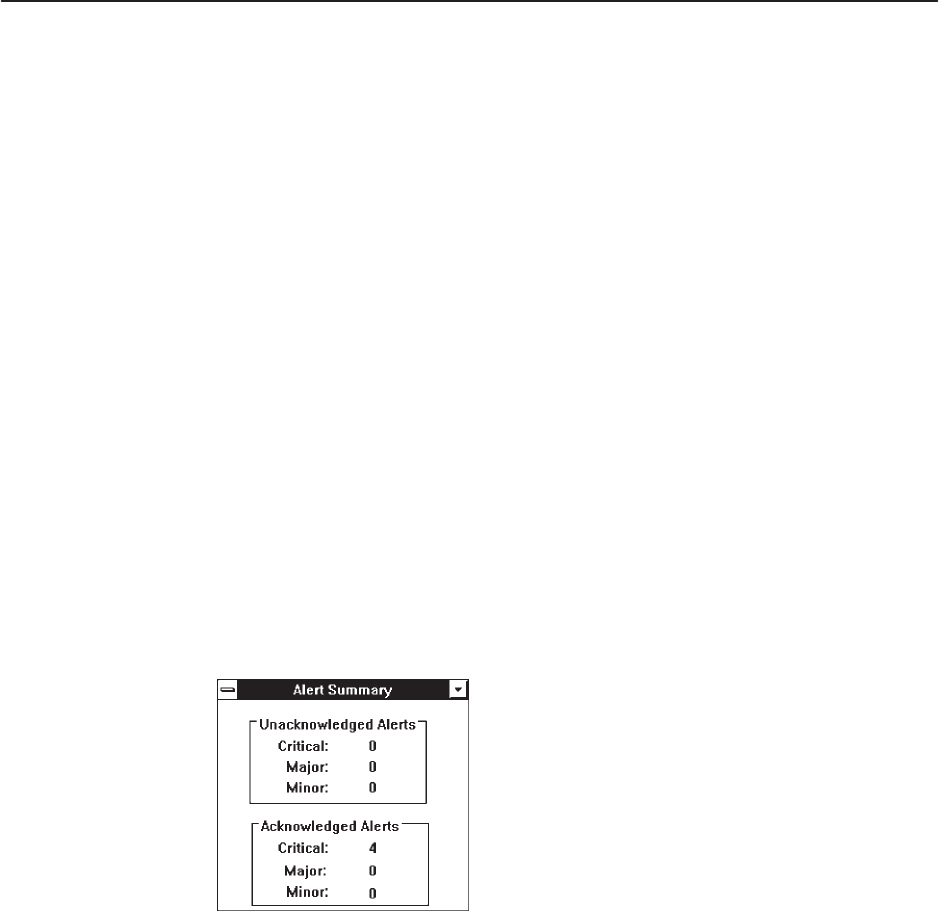

Alert Summary
The Alert Summary command allows you to view a summary of all alerts.
Select Alert Summary from the Displays pull-down menu. The Alert Summary
window shows a summary listing of the number of unacknowledged and
acknowledged alerts for each type of alert.
Hunt Group Monitor
The Hunt Group Monitor commands allow you to view the status of devices
assigned to a Hunt Group, acknowledge and clear alerts, display information
about a specific hunt group or device, and place a device into or remove a device
from a busy state.
Select Hunt Group Monitor from the Displays pull-down menu. The Hunt Group
Monitor window displays information about a Hunt Group’s operational state,
device configuration, and device status.
