Statistics
6-3
6700-A2-GY31-70
July 1999

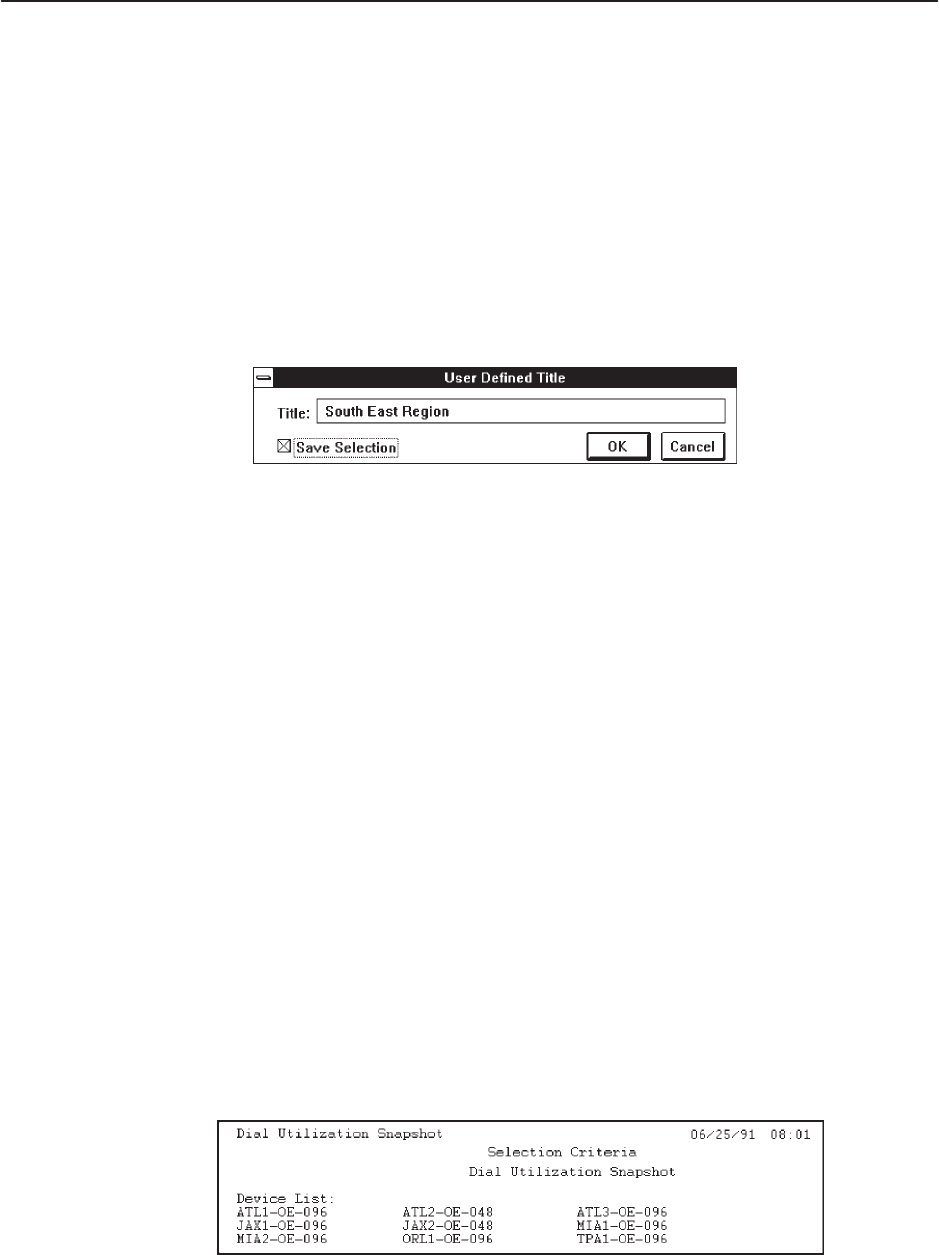

User Defined Titles
You can create individual titles for each Statistics chart or data display. The title
appears above the chart or data display when it is displayed or printed.
Procedure
1. Select Selection from the menu bar of the current Statistics window.
2. Choose User Defined Title from the Selection pull-down menu to display the
User Defined Title dialog box.
3. Enter the desired name in the Title field (maximum 40 characters).
4. Select the Save Selection check box to make the current title the default
title. The new title displays each time the chart or data displays. Each user
can save a unique title for each window. If the Save Selection check box is
not selected, the title is used until the window is closed and then the default
title is restored.
5. Choose OK.
Printing Statistics
You can print the information section of any Statistics window. The print function
is similar to the screen print function except that the title and menu bars are not
printed and a header page is provided.
To print the displayed chart or data, select Print from the current Statistics window
menu bar.
Each printout is composed of two sections: a Selection Criteria page (header
page) followed by the information displayed in the current window.
The Selection Criteria page contains a listing of the selected devices. Any
additional information supplied in the Selection Criteria page is discussed in the
Print section of each Statistics command.
