Statistics
6-5
6700-A2-GY31-70
July 1999

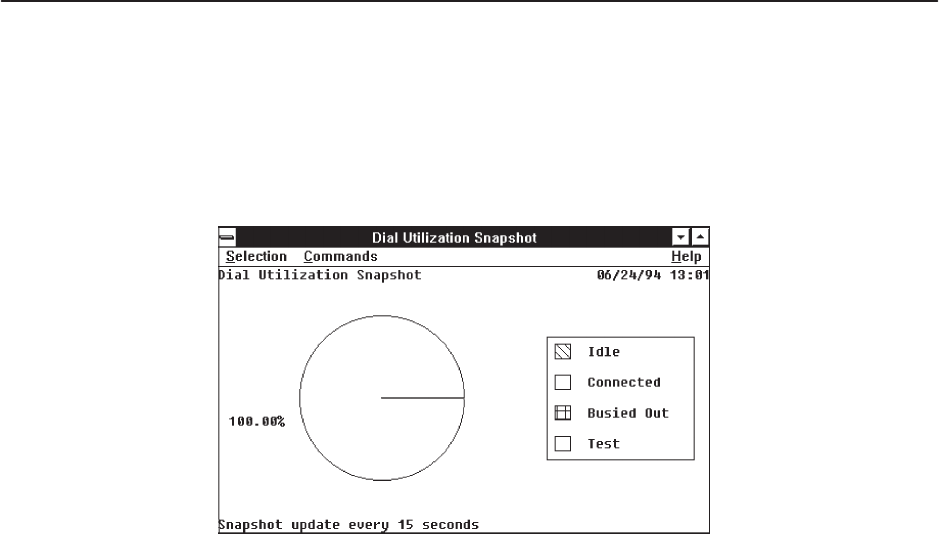

Once the devices are selected and the data collection process begins, the pie
chart appears. Above the pie chart is the chart title, date and time. Displayed
below the chart is the snapshot frequency. To the right of the chart is a legend
indicating the colors and patterns for each mode. See
Defining System Colors
in
Chapter 4,
Configuration
, for additional information on system colors.
Selection
Use Selection to designate the devices to be included in the chart, change the pie
chart title, or change the snapshot frequency. Select Selection from the Dial
Utilization Snapshot menu bar to display the Selection pull-down menu listing the
commands Device Selection, User Defined Title, and Snapshot Frequency.
Device Selection
Use Device Selection to select the devices to be included in the Dial
Utilization Snapshot pie chart. See
Selecting Devices
on page 6-2 for
additional information on selecting devices. Remember that all devices in the
device selection list are used for the Dial Utilization Snapshot chart.
User Defined Title
Use User Defined Title to change the title of the Dial Utilization Snapshot
chart. See
User Defined Titles
on page 6-3 for additional information on
changing the title.
Snapshot Frequency
Use Snapshot Frequency to change the snapshot frequency (time interval
between samples). The current snapshot frequency value appears in the
lower left section of the window. Follow the procedure below.
