" Procedure

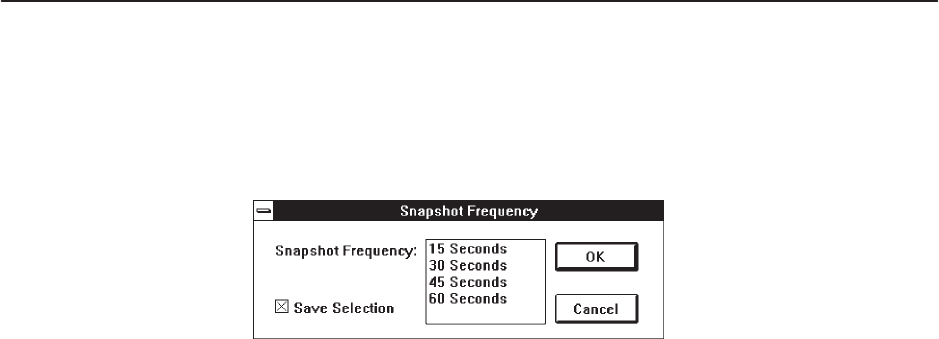

1. Choose Snapshot Frequency from the Selection pull-down menu. The
Snapshot Frequency dialog box appears.
2. Select the time interval from the times in the list box.
3. Select the Save Selection check box to make the current snapshot
frequency the default. The new interval is used each time the Dial Utilization
Snapshot pie chart is displayed. Each user can save a unique snapshot
frequency for the Dial Utilization Snapshot window. If the Save Selection
check box is not selected, the snapshot frequency is used until the Dial
Utilization Snapshot window is closed and then the default snapshot
frequency is restored.
4. Choose OK.
Commands
Use the Commands pull-down menu to access commands to collect, pause, and
print dial utilization snapshots.
H Collect
Use Collect on the Commands pull-down menu to start or continue the chart
updating process. Collect is inactive (gray) unless one or more devices are
selected. When you choose Collect, the following occurs:
— The chart is updated.
— Print and Pause become active.
— Collect becomes inactive.
— The information displayed in the window is updated at an interval equal to
the snapshot frequency.
H Pause
Use Pause on the Commands pull-down menu to stop the chart updating
process. When you choose Pause, the following occurs:
— The chart update process is suspended.
— Collect becomes active.
— Pause becomes inactive (gray).
