Statistics
6-7
6700-A2-GY31-70
July 1999
Print
Use Print on the Commands pull-down menu to print the Dial Utilization
Snapshot chart and associated data. This command is inactive (gray) unless
a chart is displayed. See
Printing Statistics
on page 6-3 for additional
information.
Connect Time Utilization Monitor
The Connect Time Utilization Monitor command allows you to monitor and
display the percentage of time one or more devices were connected to other
devices across a dial line during the previous hour. These percentages are
displayed in horizontal bar chart format. The bar chart information is upgraded at
a user-defined rate (snapshot frequency).

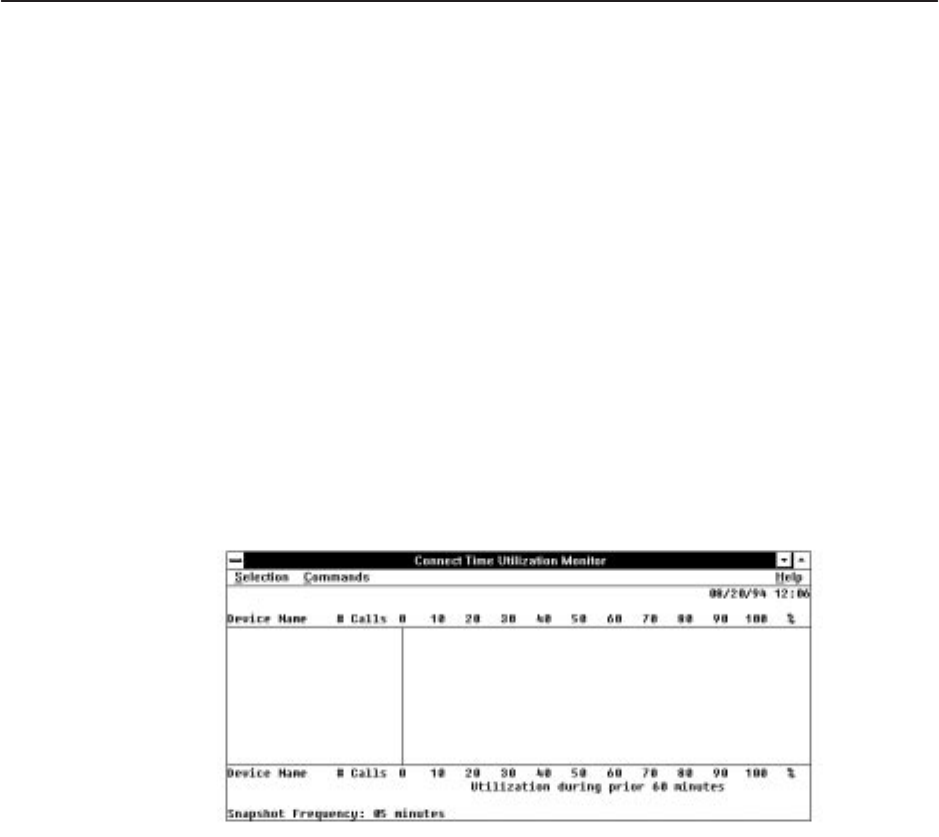

Choose Connect Time Utilization Monitor from the Statistics pulldown menu to
display the Connect Time Utilization Monitor window. Displayed in the menu bar
are Selection and Commands.
Once a device is selected and the data collection process begins, the horizontal
bar chart and associated data are displayed. Each horizontal line shows the
device name, the number of calls in the previous hour, a bar chart indicating the
percentage of time the device was connected over the previous hour, and the
actual percentage value of the bar chart. Above the chart is the chart title, date
and time. Displayed below the chart is the snapshot frequency.
