Statistics
6-10
6700-A2-GY31-70
July 1999
Information (Info)
Use Info on the Commands pull-down menu to access the Device Information
dialog box. This command is inactive (gray) unless a device is selected.
Displayed in the dialog box is information about the currently selected device.
See
Information Display
in Appendix A,
NMS Windows Conventions
, for
additional information.
Print
Use Print on the Commands pull-down menu to print the Connect Time
Utilization Monitor chart and associated data. This command is inactive
(gray) unless a chart is displayed. See
Printing Statistics
on page 6-3 for
additional information.
Daily Historical Utilization
The Daily Historical Utilization command uses a vertical bar chart to indicate
the percentage of time selected local devices are in use during each hour of the
day.
The daily information is an accumulation over a user-defined period for selected
days. For example, the Daily Historical Utilization window can display the hourly
usage for Monday through Friday during the 30-day period of June 1 to July 1.

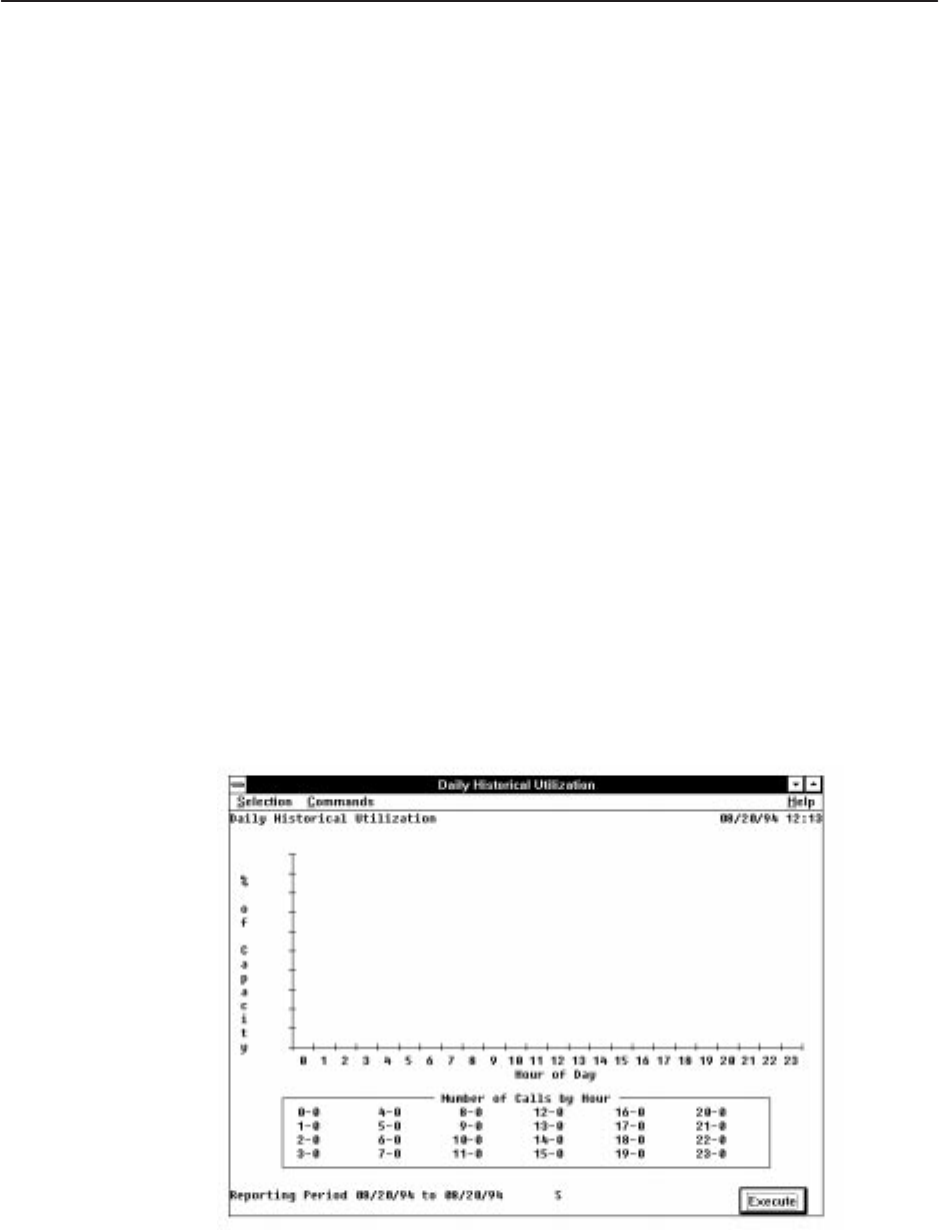

Select Daily Historical Utilization from the Statistics pull-down menu to display the
Daily Historical Utilization window. Displayed in the menu bar are Selection and
Commands. The Execute button is inactive (gray) until a device(s) and time
period are selected.
