Statistics
6-11
6700-A2-GY31-70
July 1999

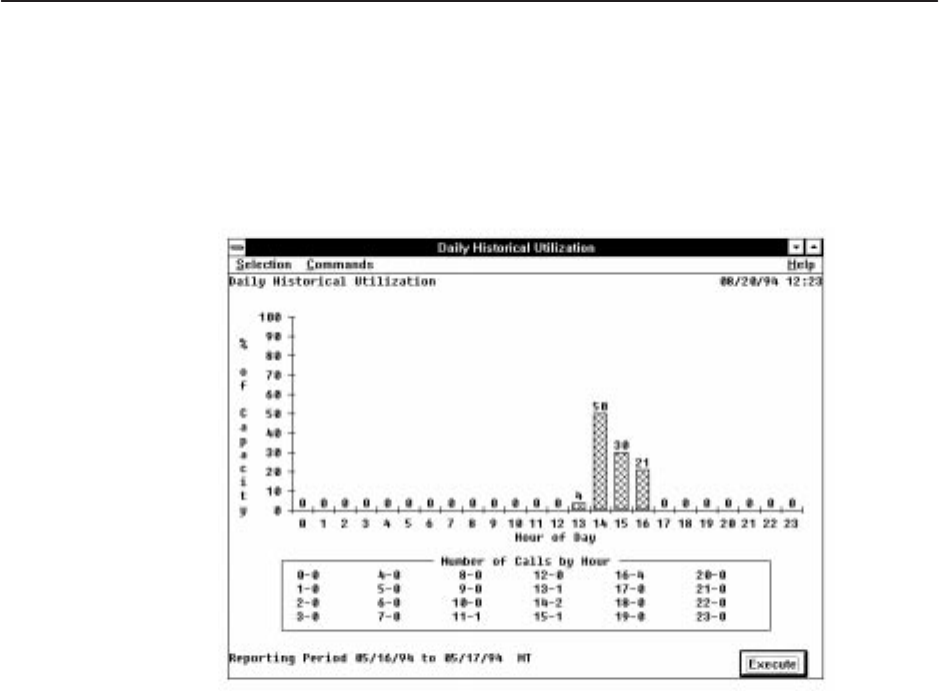

After the device(s) and period have been selected, choose Execute to display the
Daily Historical Utilization chart. The chart indicates the percentage of usage for
the selected devices. The list below the chart displays the actual number of calls
per hour. The reporting period and selected days of the week are displayed along
the lower portion of the window.
Selection
Use Selection to designate the devices to be included in the chart title, or change
the report period. Select Selection from the Daily Historical Utilization menu bar to
display the Selection pull-down menu listing the commands Device Selection,
User Defined Title, and Select Report Period.
Device Selection
Use Device Selection to select one or more devices to be represented in the
Daily Historical Utilization chart. See
Selecting Devices
on page 6-2 for
additional information. All devices in the device selection list are used for the
Daily Historical Utilization chart.
User Defined Title
Use User Defined Title to change the title of the Daily Historical Utilization
chart. See
User Defined Titles
on page 6-3 for additional information on
changing the title.
Select Report Period
Use Select Report Period to specify or change the days included in the chart.
Follow the procedure below.
