Statistics
6-12
6700-A2-GY31-70
July 1999
" Procedure

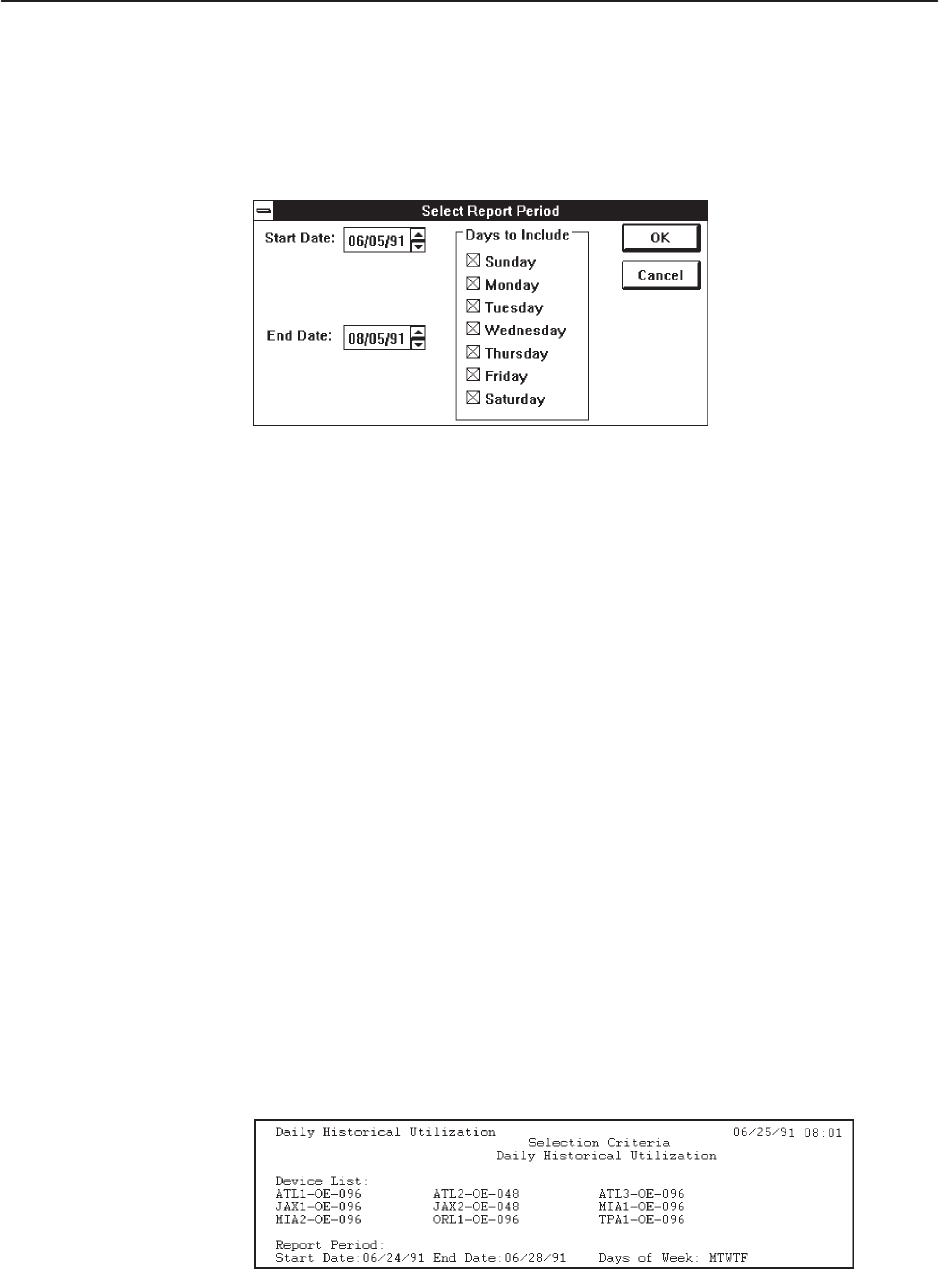

1. Choose Select Report Period from the Selection pull-down menu. The Select
Report Period dialog box appears.
2. Select the start date by using the scrolling Start Date field to set each part of
the date (month, date, year). The current date is the default start date. See
Date Field
in Appendix A,
NMS Windows Conventions
, for additional
information on scrolling date fields.
3. Select the end date by using the scrolling End Date field to set each part of
the date (month, date, year). The current date is the default end date.
4. From within the Days to Include list box, select which days of the week to
include in the graph. The days of the week not included in the data range are
inactive (gray). The default day is the current day of the week.
5. Choose OK.
Commands
Select Commands on the Daily Historical Utilization menu bar to access the Print
command.
H Print
Use Print on the Commands pull-down menu to print the Daily Historical
Utilization chart and associated data. This command is inactive (gray) unless
a chart is displayed. See
Printing Statistics
on page 6-3 for additional
information.
In addition to the device list, the Selection Criteria page contains the start
date, end date, and the selected days of the week.
