User`s guide

Statistics
6-18
6700-A2-GY31-70
July 1999
2. Use the drop-down list boxes to change any of the displayed times. When
selected, each drop-down list box displays a list of the period values: 5
seconds to 60 minutes, greater than 60 minutes, and Off (Period 1 cannot be
set to Off). Use the scroll bar to select the desired value. The symbol ‘‘<=”
means equal to or less than,‘‘>” means greater than, and ‘‘Off” means that
the period is not used.
Each period must be longer than the next. Period 1 should be the shortest,
Period 10 the longest period.
If you do not want to use all ten periods, set one or more periods to Off. Turn
the periods Off in reverse order, starting with Period 10 first, then Period 9,
and Period 8, etc. For example, if seven periods are to be used, set Periods 8
through 10 to Off.
3. Select the Save Selection check box to make the new periods the default
periods. The new periods are used each time the Call Duration Distribution
window displays. Each user can save a unique set of periods for the Call
Duration Distribution window. If the Save Selection check box is not
selected, the current periods are used until the Call Duration Distribution
window is closed and then the default periods restore.
4. Choose OK.
Commands
Use the Commands pull-down menu on the Call Duration Distribution menu bar
to access the Print command.
 Print
Use Print to print the Call Duration Distribution chart and associated data.
This menu is inactive (gray) unless a chart is displayed. See Printing
Statistics
on page 6-3 for additional information.

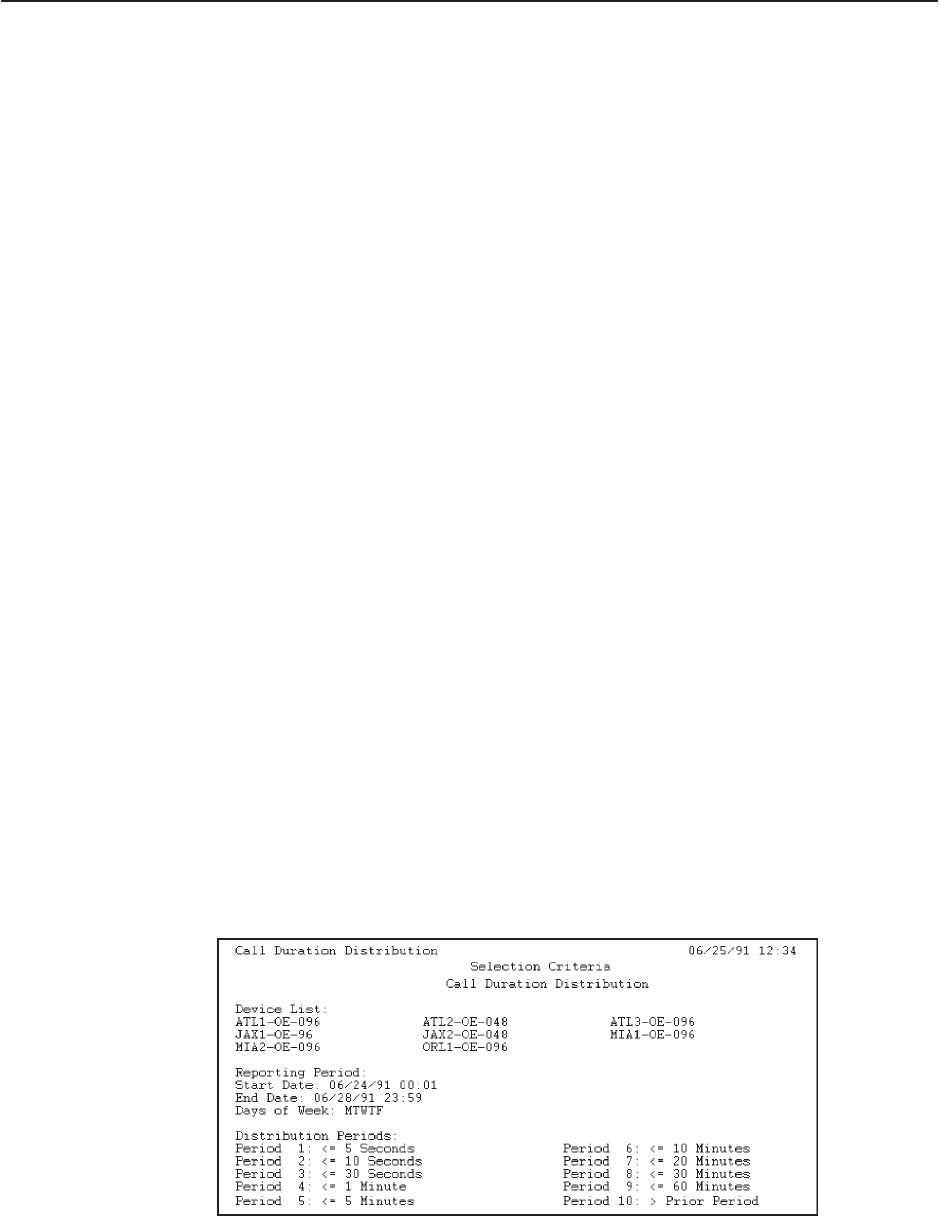

In addition to the device list, the Selection Criteria page contains the start date,
end date, selected days of the week, and selected distribution periods.
