Statistics
6-24
6700-A2-GY31-70
July 1999

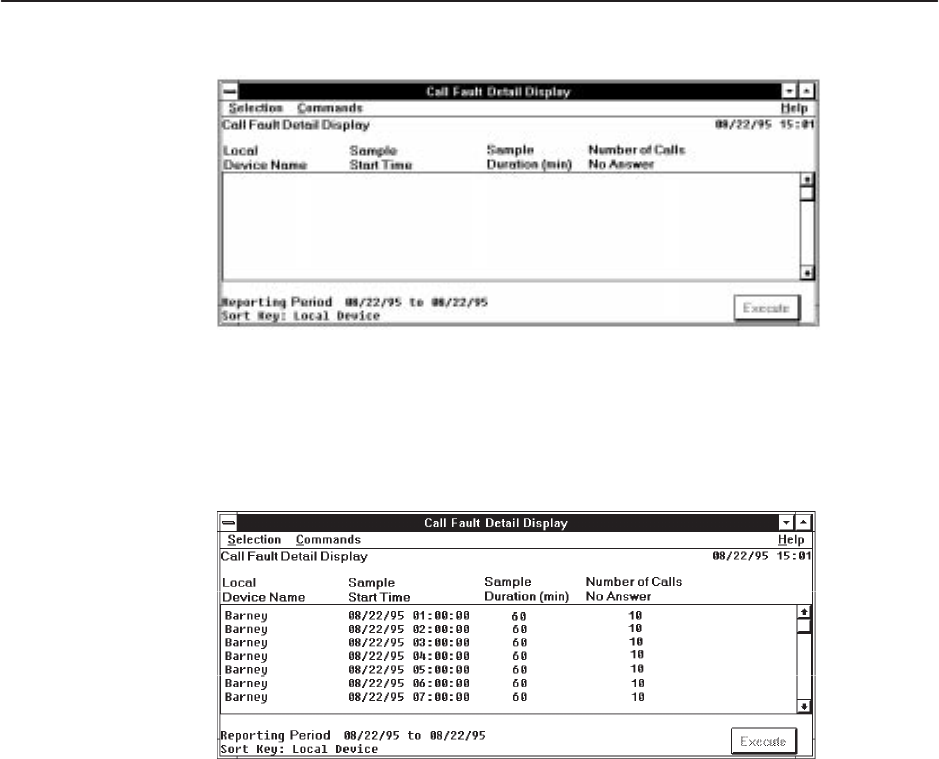

Displayed in the menu bar are Selection and Commands. The Execute button is
inactive (gray) until the device(s) and time period are selected.
After the device(s), time period, and sort field have been selected, choose
Execute to display the Call Fault Statistics Detail Display data.
The display lists the selected device(s), sorted by the designated field. The fields
are as follows:
Local Device Name: The name of the local device associated with the call.
Sample Start Time: The date and start time of the data collection sample
period in hours, minutes and seconds.
Sample Duration (min): The length (in minutes) of the sampling period.
Number of Calls No Answer: The number of times during the sampling
period that the device reported a call fault. A call fault is any call that was not
answered or did not complete successfully. Only information for the selected
sampling period will be stored in the database. If no information is displayed
for a device, then no faults were reported for that device for the selected
period.
Selection and Commands
The Selection command functions the same as Selection command used by Call
Detail Display. See
Selection
on page 6-21. The Commands command functions
the same as Commands command used by Call Detail Display. See
Commands
on page 6-23.
