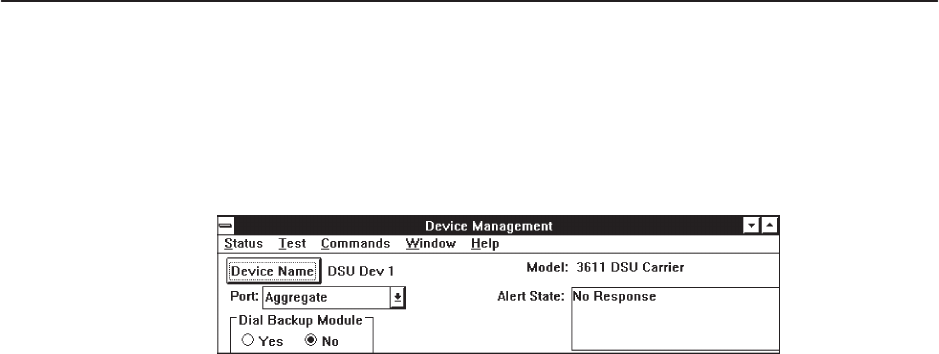

Device Management Window
Before the Device Management commands appear in the menu bar, a supported
device must be selected.
To select a device or change the device currently displayed, choose the Device
Name button. The Device Selection List dialog box appears. Either:
 Type device name in the Enter device field,
 Select a name from the device selection list, or
 Choose Add To Selections to access the Device Name Selection Browser.
See Device Selection in Appendix A, NMS Windows Conventions , for
additional information on using the Selection Browser.
Other fields may appear, depending on the type of device selected.
Device Management Menu Commands
The following is a list of all possible Device Management menu commands with a
brief description of each.
 Status
Allows viewing of the VF impairments and DTE data line (EIA RS-232)
conditions.
 Test
Runs a series of tests on the selected device.
 Commands
Opens the Device Identification window that displays information about the
device, places or disconnects a call using the local device, prints the current
Device Management window and all windows opened from it, lists special
commands for DSU and APL devices, and displays a topographical
representation of a selected device’s connections.
 Window
Allows for changing the method of displaying windows opened from the
current Device Management window or closing all the windows opened from
the current Device Management window.
