Device Test (SELF)
Choose Device Test (SELF) from the Test pull-down menu to run the device’s
self-test. Possible results are Test Passed or Test Failed. The following example
shows the Device Test window before starting the test. Refer to the device’s
user’s guide for a detailed description of device or self-test.

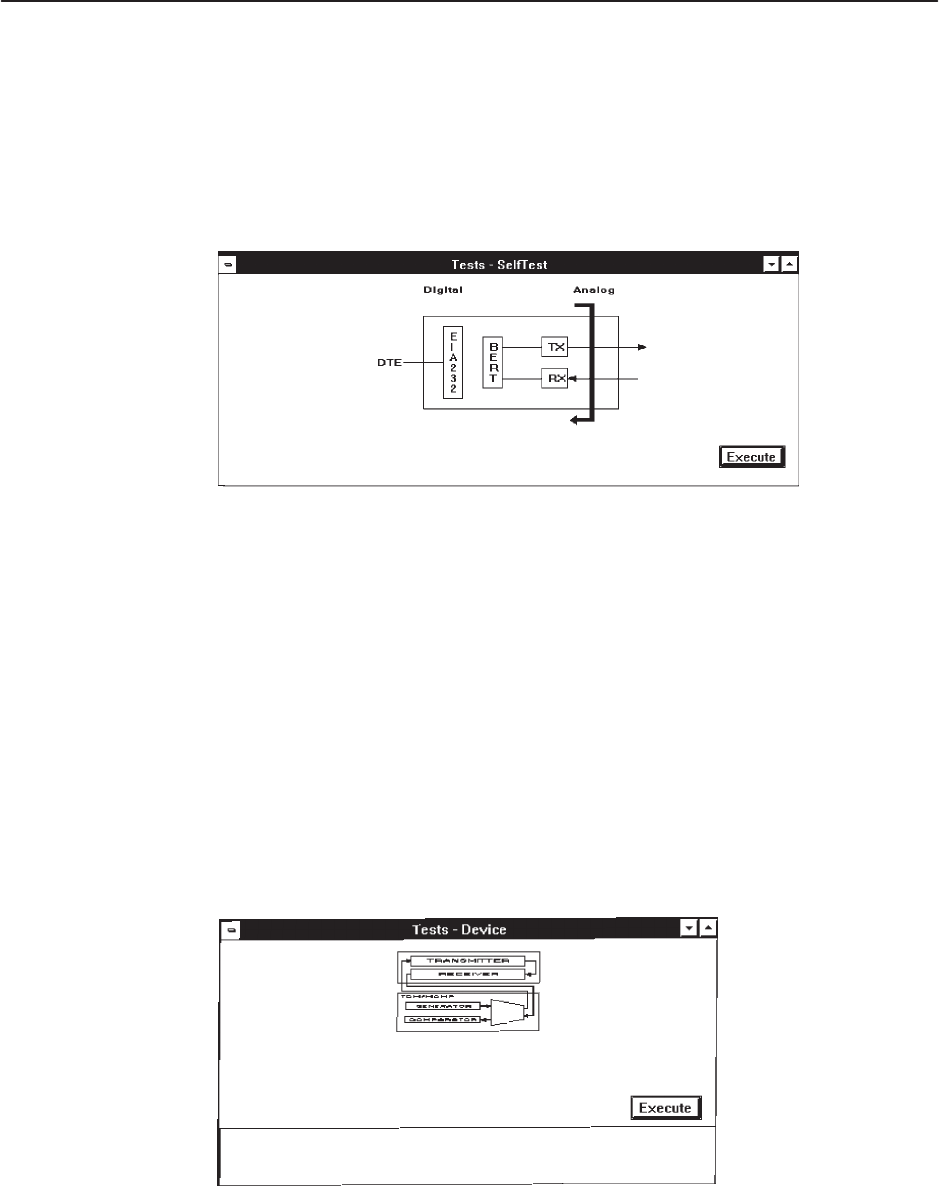

Example Device Test Window for Analog-Type Devices
Digital Test
Choose Digital Test from the Test pull-down menu for digital devices only to test a
pair of DSUs and the digital network circuit between them. A bit pattern is looped
through one tributary device and back to the control device, which checks the
received data for errors.
After selecting Digital Test, a Remote Device selection box appears. Select a
remote device to begin this test (see
Device Selection
in Appendix A,
NMS
Windows Conventions
). The following example shows a Digital Test for a DSU
with no TDM or MCMP.
Example Device Test Window for Digital-Type Devices
