For leased-line devices or a connected dial modem, choose the End To End
command from the Test pull-down menu to cause the local and remote devices to
simultaneously transmit, receive and test for the BERT pattern. A remote device
must be connected before this test can run.
After selecting End-to-End Test, a Remote Device selection box appears for all
leased-line connections. Select a remote device to begin this test.
Before executing this command, you can change the test time for 3800 and
3900 Series devices. Use the scroll arrows in the Duration box to increase or
decrease the time. The test time range is from 30 to 900 seconds (15 minutes) in
10-second increments. From within the Duration box, choose either the up arrow
to increase the time, or the down arrow to decrease the time. For 3600 Series
devices, you can change the number of blocks using the scroll arrows in the
Number of Blocks field. Refer to
Range Field
in Appendix A,
NMS Windows
Conventions
, for more details on using this field.
The following examples show the End-To-End test running.

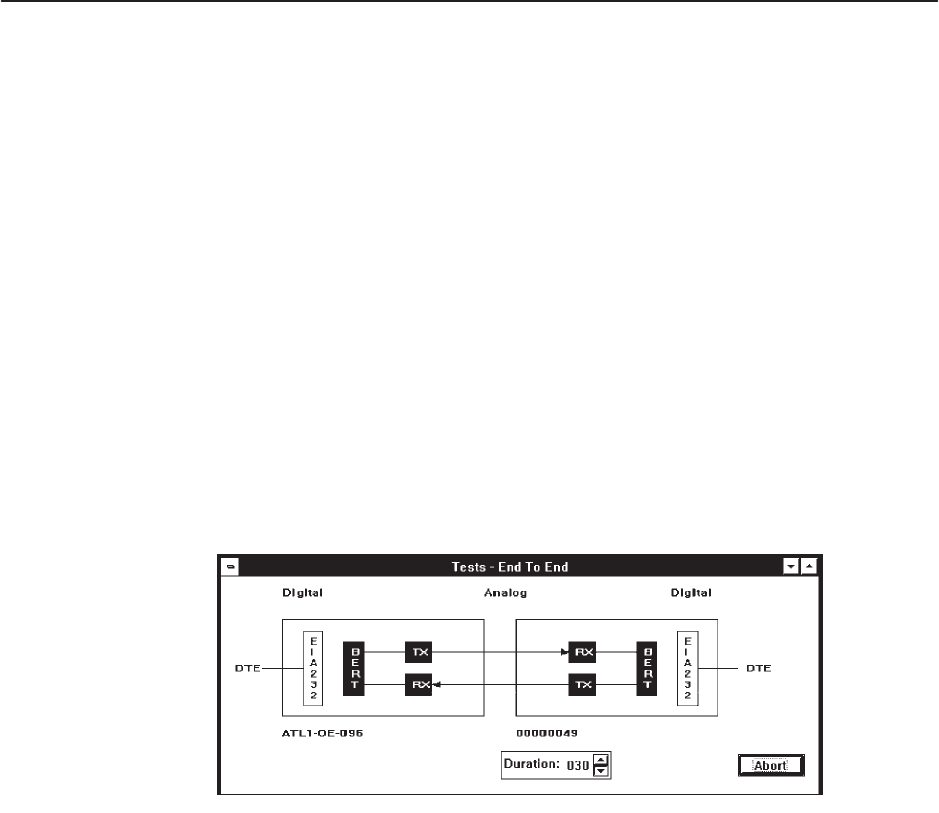

End-To-End Window for Analog-Type Devices
