Device Management
7-18
6700-A2-GY31-70
July 1999
Ring Detect
Choose Ring Detect from the Test pull-down menu to run the Ring Detect test.
This test causes the selected local device to look for a ring tone for a maximum of
30 seconds before terminating the test.

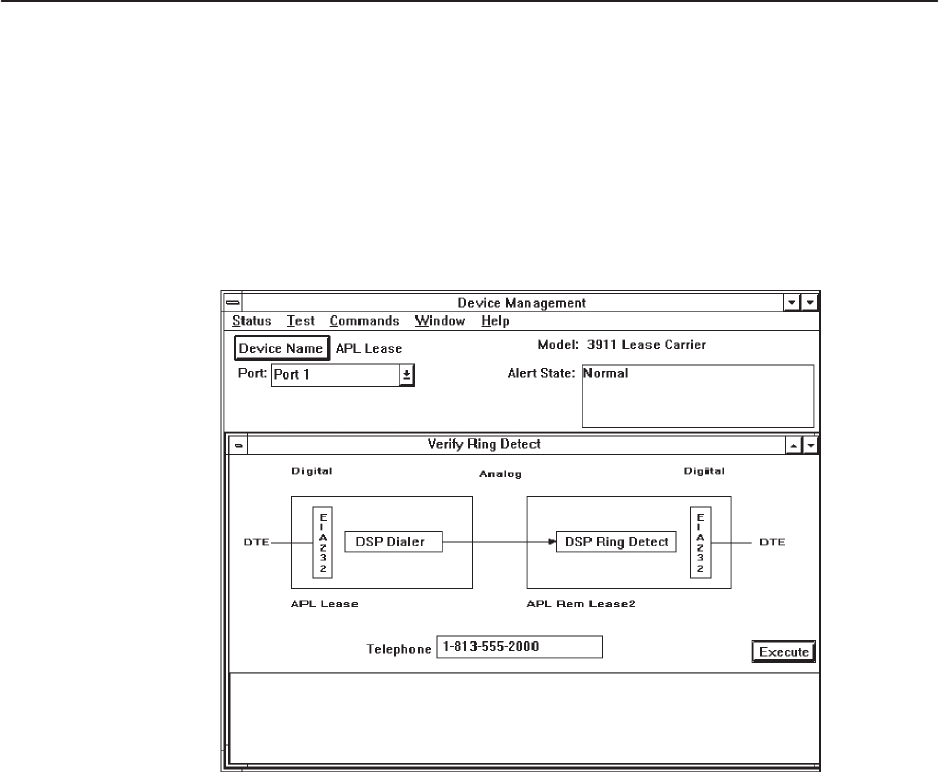

After choosing Ring Detect from the Test pull-down menu, select the desired local
device. The Ring Detect Test Window appears.
Enter the telephone number to be used to ring the remote device to begin the
test. Once the remote device acknowledges that the test is running, the local
device dials the remote device using the entered telephone number. The DSP
Dialer and the DSP Ring Detect areas change color to indicate that a test is in
progress.
Once a ring is detected, the call is canceled and the test results are Dial Ring
was Detected. If no ring is detected within the allotted time, the test is aborted
and the test results are No Ring Detected.
Abort Selective Test
Choose the Abort Selective Test command from the Test pull-down menu to abort
any test running on the selected device. This command aborts any test
regardless of how the test was initiated.
The duration of a test depends on the number of devices assigned to the control
channel or the number of installed remote devices.
