Device Management
7-22
6700-A2-GY31-70
July 1999

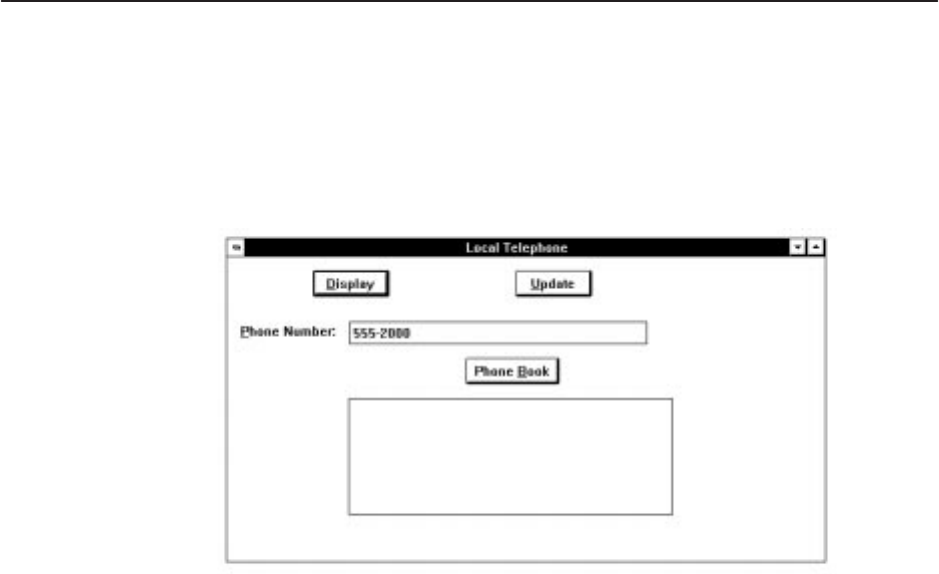

Local Telephone
Choose Local Telephone from the Commands pull-down menu to display or
change the local telephone assigned to the DBM using the Local Telephone
window. This command is only available to DSU devices with a DBM installed.
The current telephone number is read from the device and displayed in the
Phone Number field. You can change this phone number, if desired.
Choose Display to read the current telephone number from the device. Choose
Update to send the new phone number that you have entered, either by typing a
number into the Phone Number field or by selecting a number from the Phone
Book to the device. See Chapter 4,
Configuration,
for additional information about
the Phone Book.
Report Terminal Power
Choose Report Terminal Power from the Commands pull-down menu to
determine if the terminal connected to a data channel is powered on. The device
checks for a voltage level on its Request to Send (RTS) lead and a dialog box
appears with a message explaining the results of the request. This command is
only available to DSU devices.
Send Message
Choose Send Message from the Commands pull-down menu to send a message
of up to 40 characters to the selected device’s front panel display. Type the
message in the Send field, then choose Send. This command is only available to
DSU devices.
