Reports
10-3
6700-A2-GY31-70
July 1999
5. After being created, the report appears in the lower section of the window.
The Execute and Print buttons become active. To print the report, choose
Print. The Print button becomes inactive (gray).

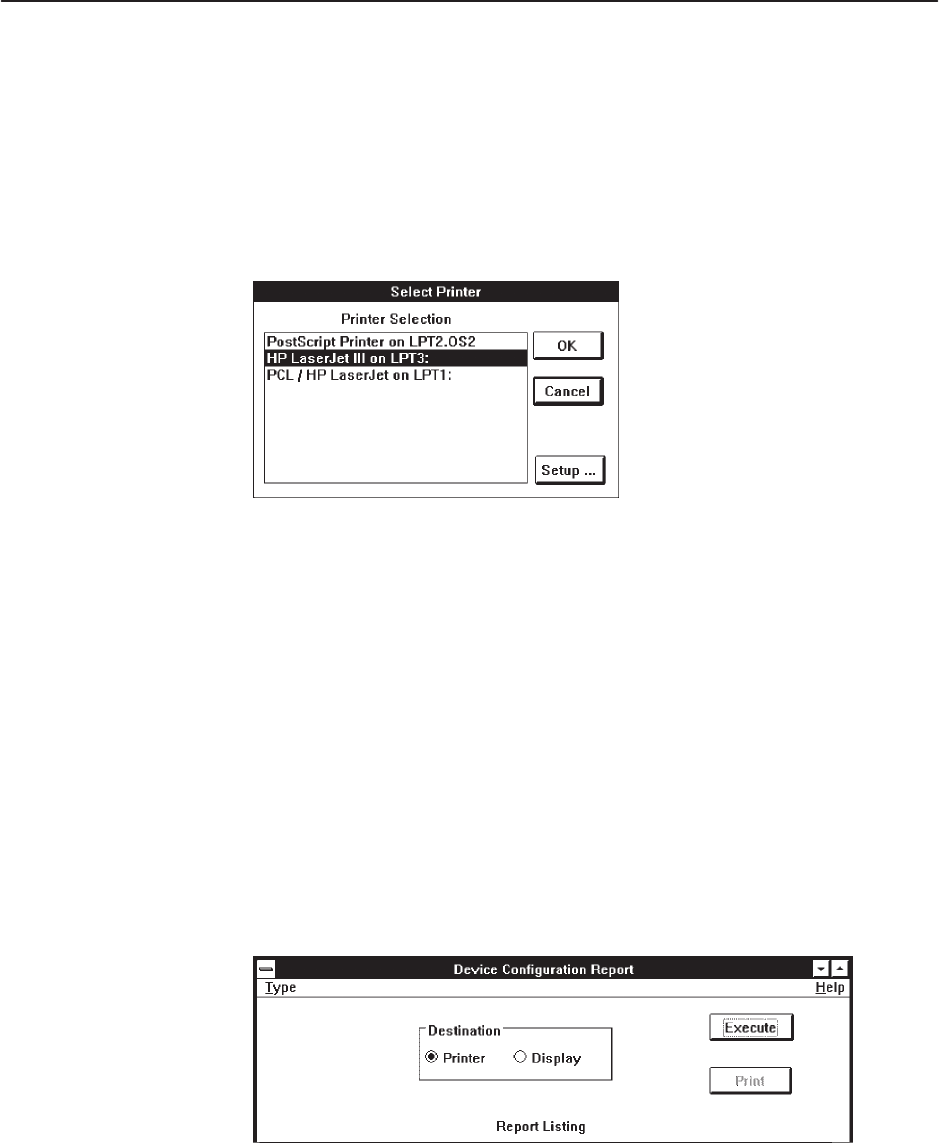

If NMS is configured to use the Select Printer dialog box for report output, the
Select Printer dialog box appears. Select one of the printers in the Printer
Selection list and choose OK. See
Setting Up the System Printer
in
Chapter 4,
Configuration,
for additional information on printers.
While the report is printing, the NMS Print Task dialog box appears showing the
window title and report name.
Printing Reports
You can print a report on the NMS selected printer without first displaying it
online.
Procedure
1. Choose a report from the Reports pull-down menu.
2. Set all the required choices. Refer to the individual report sections in this
chapter for a detailed requirements description.
3. Select Printer from within the Destination box.
