NetWork Adr: The device’s network address. The field format is as follows:
Control Device – Format: c/l Example: 1/2
where: c = 1 (the device’s control channel)
l = a local control device address between 1 and 256.
Tributary Device – Format: c/l/t Example: 1/2/1
where: c = 1 (the device’s control channel)
l = a local control device address between 1 and 256.
t = 1 (tributary address)
Carrier Name: The carrier’s name where the device is installed.
Slot: The slot number where the device is installed.
Cabinet Name: The cabinet’s name where the device is installed.
Site Name: The site’s name where the device is installed/located.
Contact Names: The name of the persons to contact at the site.
Comments: Any comments entered during configuration.

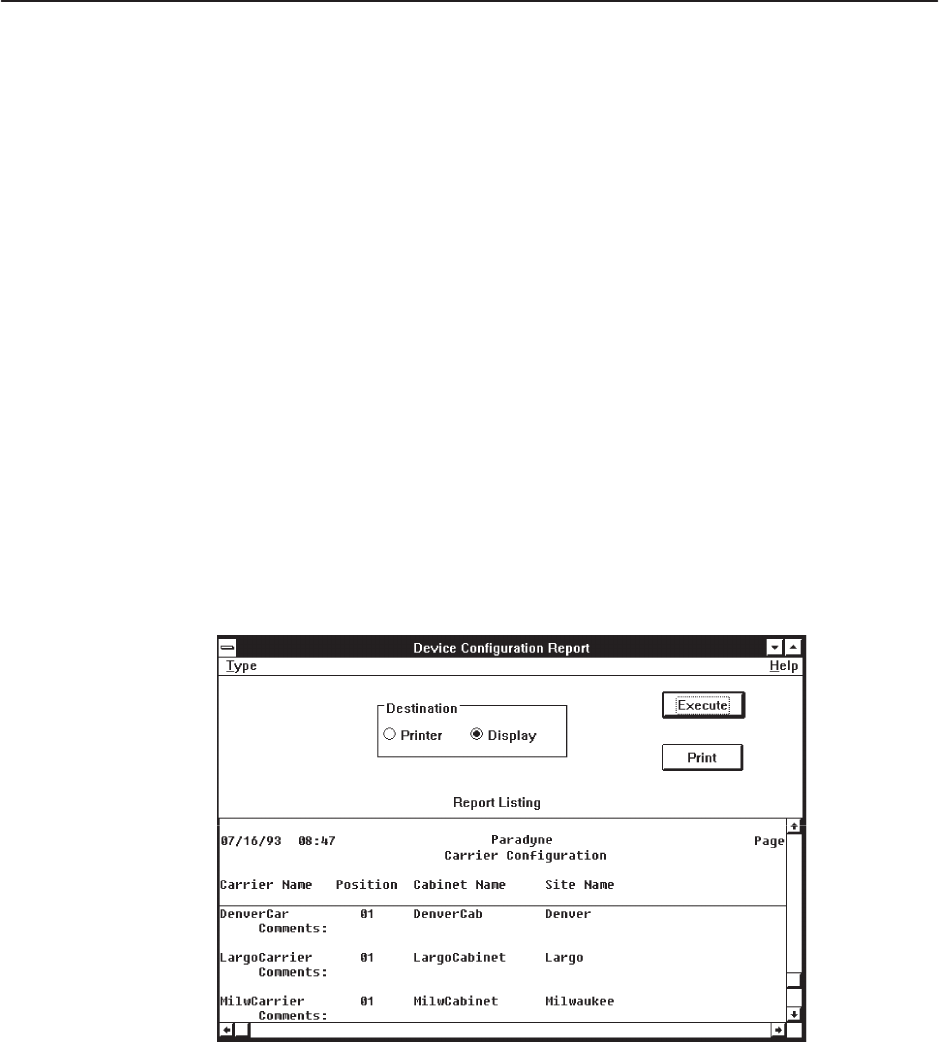

The following is an example of a carrier section on the Device Configuration
Report:
The fields for the carrier section of the Device Configuration Report are described
as follows.
Carrier Name: The carrier’s name.
Position: The carrier’s position number within the cabinet.
Cabinet Name: The cabinet’s name where the carrier is located.
Site Name: The site’s name where the carrier is located.
Comments: Any comments entered during configuration.
