Platform/Network Performance Monitor
12-5
6700-A2-GY31-70
July 1999
Use the Reset button to reset the statistics counters for the chosen interface.
Use the Interfaces button at the bottom of the TCP/IP Network Statistics window

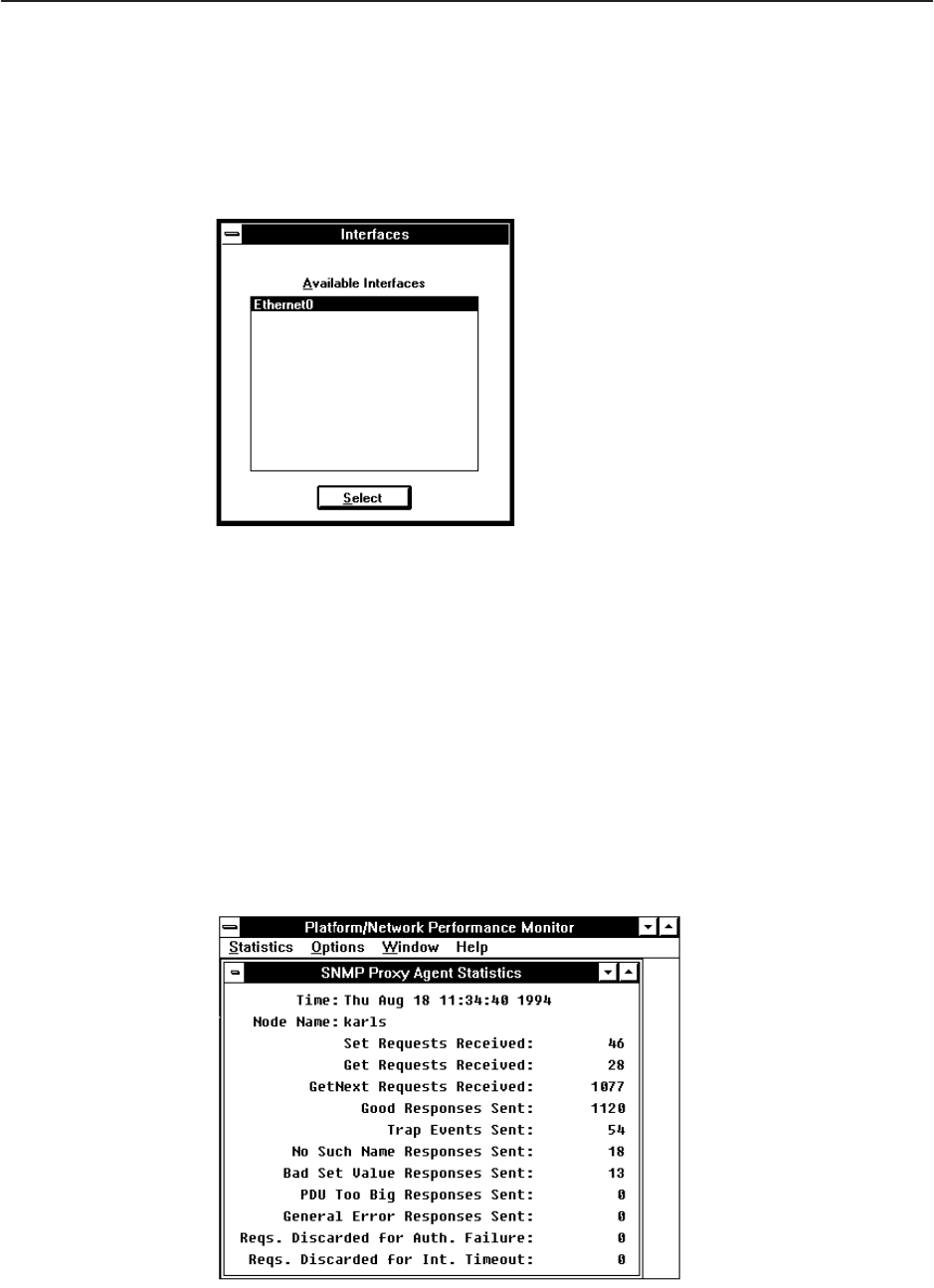

to select the interface to monitor. When you press Interfaces, the Interfaces
dialog box appears.
Highlight the desired interface, then press Select.
NOTE:
The Interfaces button is enabled only when TCP/IP interfaces are available.
Viewing SNMP Proxy Agent Statistics
Use SNMP Proxy Agent to view SNMP Proxy Agent statistics. To access this
command, choose Network from the Statistics pull-down menu, then SNMP
Proxy Agent from the Network pull-down menu. The SNMP Proxy Agent Statistics
window appears.
