Platform/Network Performance Monitor
12-8
6700-A2-GY31-70
July 1999

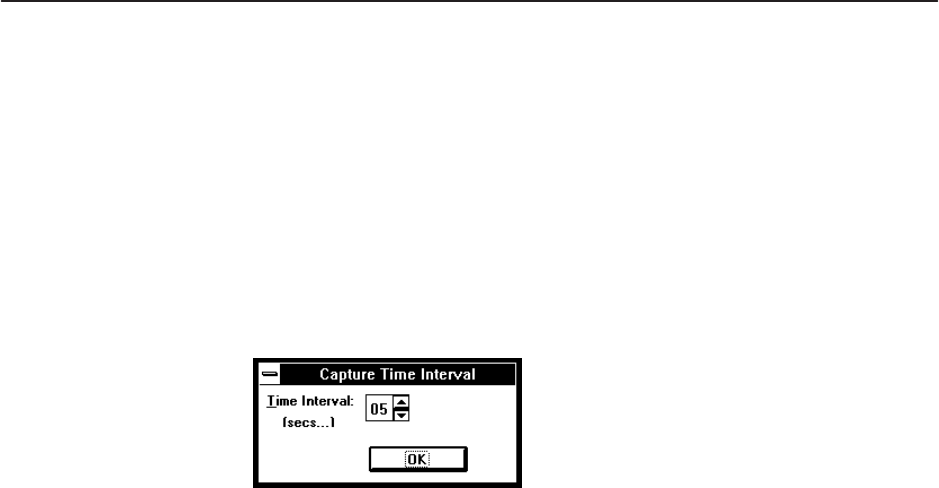

Setting the Capture Time Interval
Use Capture Time Interval to set the time interval between updates to displayed
statistics.
Procedure
1. Choose Options from the Main Menu.
2. Choose Capture Time Interval from the Options pull-down menu. The
Capture Time Interval dialog box appears.
3. Select the desired time range from 5–60 seconds (default is 30 seconds).
4. Press OK.
Enabling or Disabling Database Timing
Use Database Timing to toggle the current database timing state. This option is
available for the single-user NMS and when the selected node is a Multiuser
Feature server.
NOTE:
Database Timing must be enabled for the Average Database Transaction
Time appearing on the Platform Resources/Performance Measurements to
display anything other than 0.
