NMS Windows Conventions
A-12
6700-A2-GY31-70July 1999
Facility Information Dialog Box
The Facility Information dialog box contains the data shown in Figure A-8.

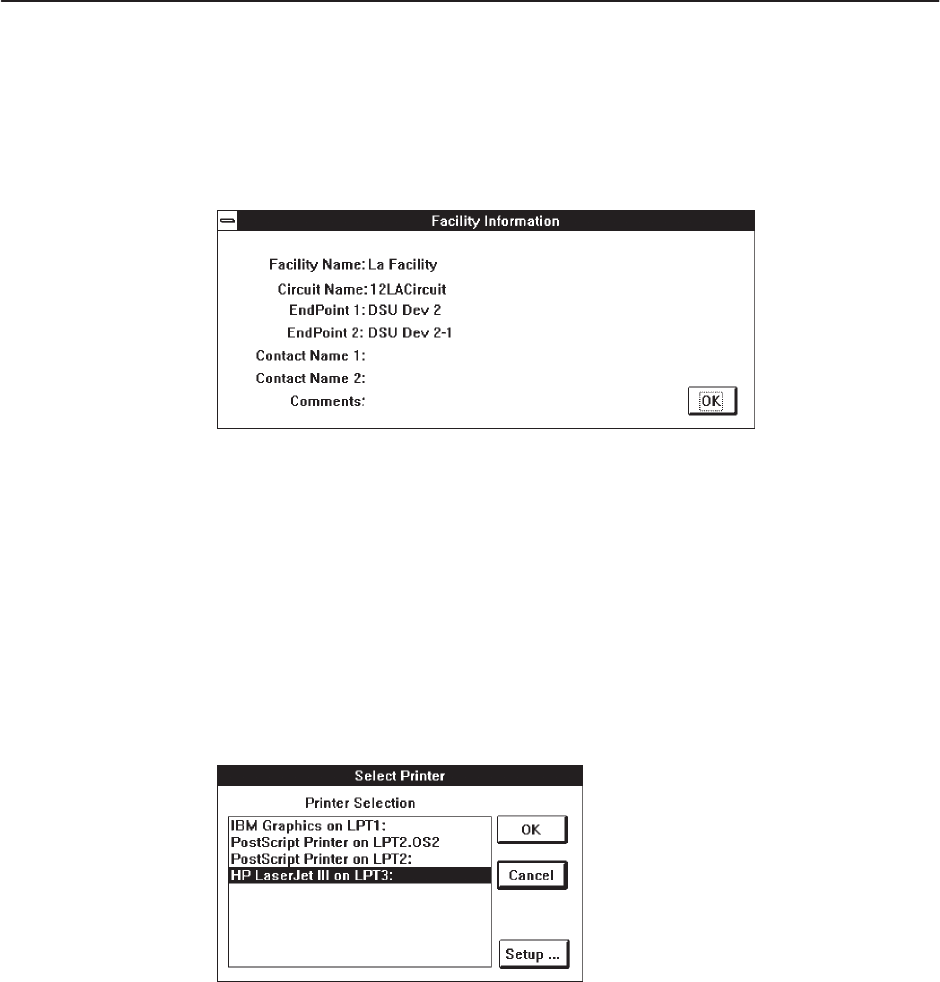

Figure A-8. Example Facility Information Dialog Box
Printer Selection
If NMS is configured to use the Select Printer dialog box for report output, the
Select Printer dialog box (Figure A-9) appears. Select one of the printers in the
Printer Selection list and choose OK.
Figure A-9. Example Printer Selection Dialog Box
If NMS is not configured to use the Select Printer dialog box, any requests for
printouts will be routed to the default printer.
See
Setting Up the System Printer
in Chapter 4,
Configuration
, for additional
information on printers and the Select Printer dialog box.
This dialog box displays all configured printers assigned to a port or to FILE.
Select any printer in the list, then choose OK to print at the specified printer. The
Cancel button cancels the print request. The Setup... button uses the printer
setup dialog provided by the printer’s Microsoft Windows driver.
