Cabling Requirements
C
Cabling Requirements Overview
This appendix provides detailed information on NMS cabling requirements.
Supplied Adapter

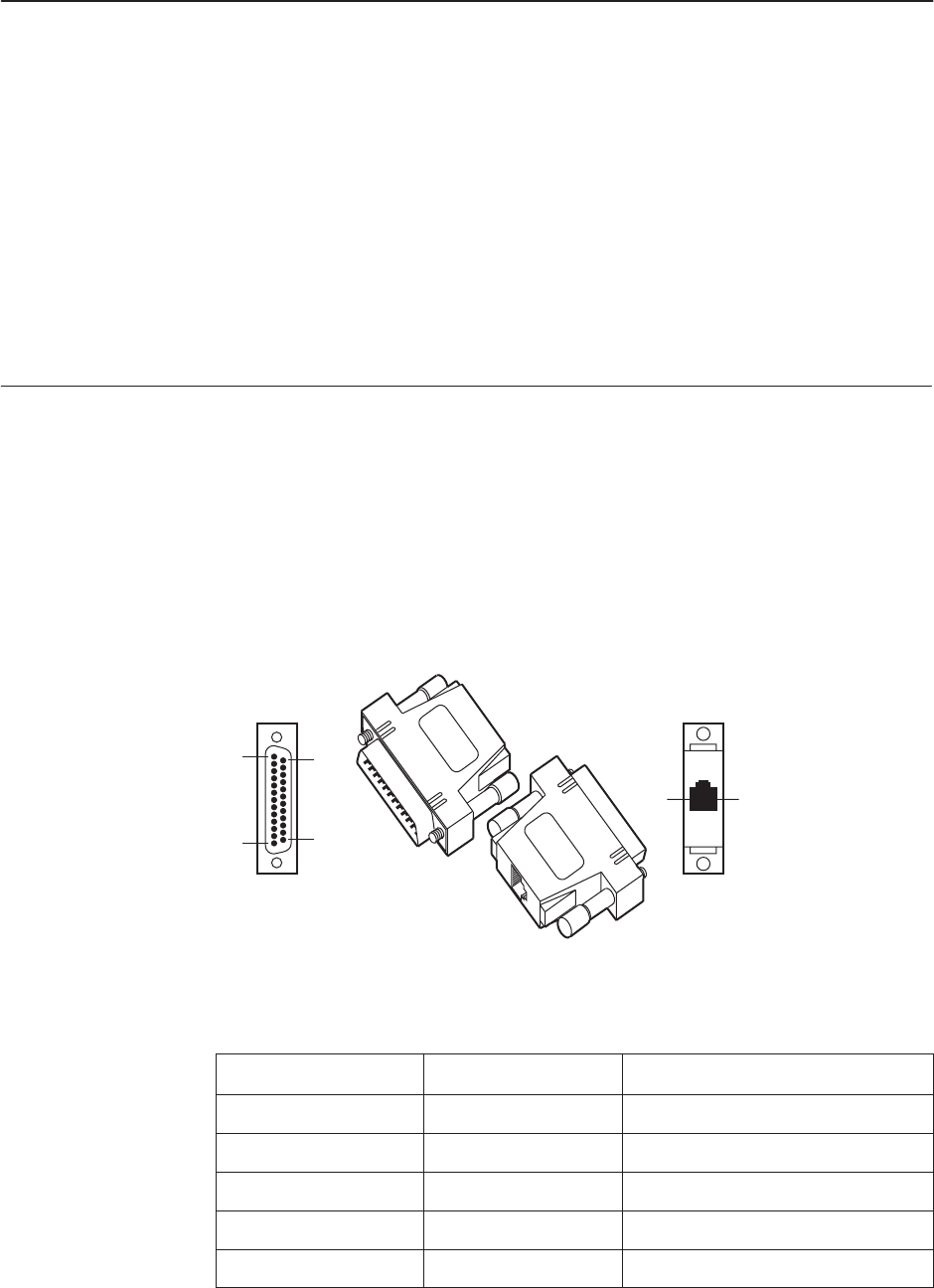

Supplied with the system is a DB-25-S socket to 6-pin modular plug adapter,
Part Number 002-0025-0031. The adapter is wired as indicated in Table C-1.
1
13
14
25
61
98-15818
Table C-1. DB-25 to 6-Pin Adapter Wiring
Signal Name
DB-25-S Pin Number 6-Pin Modular Jack Pin Number
Transmit Data (TD) 2 5
Receive Data (RD) 3 3
Request To Send (RTS) 4 1
Clear To Send (CTS) 5 2
Signal Ground (SG) 7 4
