Configuration
4-12
6700-A2-GY31-70
July 1999
Completing the Device Configuration Input Form
Device Configuration commands allow you to create, change, delete, or print
device configuration information used to specify a device’s location. To create or
change a device configuration, complete the Device Configuration input form by
entering information in the appropriate fields.
Use the Action commands (Table 4-1) to complete configuration. You can also
place the device on the Network Map using the Action menu. (See Chapter 5,
Displays
, for information on how to place a device using the Network Map
display.)
Procedure
1. Select Config from the Main Menu, or select the Device Configuration icon in
the toolbar and go on to Step 4.
2. Choose Network from the Config menu.
3. Choose Devices from the Network cascading menu.
4. Choose Profiles from the Devices cascading menu. The Device Configuration
input form appears. The number of fields that display on the input form
depends on the device model you select.

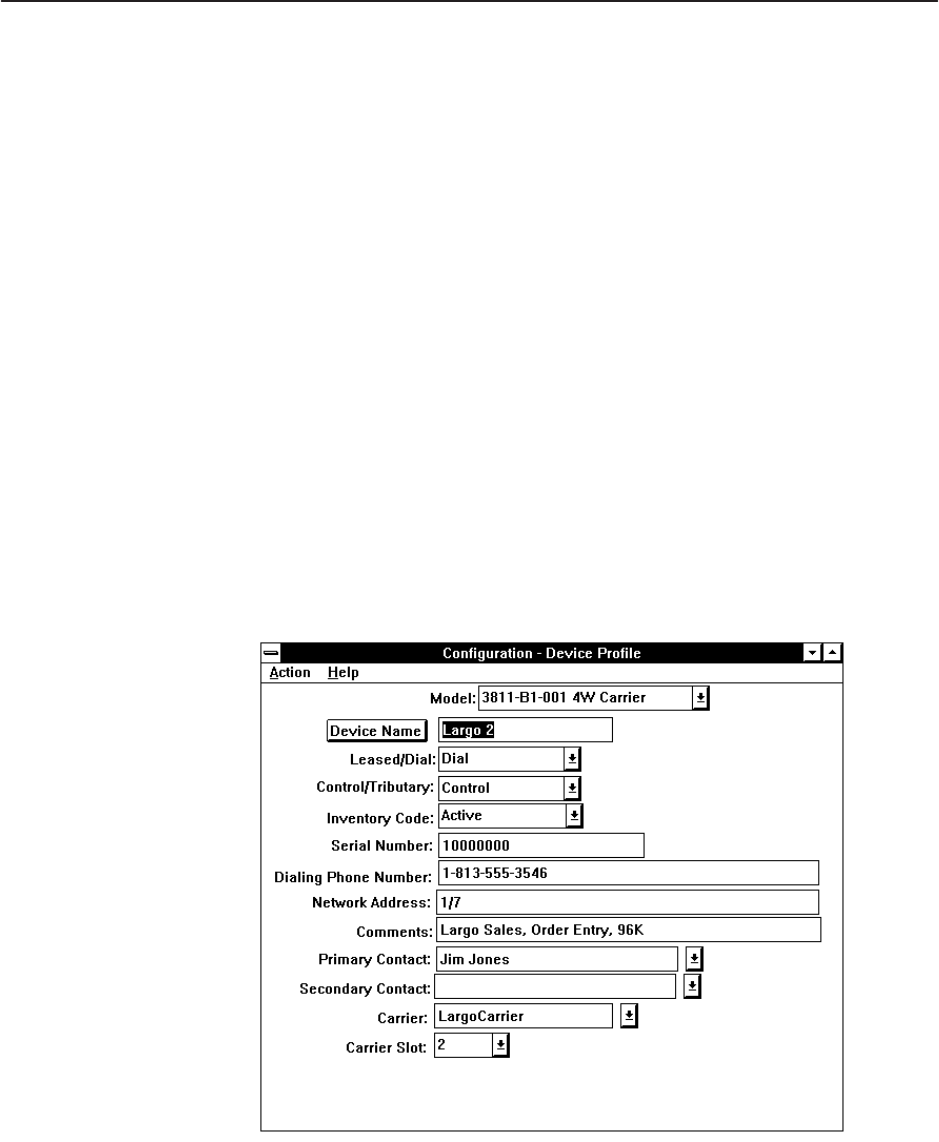

Example of a Device Configuration Input Form for Model 3811-B1-001
