Carrier: Required only if the device is a carrier card. Each carrier name
(maximum 15 characters) must be unique to all other network element
names. A carrier can hold up to 16 devices. If a new carrier name is entered,
NMS prompts inquiring if the new name may be added to the NMS database.
Example: TPA-001
Carrier Slot: Required only if the device is a carrier card. The carrier slot is a
number (1 through 16, left to right) that specifies the device’s position in the
carrier.
If the selected device is a DSU or APL with a TDM or multipoint feature
installed, an additional carrier slot will be reserved.
Position: Required only if the device is a Model 3821
Plus modem. Select the
current position of the 3821 Plus modem: A (top), B (middle), or C (bottom).
6. If this is a carrier device, choose Save from the Action menu (see Table 4-1)
to save the device information.
If this is a standalone device, choose either Save from the action menu to
save the device information, or Save and Place from the Action menu to

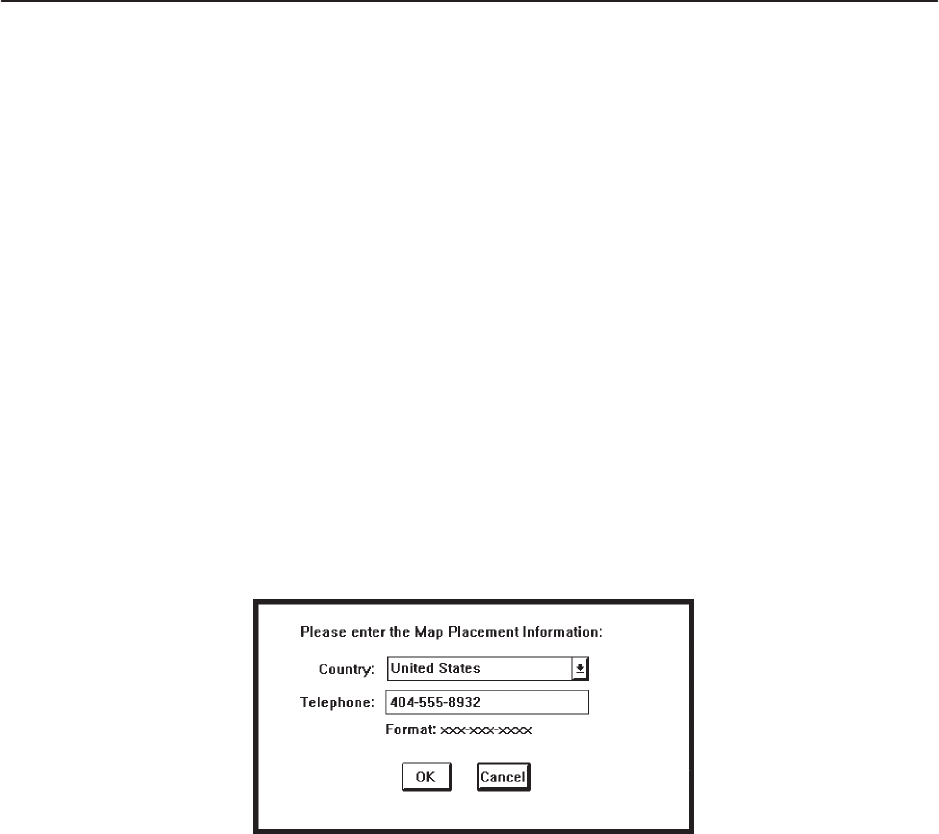

place the device on the Network Map. If you choose Save and Place, a dialog
box appears asking for the following map placement information.
Country: Use the selection list button to select the country where the device
is located.
Telephone: Enter the telephone number, including the area code, if the
device is in the United States or Canada. Enter the city code if the device is
not in the United States or Canada.
Choose OK to place the device on the Network Map.
NOTE:
To delete a device defined as an endpoint at a facility, you must first remove
the device from the facility.
