Configuration
4-19
6700-A2-GY31-70
July 1999
Procedure
1. Select Config from the Main Menu, or select the Device Options icon in the
toolbar and go on to Step 5.
2. Choose Network from the Config menu.
3. Choose Devices from the Network cascading menu.
4. Choose Device Options from the Devices cascading menu.
5. Choose Action from the Device Options menu.

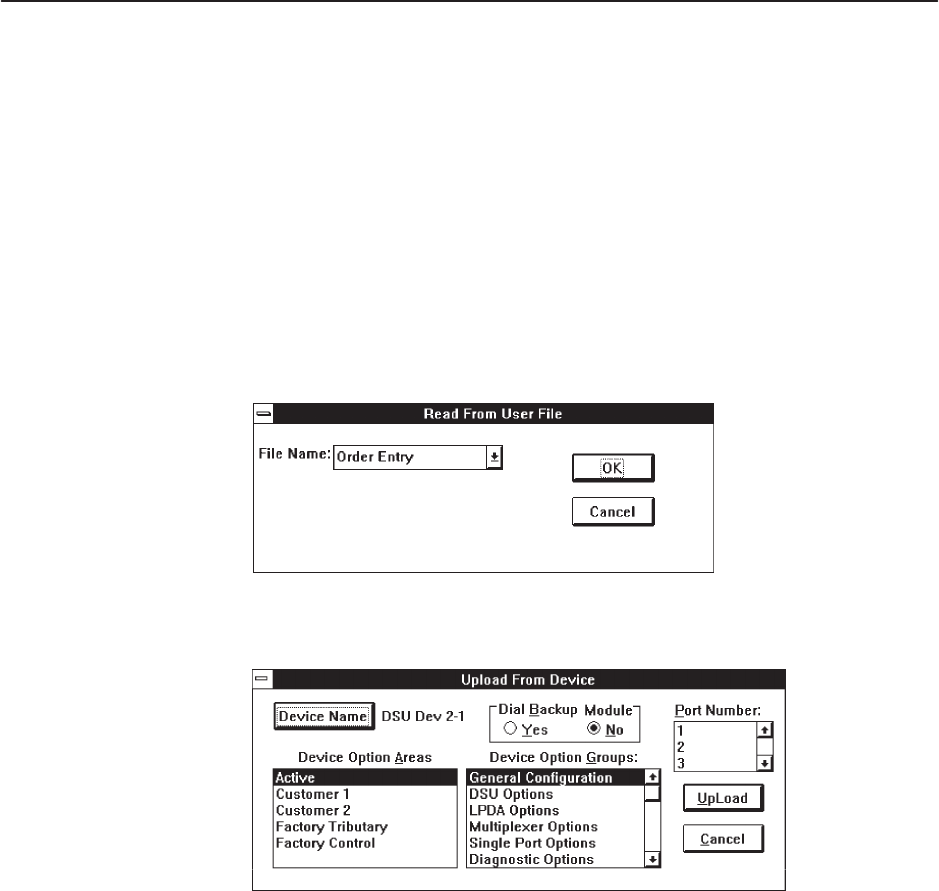

6. From the Action menu, choose Read From User File if you want to display
the device options from a selected User File.
7. From the Action menu, choose Upload From Device if you want to display the
device options from a specific device and start the Upload function.
Device Name: Select Device Name to access the Selection Browser and
select a device. Refer to
Device Selection
in Appendix A,
NMS Windows
Conventions
, for additional information on using the Selection Browser.
Dial Backup Module: For DSU devices, select Yes to upload device options
from the DBM or select No to upload device options from the DSU.
Device Option Areas: Select a Device Option Area. A Device Option Area is
a complete set of device options that are stored within a device, for example,
Active Operating or Async Dial.
Device Option Groups: Select a Device Option Group. A Device Option
Group is a set of similar device options that are stored within a group, for
example, DSU Options or DTE Interface.
Port Number: For DSUs or APLs with either TDM, MCMP, or MSD installed,
select the port number for which the device options will appear if the group
references port information.
