Configuration
4-20
6700-A2-GY31-70
July 1999
File Name: Use the selection list button on the Read From User File window
to access an existing file name. A file name identifies the User File you
created that holds a specific configuration of device options.
8. Choose OK to start the read from user file function and to display the Device
Options Configuration input form. Or, choose Cancel to cancel the function.

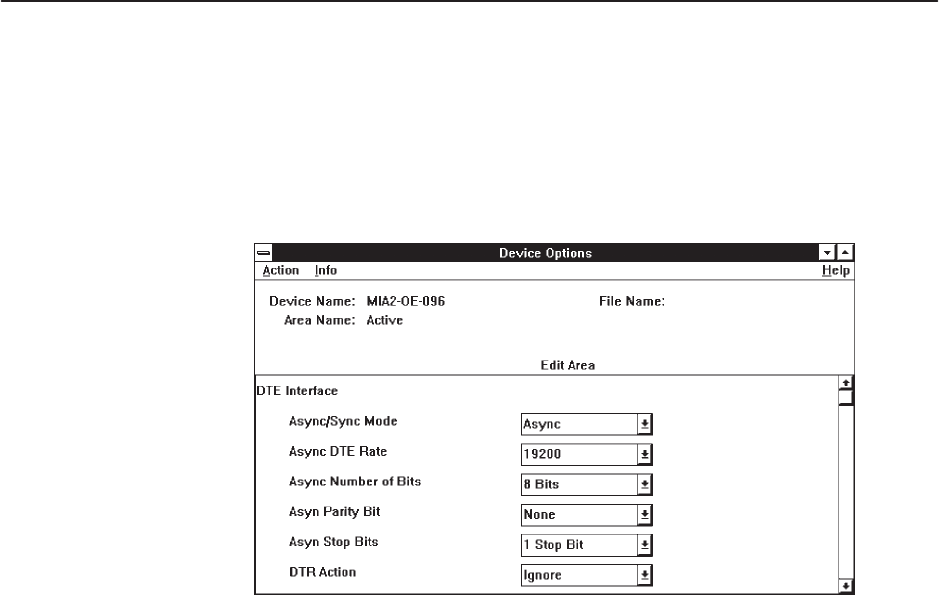

The Device Options Configuration input form displays the following fields:
Device Name: A label (maximum 15 characters) that is unique to the
network.
Area Name: A label (maximum 15 characters) used to identify a
configuration area or set of device options stored within the device.
Examples: Active Operating, Async Dial.
File Name: A label (maximum 15 characters) that identifies the User File you
created to save a specific configuration of device options.
9. Using the selection list button to the right of the field, select device options
that display on the Device Options Configuration input form.
10. Choose one of the following commands from the Action menu (Table 4-2):
— Write To User File
— Delete User File
— Download To Device
— Reset Device Options
— Compare Device Options (see
Comparing Device Options
on page 4-21)
— Print
NOTE:
If you change device options via the front panel, you will receive an error
message warning you that the option(s) you changed could be invalid.
