Configuration
4-25
6700-A2-GY31-70
July 1999
10. Choose OK to apply these changes to the Tributary Devices list in the Device
Poll List window. The Device Poll List Selection dialog box closes.
11. Choose Activate to change all selected devices in the Tributary Device list
box to an active status upon download. Choose Skip to change all selected
devices in the Tributary Device list box to a skip status upon download.
12. Choose Action from the Device Poll List input form menu bar.
13. Choose Download to download the currently displayed poll list if you
constructed one.
14. Choose Non-Configured to display all nonconfigured device addresses
received from the last Acquire or Display request.
15. Choose Print to print the Device Poll List Report.
Adding Nonconfigured Devices to the Device Profile

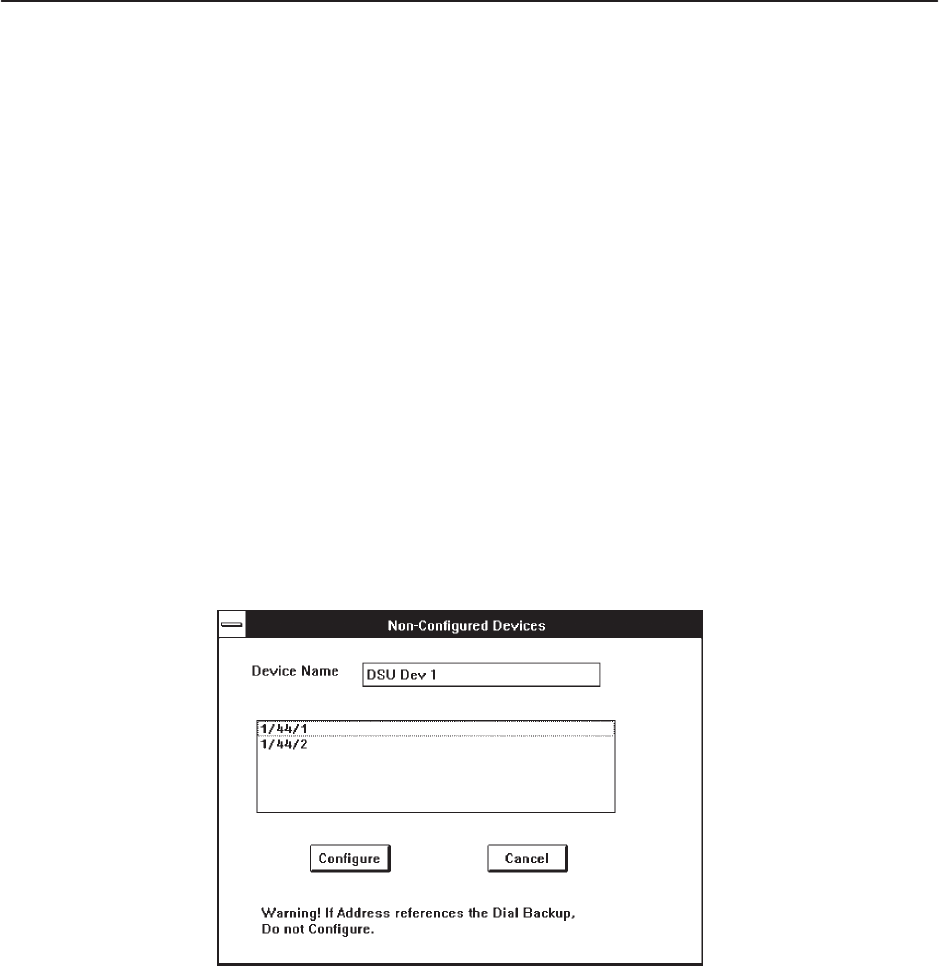

All nonconfigured tributary device addresses received from the last Acquire or
Display request appear in the Non-Configured Devices window. These devices
can be added to the NMS device profile database.
Procedure
1. Select a device address by either:
— Using the selection list button to the right of the field to access existing
field entries, or
— Typing the information in the Device Name field.
If the device is a DSU with a DBM attached, the next address will be for
the DBM. Any DBM address that appears should not be selected for
configuration. NMS automatically configures the DBM when the DSU is
configured.
