Configuration
4-26
6700-A2-GY31-70
July 1999

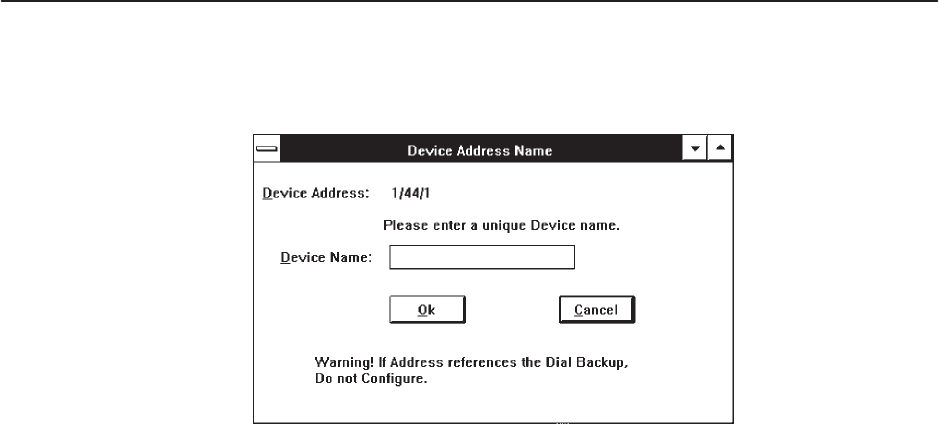

2. Choose Configure. The Device Address Name dialog box appears.
3. Type a unique device name in the Device Name field for the address shown.
4. Choose OK. The device is added to the device profile. The device address is
removed from the list shown in the Non-Configured Devices window.
NOTE:
It is recommended that you complete the device profile with other pertinent
information such as site, contacts, etc.
Configuring a Device Phone Directory
Phone Directory commands allow you to create, change, or delete telephone
numbers stored in a 2400 Series device, 3800 Series device, a 3900 Series
device, a 3600 Series DSU with the dial backup feature, or a 3611 Series DBM-V
or DBM-S device. You can also upload telephone numbers from a device’s Phone
Directory or download telephone numbers to a device’s Phone Directory.
The maximum number of telephone numbers that can be stored depends upon
the device model. A 2400 Series device can store up to 20 telephone numbers.
All other device types can store up to 10 telephone numbers.
Procedure
1. Select Config from the Main Menu.
2. Choose Network from the Config menu.
3. Choose Devices from the Network cascading menu.
