Configuration
4-35
6700-A2-GY31-70
July 1999
Configuring Hunt Groups
The Hunt Group command allows you to configure the amount of time NMS
uses to determine when a busy connect alarm should be created.
Procedure
1. Select Config from the Main Menu.
2. Choose Alerts and Events from the Config menu.

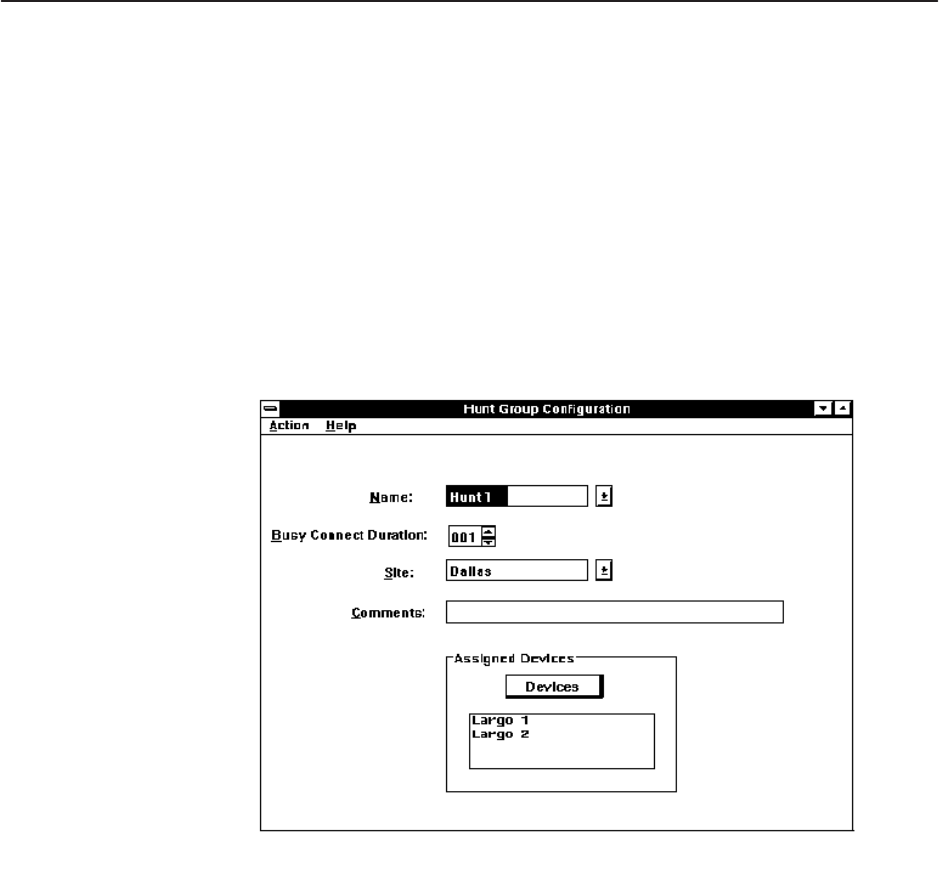

3. Choose Hunt Group from the Alerts menu. The Hunt Group Configuration
input form appears.
4. Enter the following information in the fields on the Hunt Group Configuration
input form by either:
— Using the selection list button to the right of the field to access existing
field entries, or
— Typing the information in the field, then pressing Tab.
Name: A name that is unique to the network (maximum 15 characters).
NOTE:
To change the hunt group name, use the Change Name command on
the Action menu.
Busy Connect Duration: Amount of time (0–60 minutes) NMS uses to
determine when a busy connect alarm should be created. This alarm is
created when all devices assigned to the hunt group are connected for this
length of time. Set this field to 0 to disable the busy connect alarm.
Site: Optional site name (maximum 15 characters).
