User`s guide

Configuration
4-36
6700-A2-GY31-70
July 1999
Comments: Optional field for additional information (maximum
40 characters).
Assigned Devices: Select the Devices button to access the Device
Selection List dialog box and build a list of devices for this hunt group. A
device can only be assigned to one hunt group. Refer to
Device Selection in
Appendix A, NMS Windows Conventions , for additional information on using
the Selection Browser.
5. Either choose Save from the Action menu (see Table 4-1) or go to Step 6 to
save and place the site on the Network Map.
6. Choose Save and Place from the Action menu to place the site on the
Network Map.

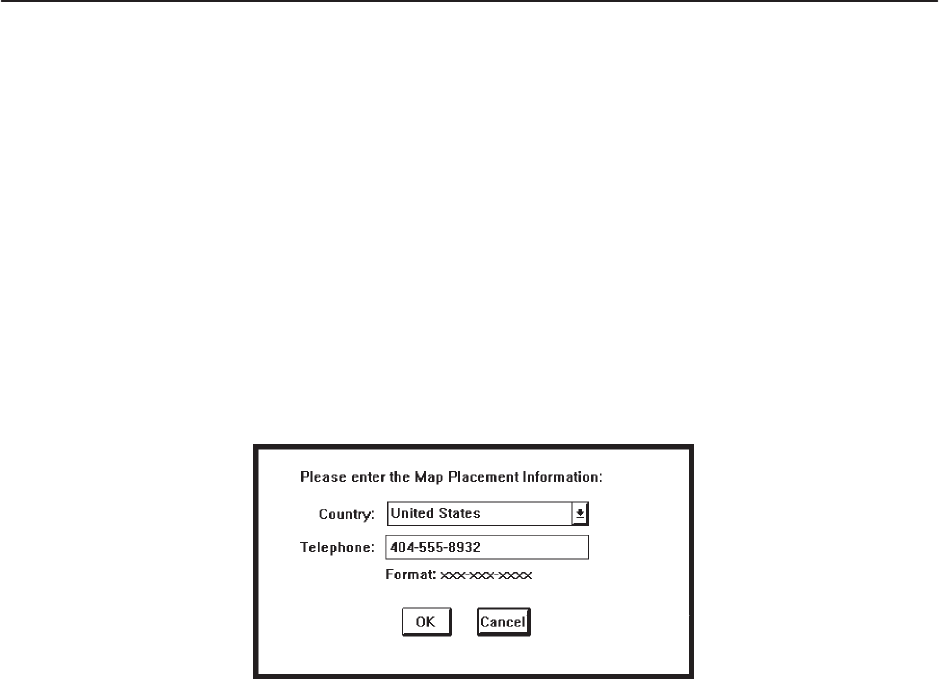

A dialog box appears asking for the following map placement information.
Country: Use the selection list button to select the country where the site is
located.
Telephone: Enter the telephone number, including the area code, if the site
is in the United States or Canada (maximum 20 characters). Enter the city
code if the site is not in the United States or Canada.
7. Choose OK to place the site on the Network Map.
NOTE:
If a hunt group is not assigned to a site or has not been placed using the
Save and Place command, you can place the hunt group using the
Unplaced command.
Configuring Event Controls
To configure event controls, refer to the COMSPHERE 6700 Series Network
Management System Security Manager Feature Supplement .
Configuring the Alert Beeper
The Alert Beeper command allows you to define a beeper number that will be
used when a specific alert is created. A beeper number can be assigned to both
devices and alerts. If a beeper number is assigned to a device, the beeper will
only be called when an alert for that device is in effect.
