Configuration
4-37
6700-A2-GY31-70
July 1999
Procedure
1. Select Config from the Main Menu.
2. Choose Alerts and Events from the Config menu.

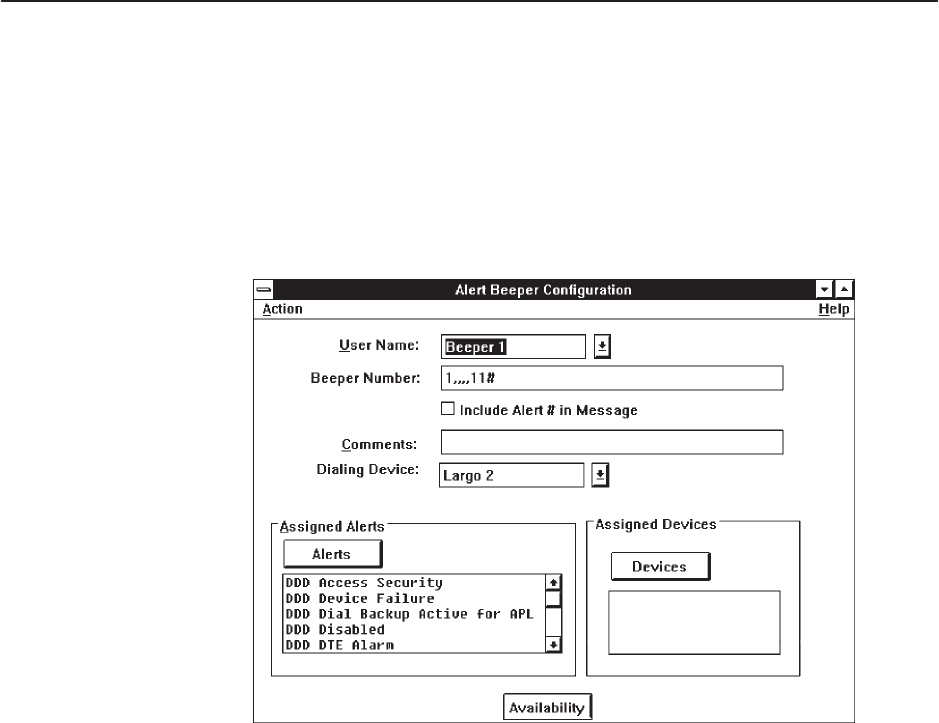

3. Choose Alert Beeper from the Alerts and Events menu. The Alert Beeper
Configuration input form appears.
4. Enter the following information in the fields on the Alert Beeper Configuration
input form by either:
— Using the selection list button to the right of the field to access existing
field entries, or
— Typing the information in the field, then pressing Tab.
User Name: A label (maximum 15 characters) that is unique to the network
and is used to identify an alert beeper number user.
Beeper Number: A required field for the telephone number that will be used
to dial the beeper when assigned alerts have been created (maximum 40
characters). If the number includes a message that will be sent after the call
has been established, you must enter the number of pauses (,) needed prior
to sending the message. Valid characters are 0 to 9; *, #, A, B, C, D (DTMF
digits); P (pulse dialing); T (tone dialing); , (pause for time specified in the
Pause Time device option); W or + (wait for dial tone); R (reverse dial);
@ (wait for quiet answer); ! (hook flash); ; (return to Command mode);
space, comma, (, ), – (characters for readability).
Example: 9W555-1212,,,,1234
Include Alert # in Message: Check this box to append a 2-digit alert number
to the beeper number entered. See
Alert Numbers
on page 4-39 for a list of
alert numbers with descriptions and priority.
