Configuration
4-41
6700-A2-GY31-70
July 1999
Configuring VF Threshold
The Threshold command allows you to upload/download VF threshold values to
an APL device, and read/write these same values to a file. The threshold values
determine when a VF threshold has reached an unacceptable level to cause an
alert.
Procedure
1. Select Config from the Main Menu.
2. Choose Alerts and Events from the Config menu.
3. Choose Thresholds from the Alerts and Events menu. The Device Model
drop-down list box appears.

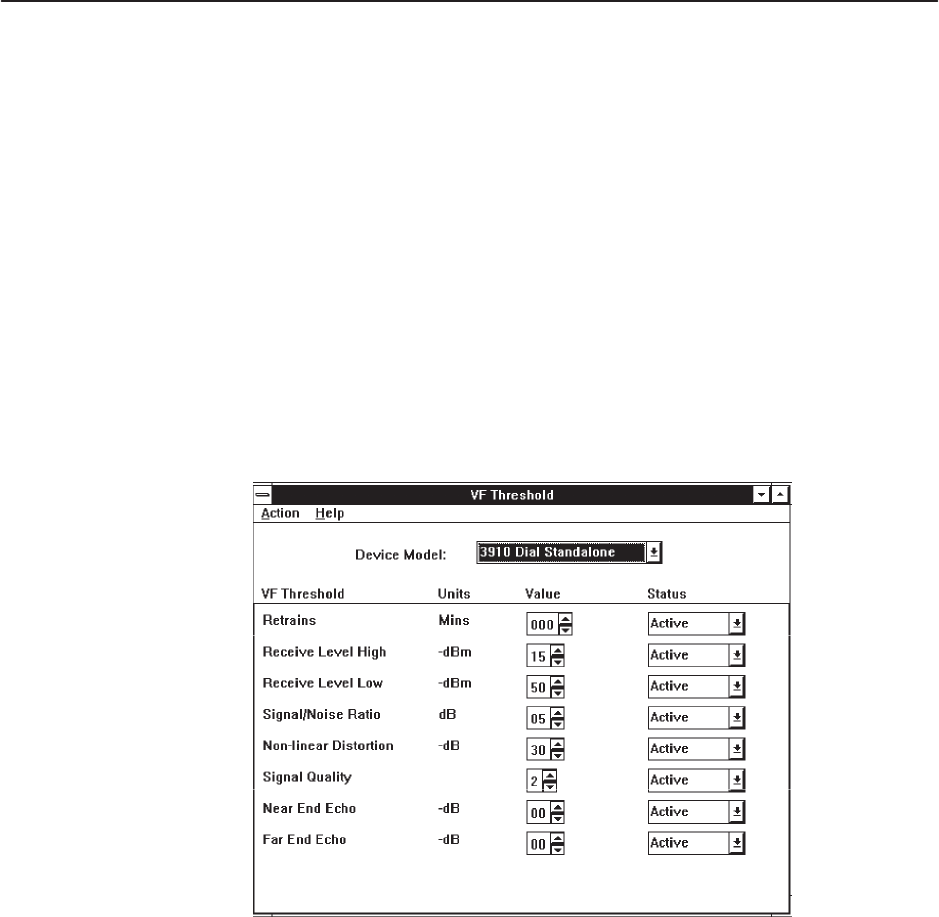

4. Select the desired device model. The VF Threshold input form appears.
5. Select a value in the following two fields for each VF threshold:
Value: Select a value from the numeric range field to represent the lowest
acceptable threshold value. Refer to
Range Field
in Appendix A,
NMS
Windows Conventions,
for details on using this field.
Status: The current status of the particular threshold entry. Select:
— Active if the threshold value will be used to determine a VF threshold
alert, or
— Disable if the threshold value will not be used to determine a VF
threshold alert due to the device’s configuration, or
— InActive if the threshold value will not be used to determine a VF
threshold alert, or
— NoSupport if the device does not support this threshold entry
