Configuration
4-53
6700-A2-GY31-70
July 1999
NOTE:
Not all monochrome printers interpret colors the same way. Printing color
windows using a black and white printer may result in black text on a
black background or white text on a white background. If this occurs, try
changing the background colors to a light color (white) with everything
contained in them dark.
8. Choose one of two commands from the Action menu:
— Save to store your color selections to the network database, or
— Reset to restore the color selections to the NMS default colors.
Configuring the NMS Communications Environment
Use the Communications commands to define the port, protocol, speed, control
channel address, and time out value NMS uses to communicate with network
devices.
Procedure
1. Select Config from the Main Menu.
2. Choose System from the Config menu.
3. Choose Communications from the System menu. The Communications
Configuration input form appears.

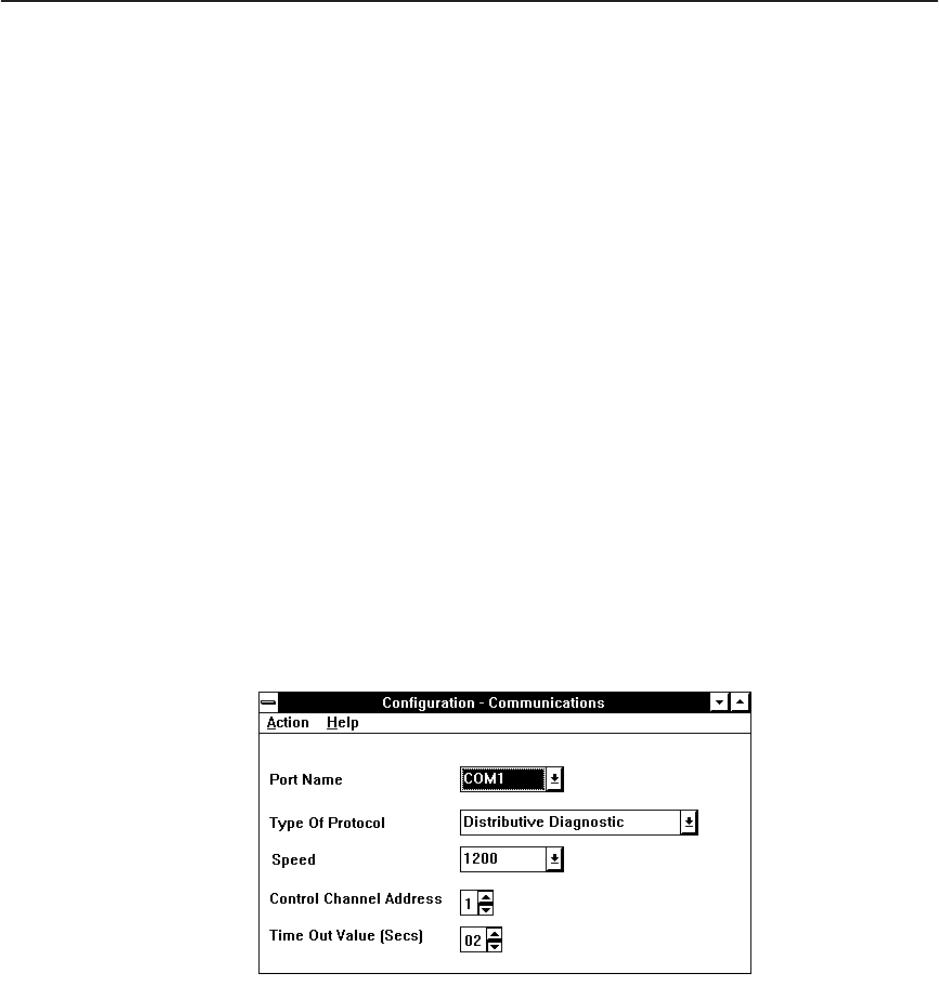

The following fields are on the Communications Configuration input form:
Port Name: The serial port name (COM1—COM10) used by NMS.
4. Using the Port Name field, select the port name from the NMS. Do not select
a port used by other equipment attached to the PC, such as a serial mouse.
Type of Protocol: The type of protocol to be used by NMS. Valid entries are
as follows:
— Diagnostic. This ADp protocol is used to perform network management
functions and diagnostics.
— Distributive Diagnostic. This ADp protocol is used to perform network
management functions and diagnostics on all active devices and on all
distributive devices when the distributive poll time has elapsed.
