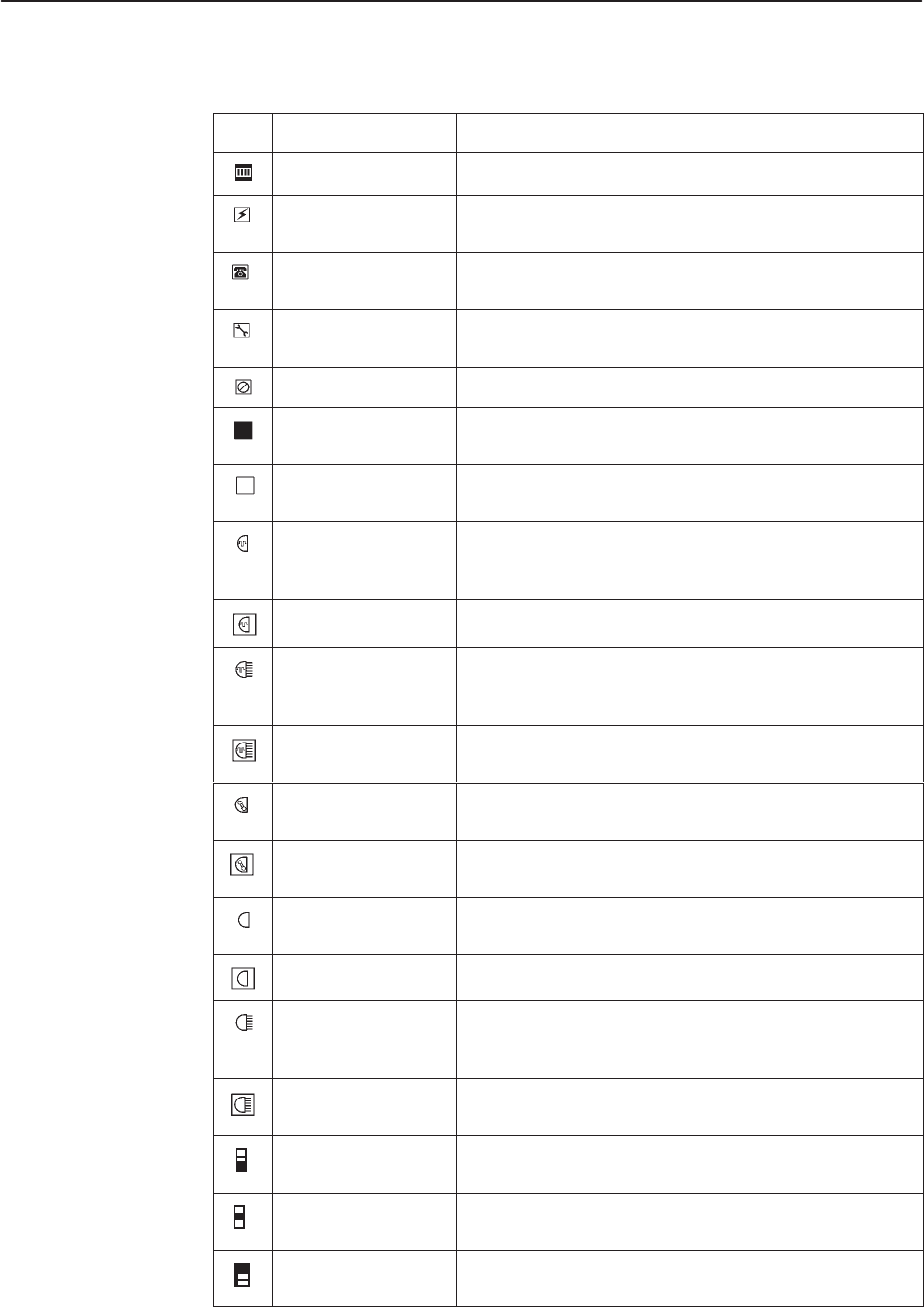

Table 5-1. Display Icons (2 of 2)
Icon DescriptionName
Carrier, selected Represents a selected carrier.
Leased Line Mode Represents a device connected to a leased line in the
Carrier Monitor.
Dial Line Mode Represents a device connected to a dial line or a DBM
installed on a DSU in the Carrier Monitor.
Service Line Mode Represents a device connected to a service line in the
Carrier Monitor.
Busied Out Represents a busied out device in the Carrier Monitor.
Unsupported Device Represents an unsupported device in the Geographic
Map and Network Hierarchy.
Unsupported Device,
selected
Represents a selected unsupported device.
DSU Device Represents a DSU device with no features in the
Geographic Map, Network Hierarchy and Connectivity
windows.
DSU Device selected Represents a selected DSU device.
DSU TDM/MCMP
Device
Represents a DSU device with either the TDM or MCMP
feature in the Geographic Map, Network Hierarchy and
Connectivity windows.
DSU TDM/MCMP
Device, selected
Represents a selected DSU device with the TDM or
MCMP feature.
DBM-V/S Device Represents a DBM-V or DBM-S device in the Geographic
Map, Network Hierarchy and Connectivity windows.
DBM-V/S Device,
selected
Represents a selected DBM-V or DBM-S device.
APL Device Represents an APL device in the Geographic Map,
Network Hierarchy, and Connectivity windows.
APL Device selected Represents a selected APL device.
APL TDM/MSD
Device
Represents an APL device with either the TDM or MSD
feature in the Geographic Map, Network Hierarchy and
Connectivity windows.
APL TDM/MSD
Device, selected
Represents a selected APL device with the TDM or MSD
feature.
Triple modem
device, C selected
Represents which modem (A, B or C) in a
Model 3821
Plus device is selected in the carrier.
Triple modem
device, B selected
Represents which modem (A, B or C) in a
Model 3821 Plus device is selected in the carrier.
Triple modem
device, A selected
Represents which modem (A, B or C) in a
Model 3821 Plus device is selected in the carrier.
